Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector.
TERMINAL CONTINUITY CHART
Condition
Connector
Terminal
Continuity
Key inserted
M64
3 - 4
Yes
Key withdrawn
No

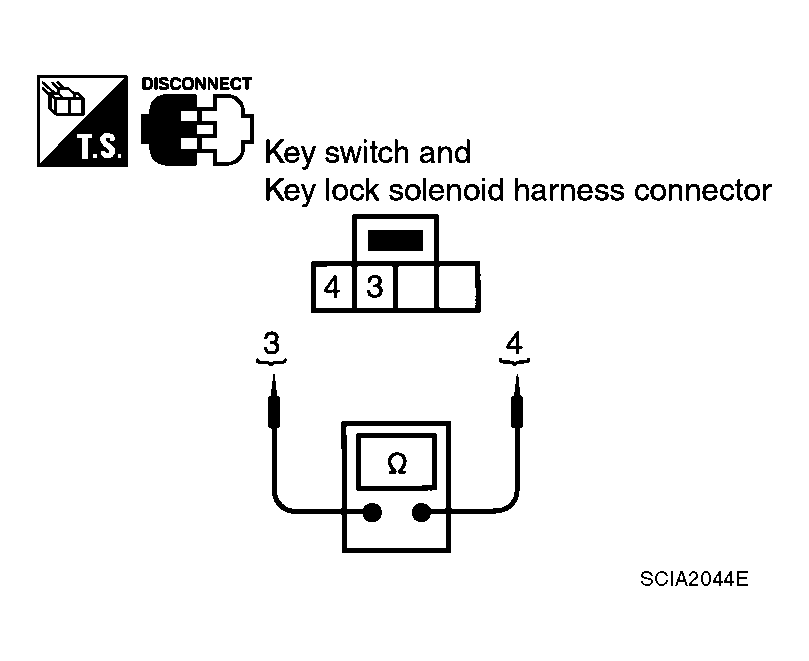

Fig 1: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid Harness Connector
