Shift Lock Solenoid

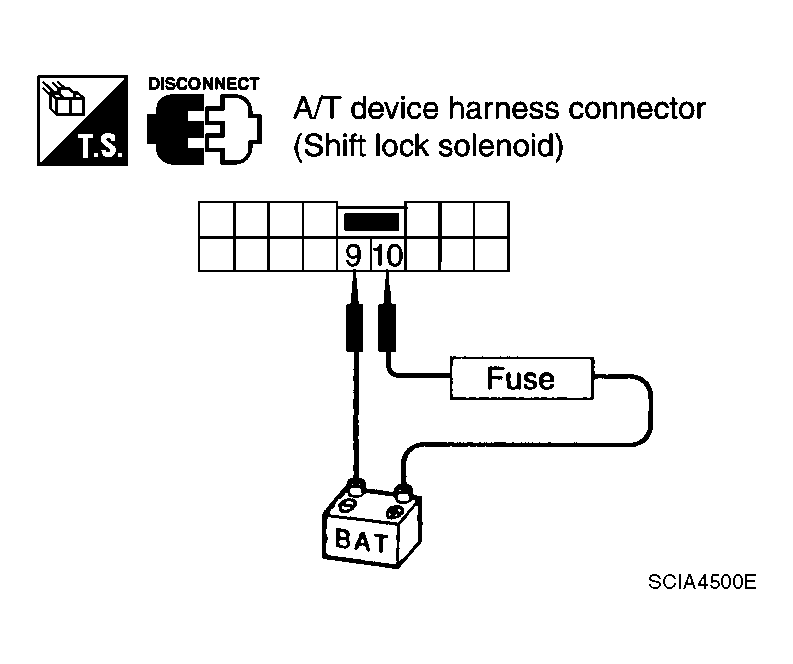

- Check operation by applying battery voltage to the A/T device harness connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.
SHIFT LOCK SOLENOID CHART
| Connector |
Terminal |
| M97 |
10 (Battery voltage) - 9 (Ground) |
