Stop Lamp Switch

Check continuity between terminals of the stop lamp switch harness connector.

TERMINAL CONTINUITY CHART

Condition	Connector	Terminal	Continuity
When brake pedal is depressed	M402	3 - 4	Yes
When brake pedal is released	M402	3 - 4	No

Check stop lamp switch after adjusting brake pedal. Refer to "BRAKE PEDAL "

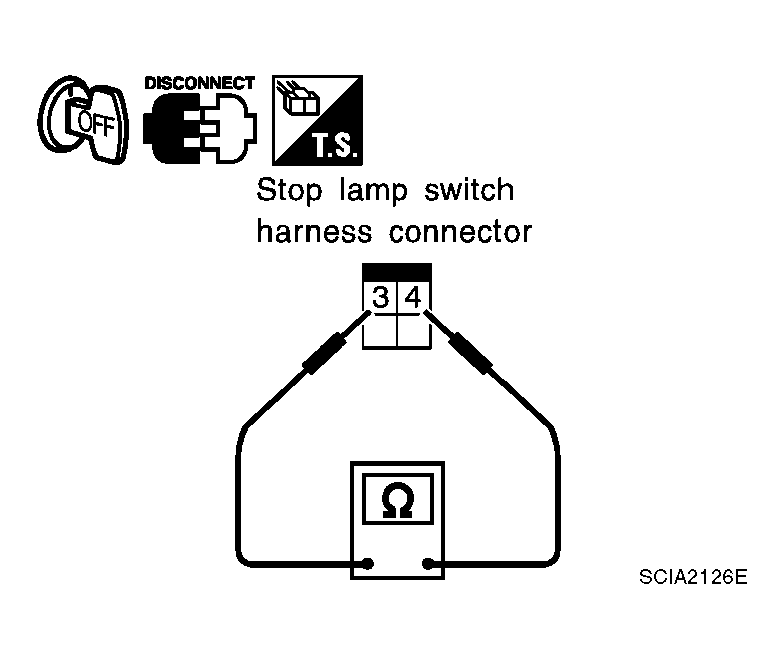

Fig 1: Checking Continuity Between Terminals Of Stop Lamp Switch Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
