Manual Mode Switch

Check continuity between terminals.

TERMINAL CONTINUITY CHART

Item	Position	Connector No.	Terminal No. (Unit side)	Continuity
Manual mode select switch	Auto	M97	4 - 5	Yes
Manual mode select switch	Manual		1 - 4
Manual mode position select switch	Up		3 - 4
Manual mode position select switch	Down		2 - 4

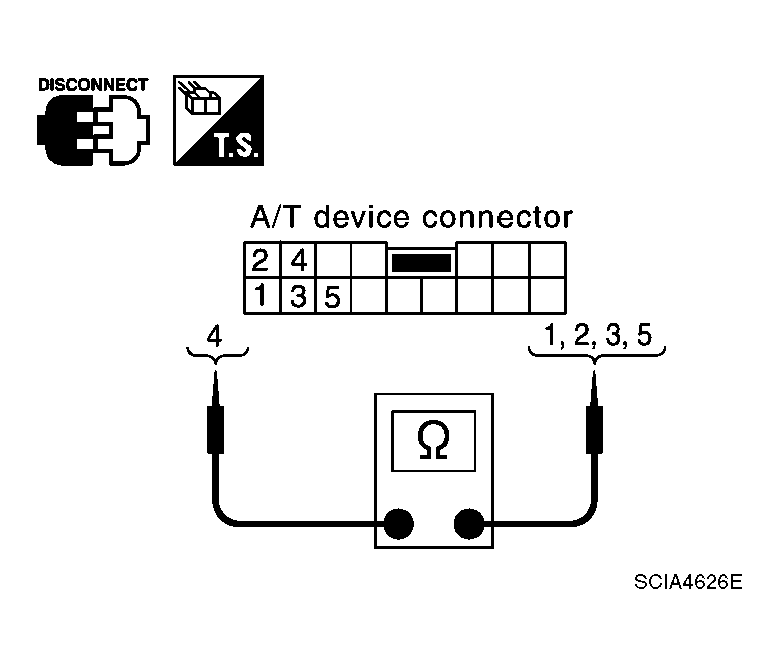

Fig 1: Checking Continuity Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
