Parking Components: Components

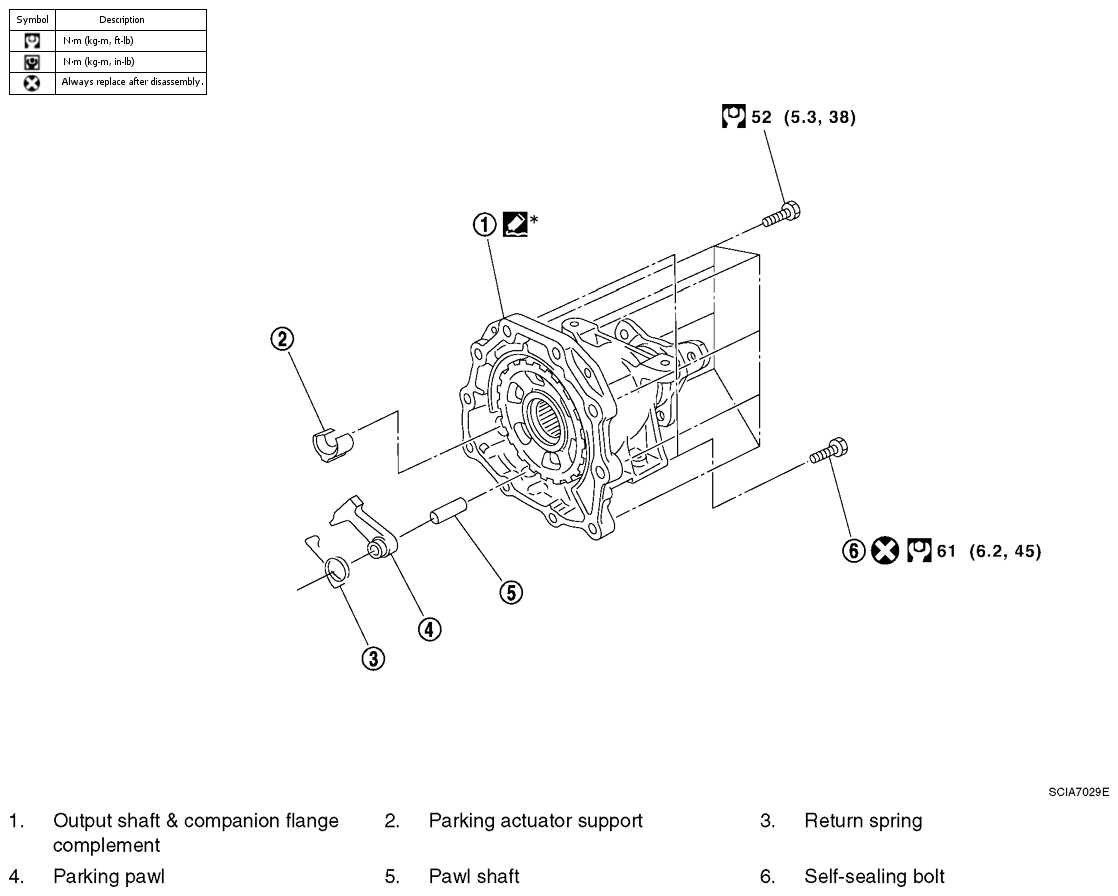

Fig 1: Parking Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GLASSES, WINDOW SYSTEM & MIRRORS to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following for others.

*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
