Revolution Sensor: Installation

CAUTION: After completing installation, check A/T fluid leakage, A/T fluid level and A/T position. Refer to "CHECKING A/T FLUID ", "CHECKING OF A/T POSITION ".

Install revolution sensor in transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.
: 5.8 N.m (0.59 kg-m, 51 in-lb)

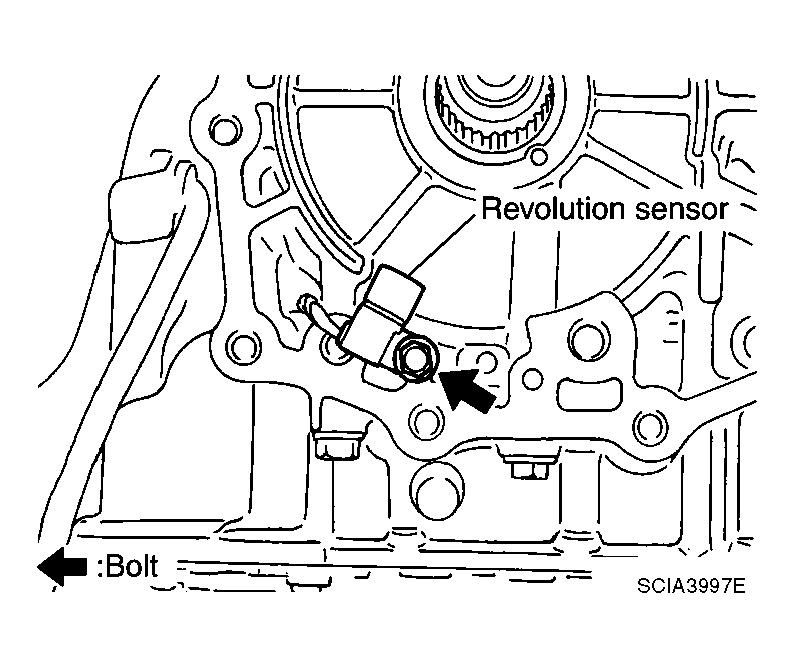

Fig 1: Identifying Revolution Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector.

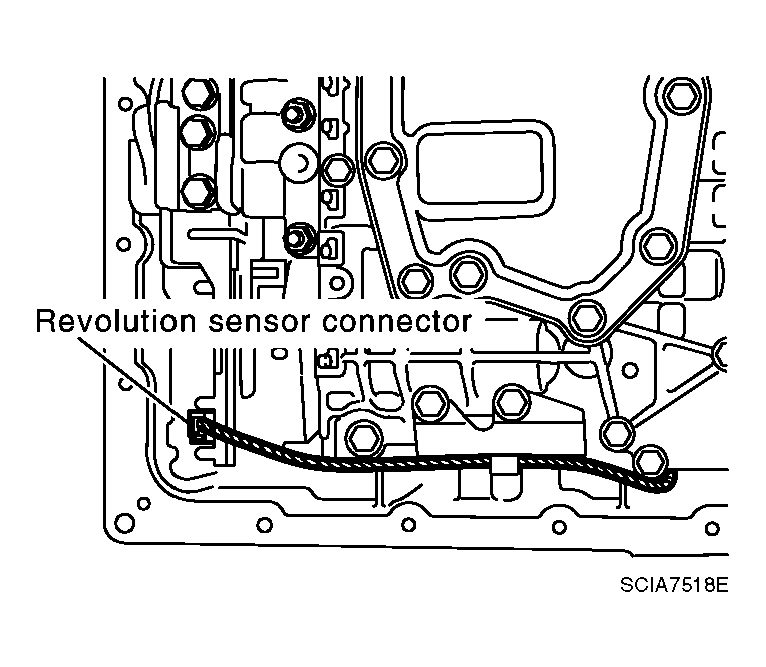

Fig 2: Connecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten revolution sensor harness with clip.

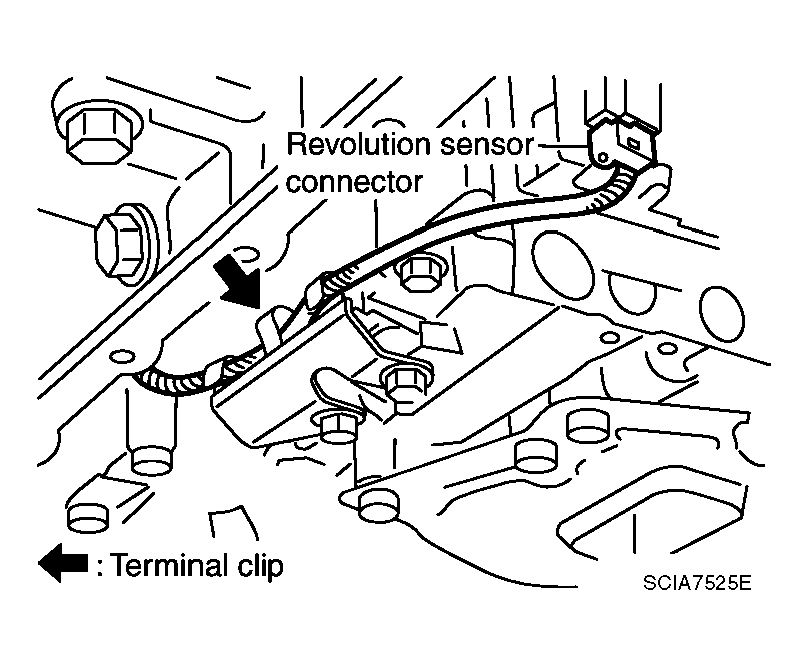

Fig 3: Fastening Revolution Sensor Harness With Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

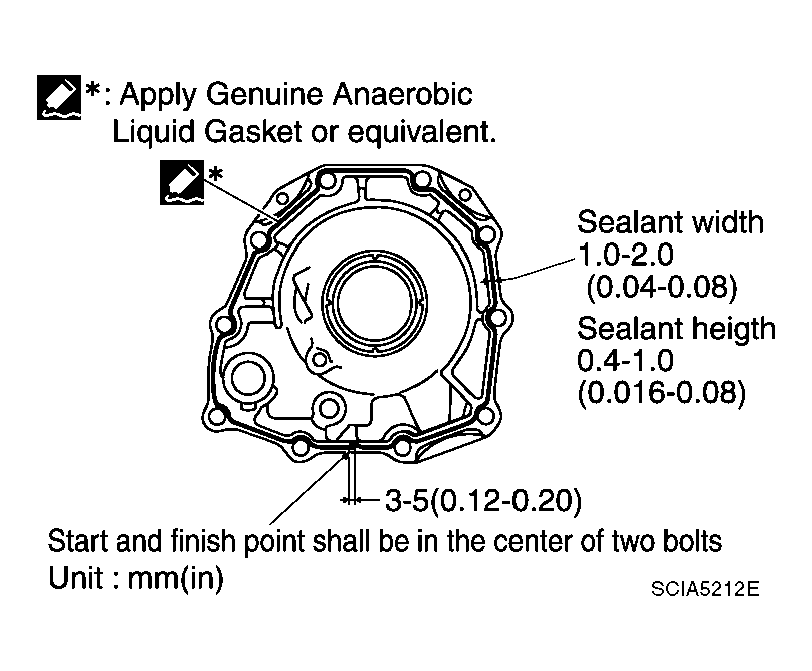

Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to output shaft & companion flange complement as shown in the figure.
CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and output shaft & companion flange complement mounting surfaces.

Fig 4: Applying Sealant
Courtesy of NISSAN MOTOR CO., U.S.A.
Install output shaft & companion flange complement in A/T assembly.
CAUTION: Insert the tip of parking rod between the parking actuator support when assembling the output shaft companion flange complement.

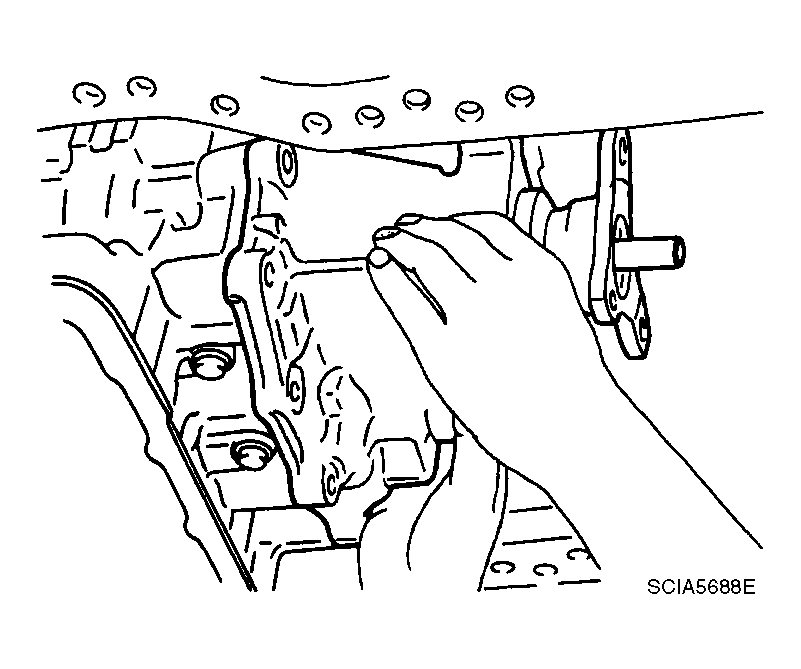

Fig 5: Identifying Output Shaft & Companion Flange Complement
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten output shaft & companion flange complement mounting bolts (1) to specified torque.
: Bolt (10)

CAUTION: Do not reuse self-sealing bolts (2).

Output shaft & companion flange complement mounting bolt:

: 52 N.m (5.3 Kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N.m (6.2 Kg-m, 45 ft-lb)

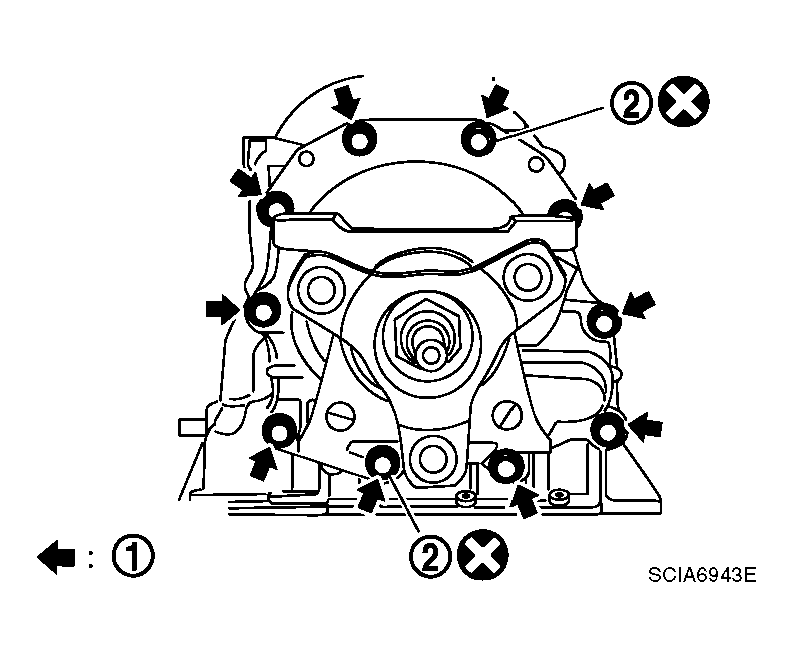

Fig 6: Tightening Output Shaft & Companion Flange Complement Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

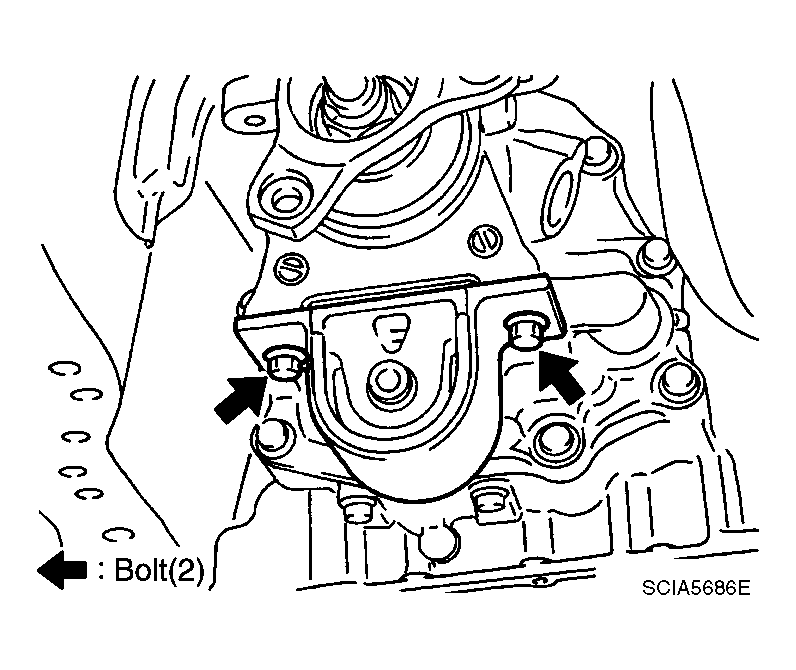

Fig 7: Identifying Rear Engine Mounting Insulator
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear member. Refer to "REMOVAL AND INSTALLATION ".

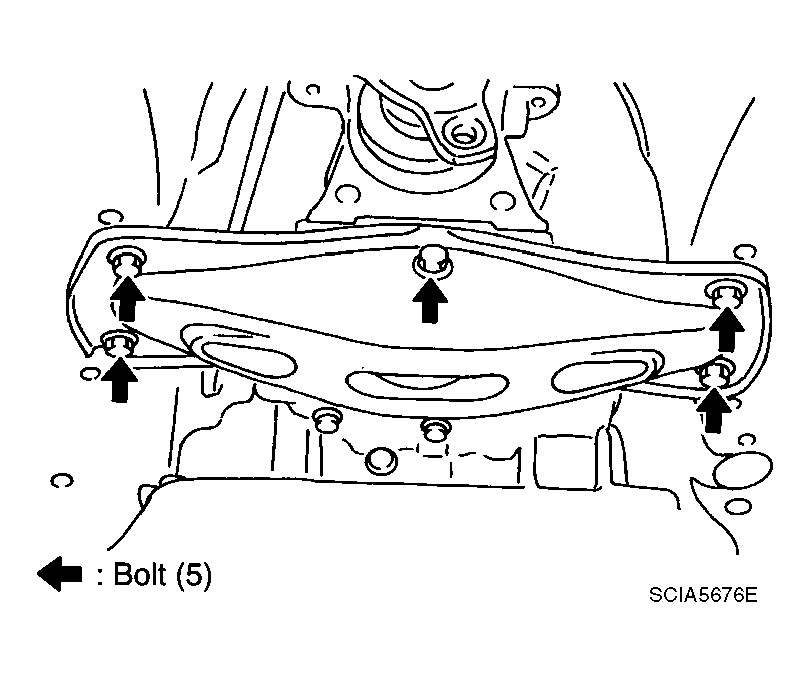

Fig 8: Identifying Rear Member
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case.
1. Install oil pan gasket to oil pan.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
  - Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
2. Install oil pan (with oil pan gasket) to transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown in the figure.
  - Be careful not to pinch harnesses.
  - Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

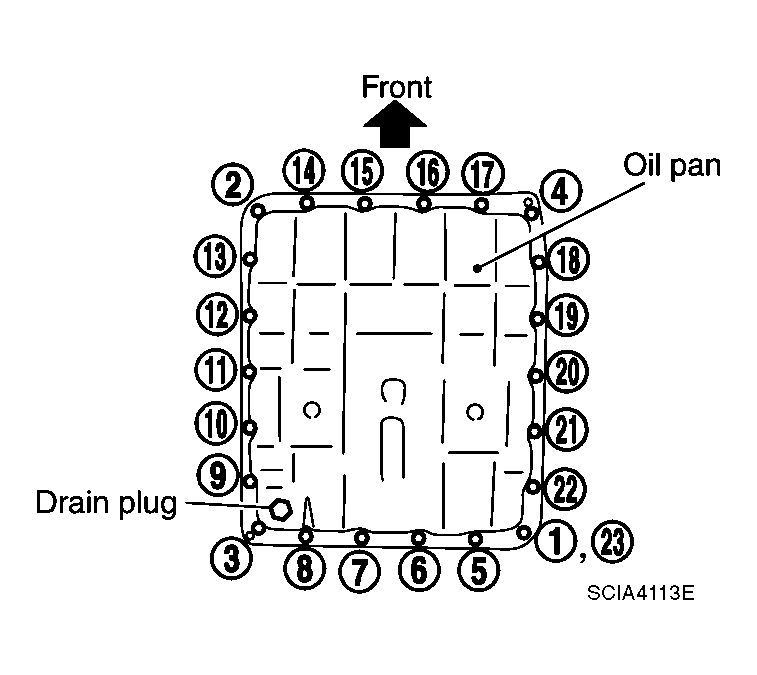

    Fig 9: Identifying Oil Pan Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
  CAUTION: Do not reuse oil pan mounting bolts.

  : 7.9 N.m (0.81 kg-m, 70 in-lb)
Install drain plug to oil pan.
CAUTION: Do not reuse drain plug gasket.

: 34 N.m (3.5 kg-m, 25 ft-lb)

Fig 10: Identifying Drain Plug
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
Connect the battery cable to the negative terminal.
