Adjustment of A/T Position

  1. Loosen nut of pivot pin.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in "P" position direction), tighten nut to specified torque.

    : 26 N.m (2.7 kg-m, 19 ft-lb)

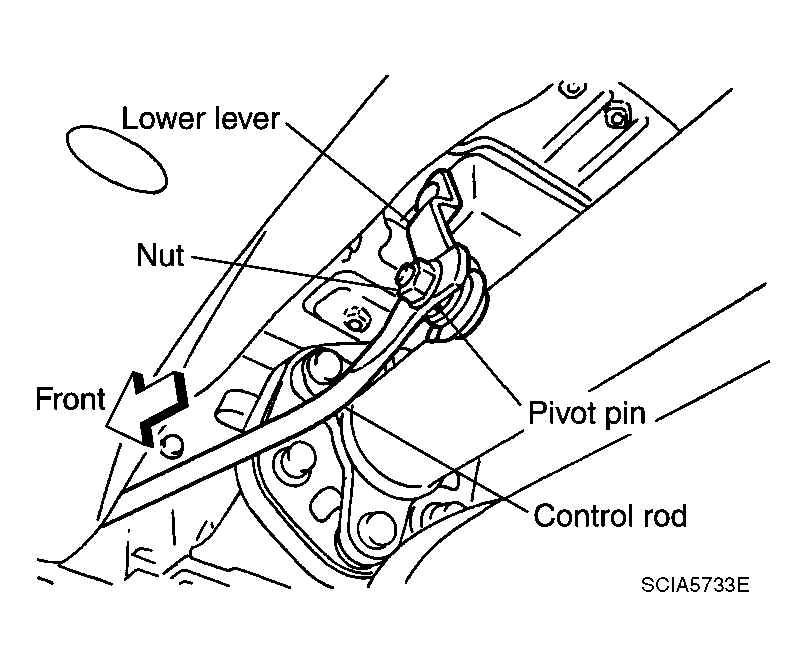

    Fig 1: Identifying Nut Of Pivot Pin
    G04128119Courtesy of NISSAN MOTOR CO., U.S.A.
