Control Device Removal and Installation: Removal

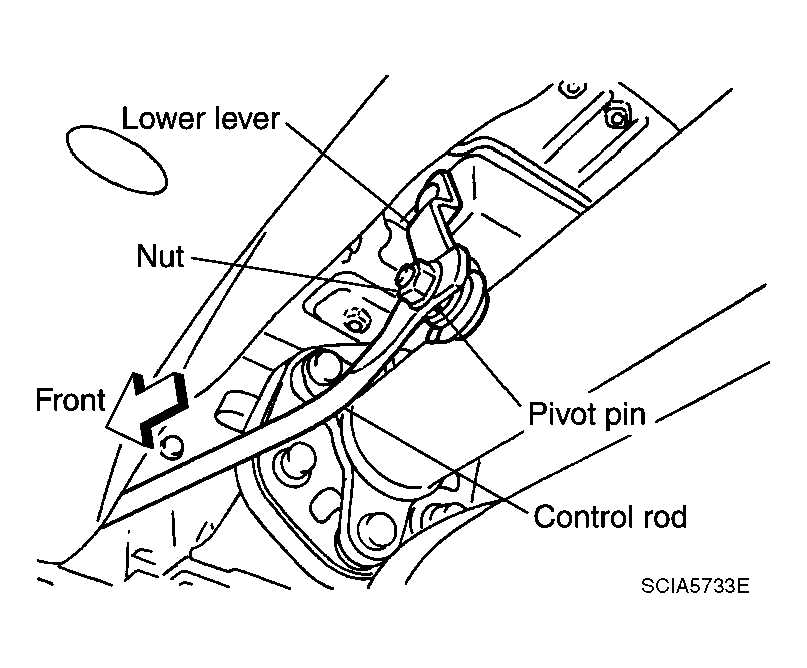

- Disconnect lower lever of control device and control rod.
- Remove A/T console finisher. Refer to
"INSTRUMENT PANEL ASSEMBLY
".
- Remove console box assembly. Refer to
"INSTRUMENT PANEL ASSEMBLY
".
- Remove rear ventilator duct No.2. Refer to
"REMOVAL OF REAR VENTILATOR DUCTS
".
Courtesy of NISSAN MOTOR CO., U.S.A.

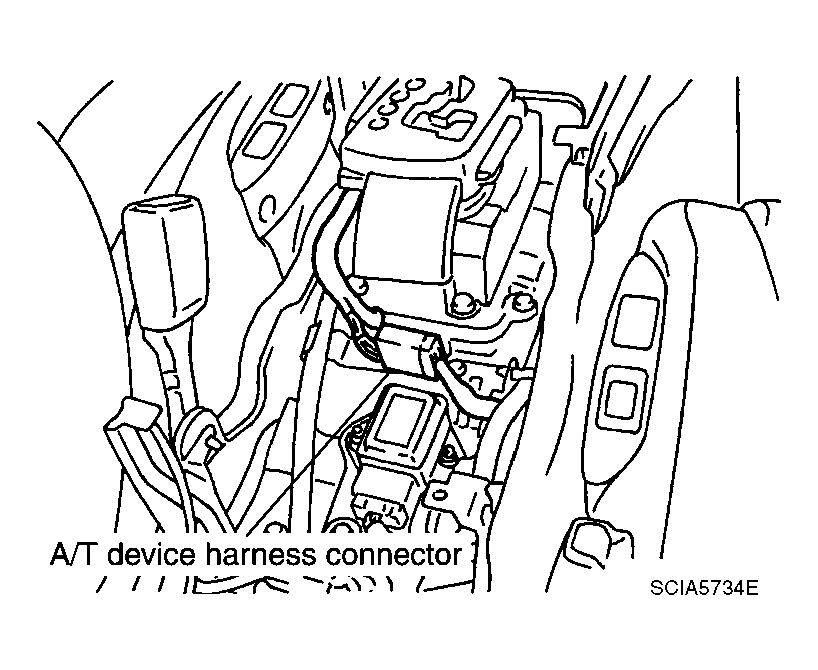

- Disconnect A/T device harness connector.
Courtesy of NISSAN MOTOR CO., U.S.A.

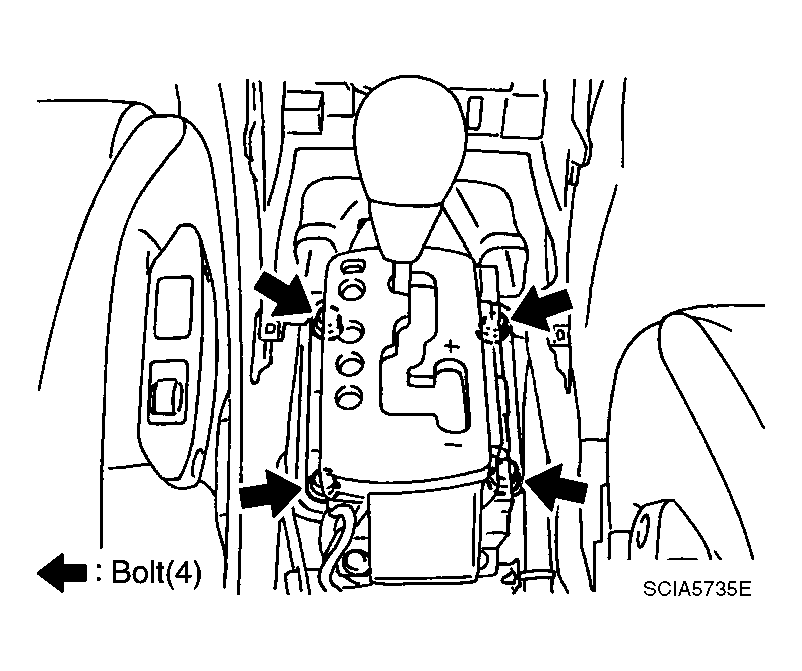

- Remove control device assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
