Control Rod Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.

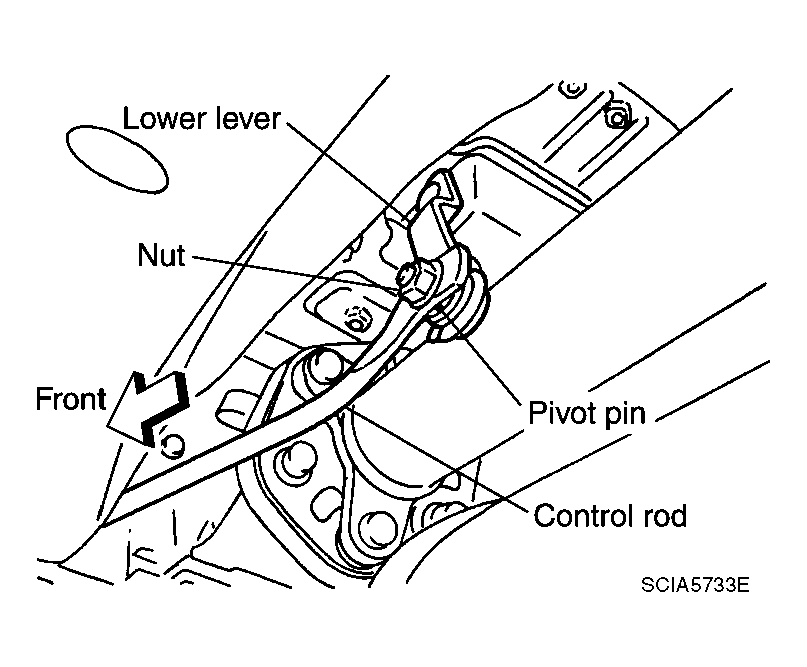

    Fig 1: Identifying Lower Lever Of Control Device And Control Rod
    G04128117Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove manual lever from A/T.
  3. Remove control rod from vehicle.

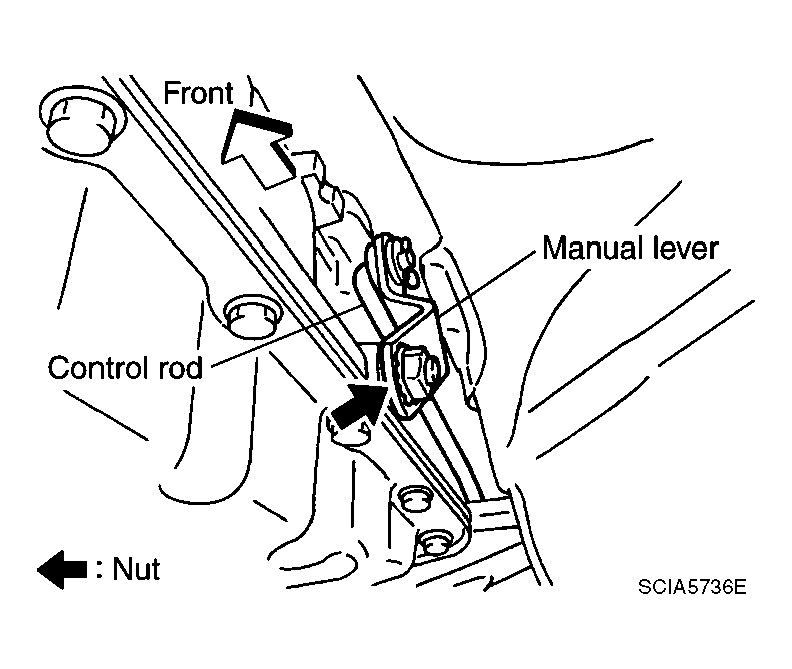

    Fig 2: Identifying Manual Lever From A/T
    G04128118Courtesy of NISSAN MOTOR CO., U.S.A.
