Power Steering Pressure Sensor

  1. Reconnect all harness connectors disconnected.
  2. Start engine and let it idle.
  3. Check voltage between ECM terminal 12 and ground under the following conditions.
    POWER STEERING PRESSURE SENSOR VOLTAGE

    Condition Voltage
    Steering wheel: Being turned. 0.5 - 4.5V
    Steering wheel: Not being turned. 0.4 - 0.8V

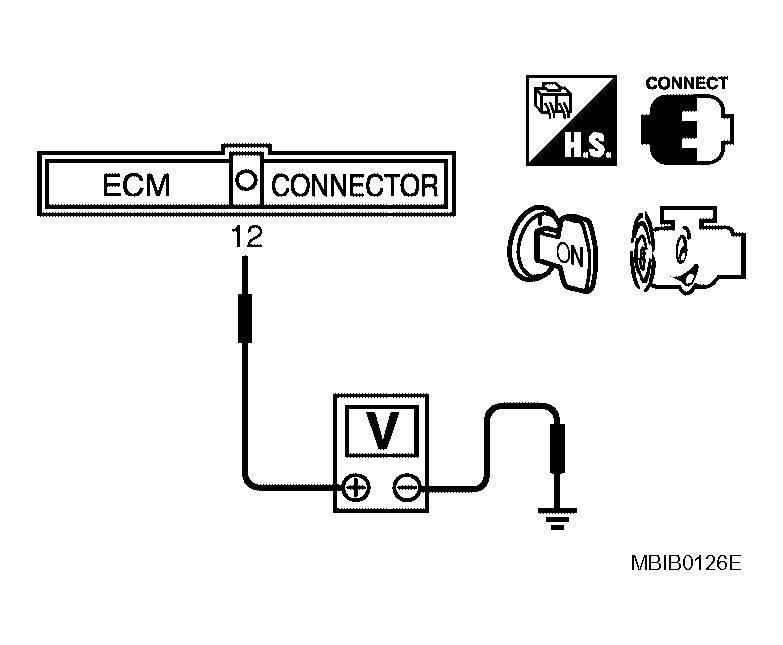

    Fig 1: Identifying Voltage Between ECM Terminal 12 And Ground
    G04133053Courtesy of NISSAN MOTOR CO., U.S.A.
