DTC P2101 Electric Throttle Control Function: Wiring Diagram

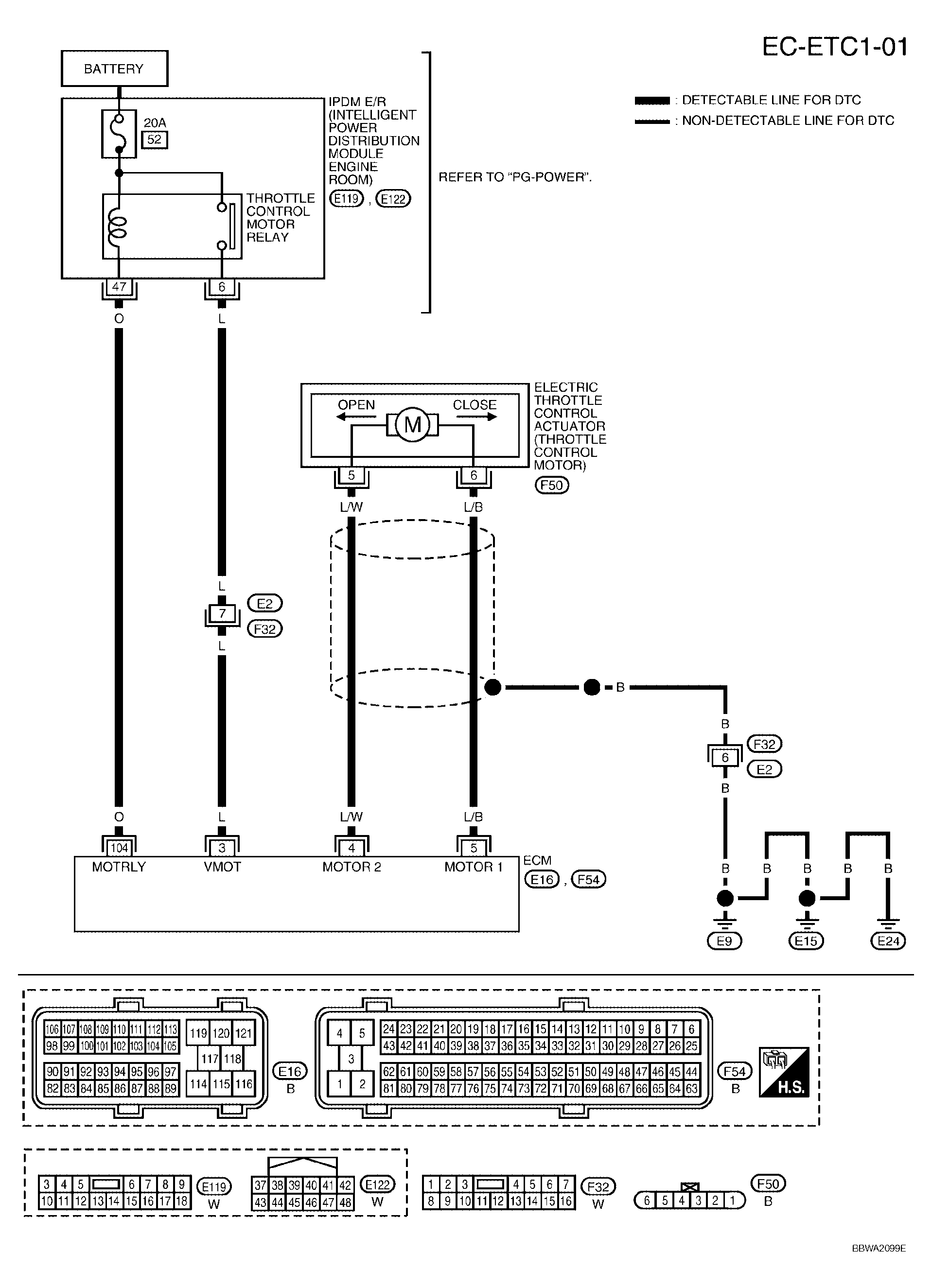

Fig 1: EC-ETC1-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ECM SPECIFICATION DATA AND REFERENCE VALUE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
3	L	Throttle control motor relay power supply	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)
4	L/W	Throttle control motor (Close)	[Ignition switch: ON] Engine: Stopped Selector lever: D Accelerator pedal: Released	Courtesy of NISSAN MOTOR CO., U.S.A.
5	L/B	Throttle control motor (Open)	[Ignition switch: ON] Engine: Stopped Selector lever: D Accelerator pedal: Fully depressed	Courtesy of NISSAN MOTOR CO., U.S.A.
104	O	Throttle control motor relay	[Ignition switch: OFF]	BATTERY VOLTAGE (11 - 14V)
104	O	Throttle control motor relay	[Ignition switch: ON]	0 - 1.0V

*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
