Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), INJ Pulse-B1

Below is the data for " ENG SPEED", "MAS A/F SE-B1", "THRTL SEN 1", "HO2S2 (B1)" and " INJ PULSE-B1" when revving engine quickly up to 4, 800 rpm under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

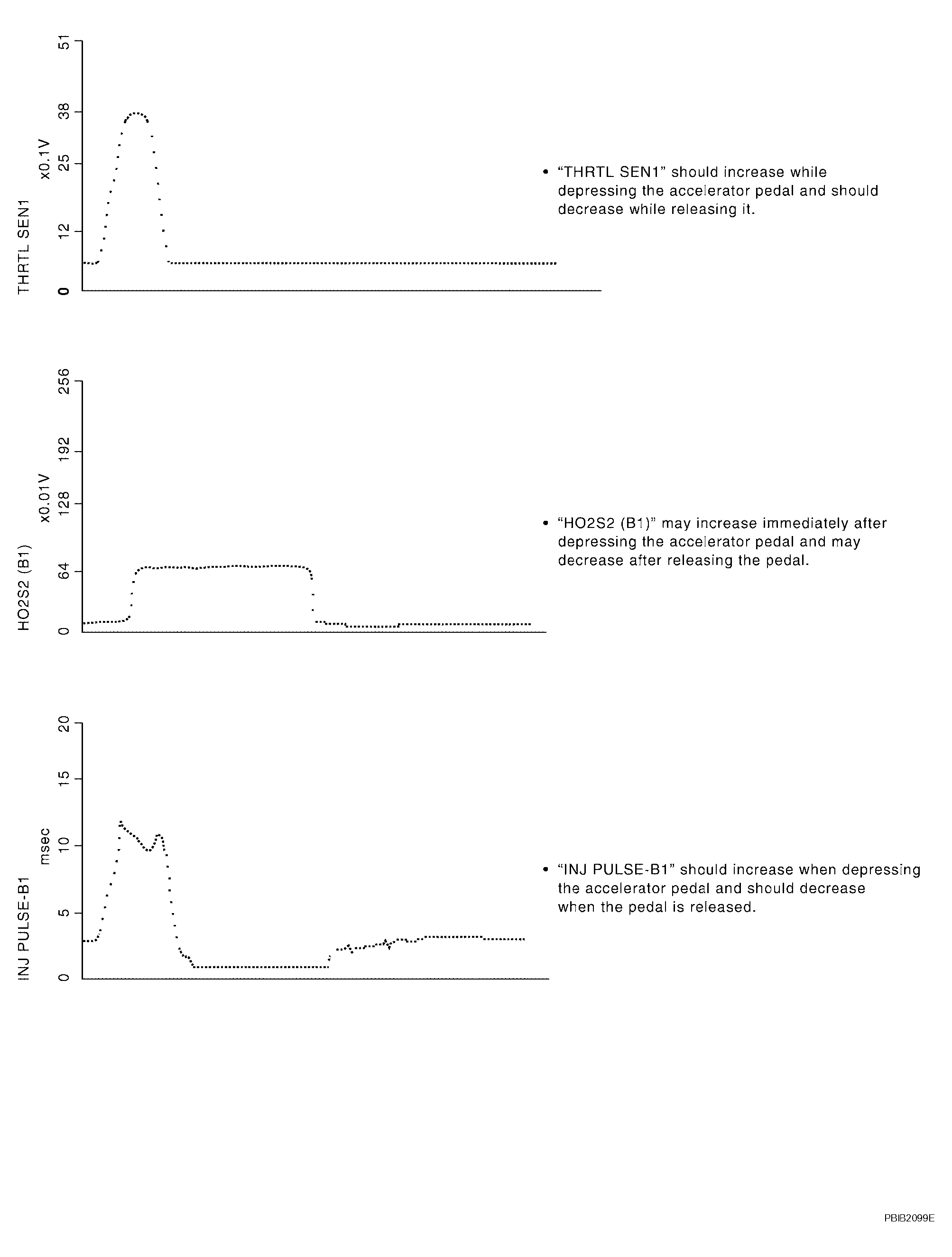

Fig 1: Major Sensor Reference Graph In Data Monitor Mode (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

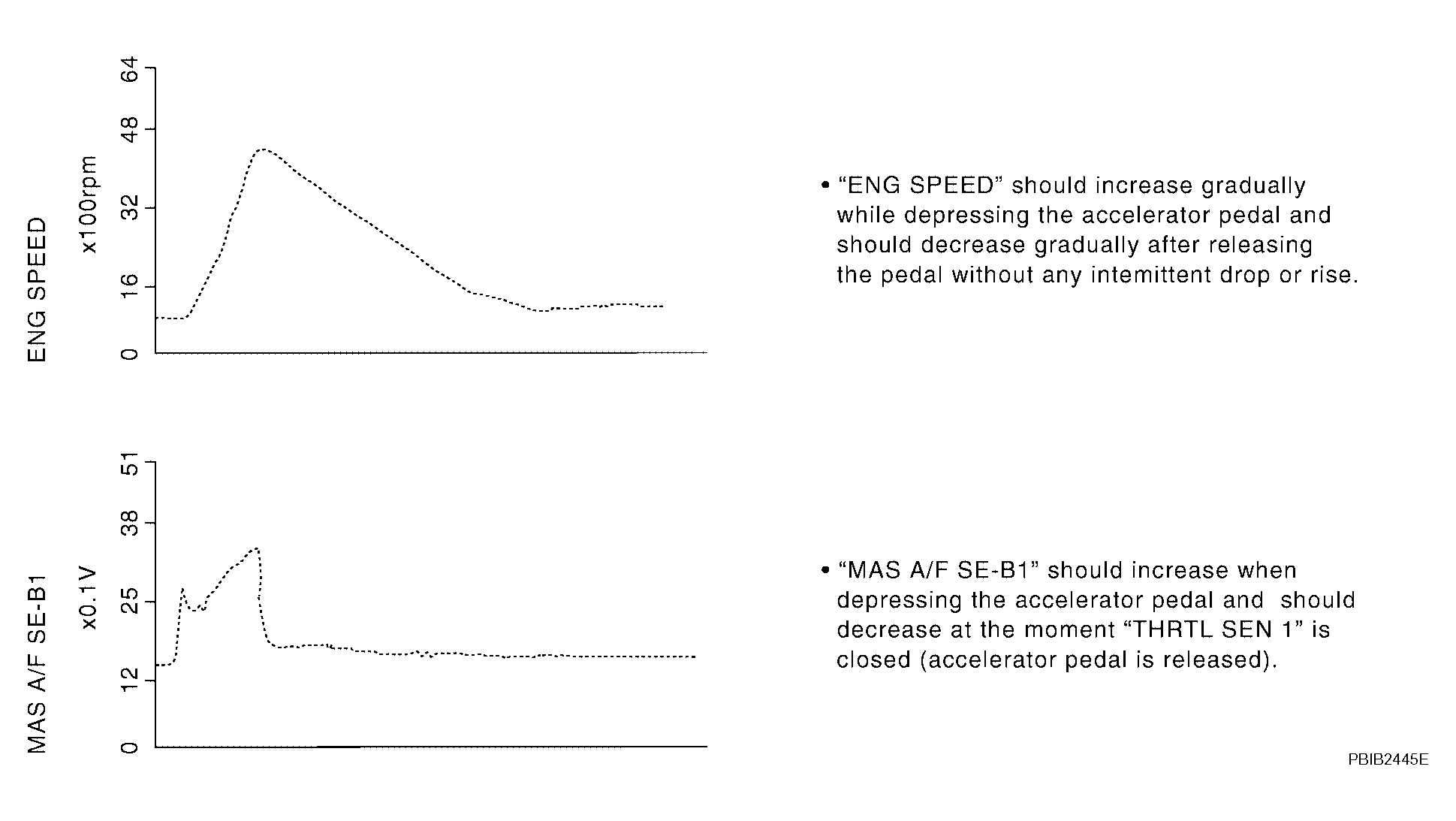

Fig 2: Major Sensor Reference Graph In Data Monitor Mode (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
