Disassembly and Assembly: Components

For GI, go to GENERAL INFORMATION .

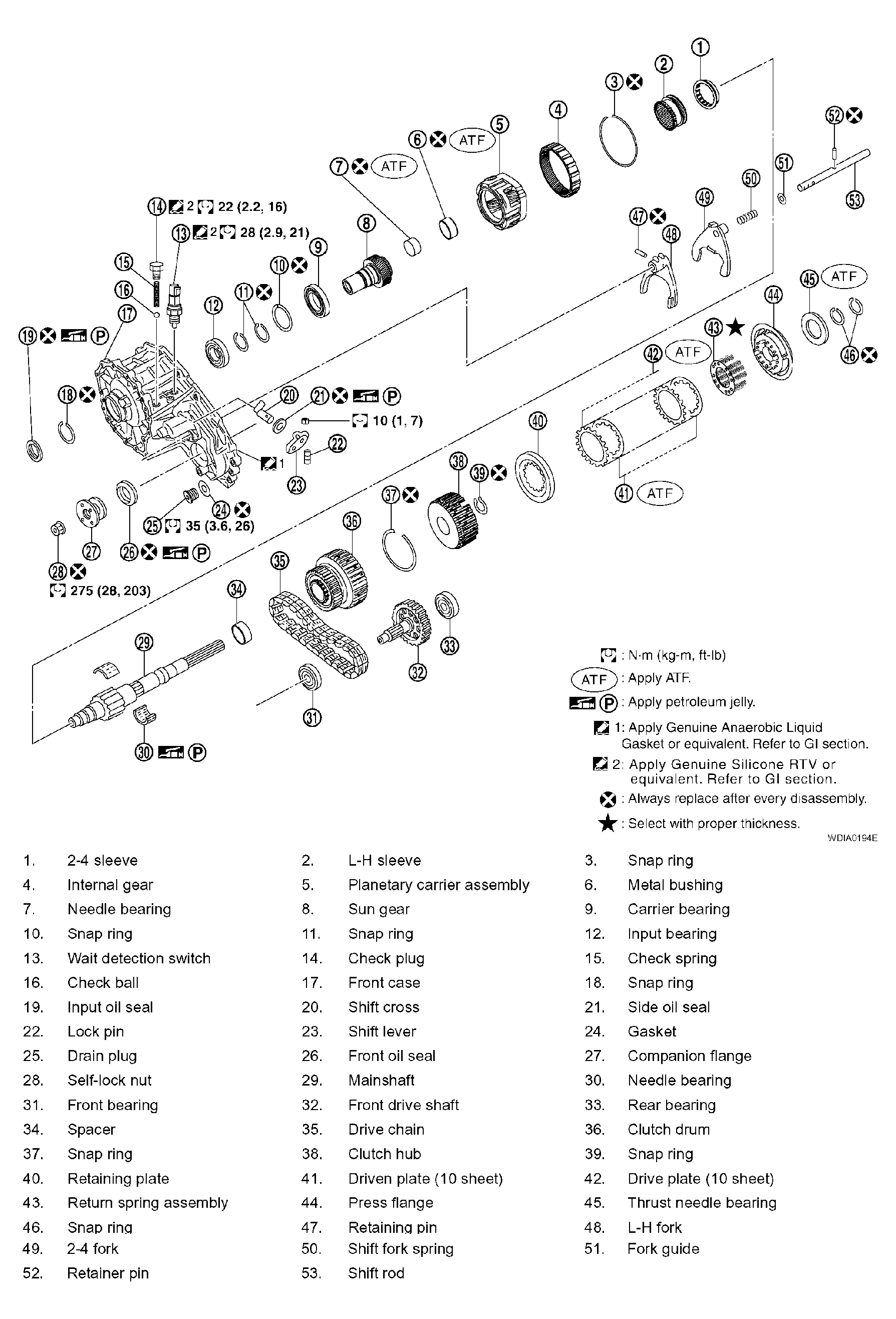

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications (1 Of 2)
G04134102Courtesy of NISSAN MOTOR CO., U.S.A.

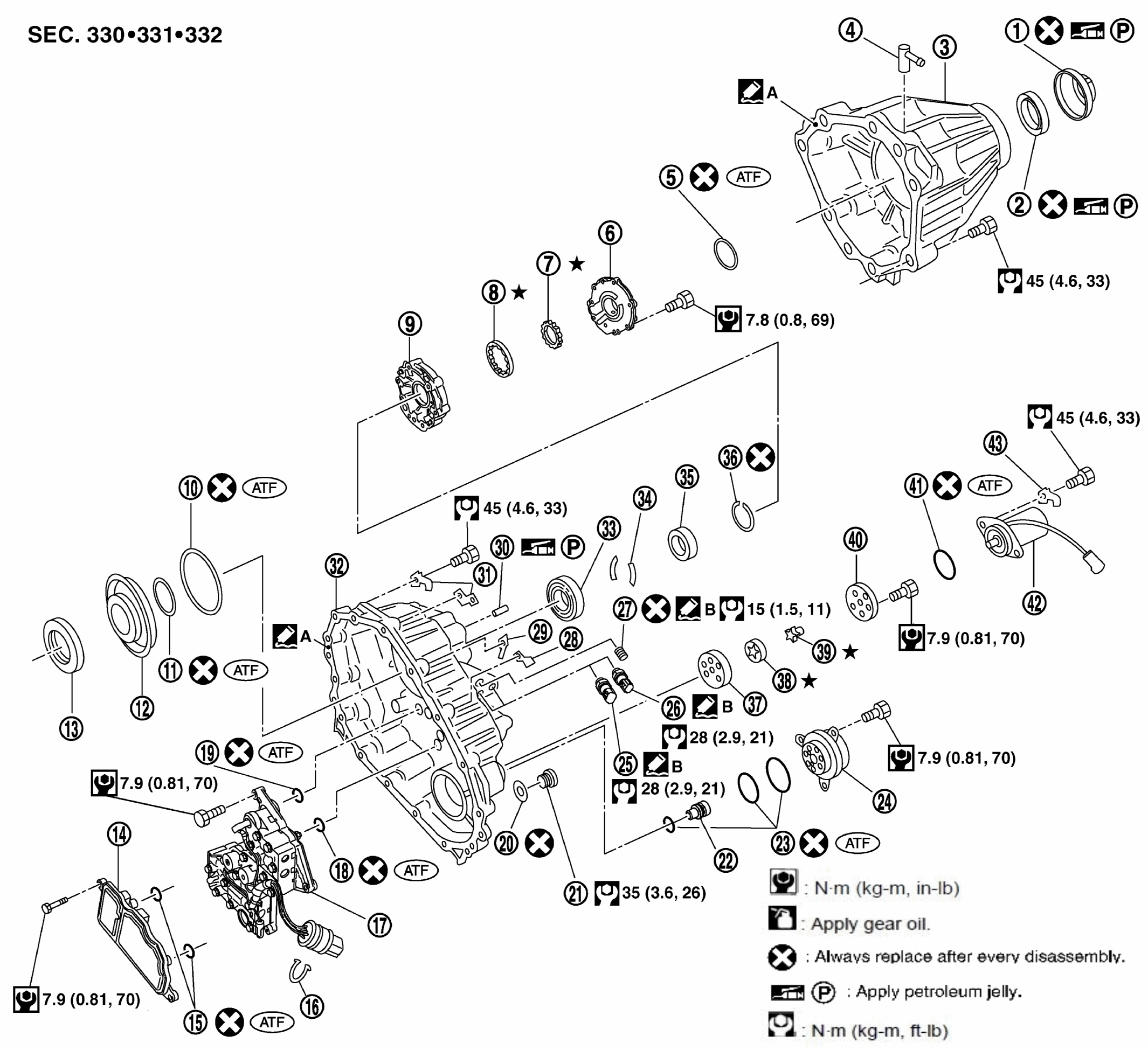

Fig 2: Exploded View Of Transfer Assembly Components With Torque Specifications (2 Of 2)
G04134103Courtesy of NISSAN MOTOR CO., U.S.A.
