CLSD THL Pos, ACCEL Sen 1, THRTL Sen 1

Below is the data for " CLSD THL POS", "ACCEL SEN 1" and " THRTL SEN 1" when depressing the accelerator pedal with the ignition switch ON and with selector lever in D position.

The signal of " ACCEL SEN 1" and " THRTL SEN 1" should rise gradually without any intermittent drop or rise after " CLSD THL POS" is changed from ON to OFF.

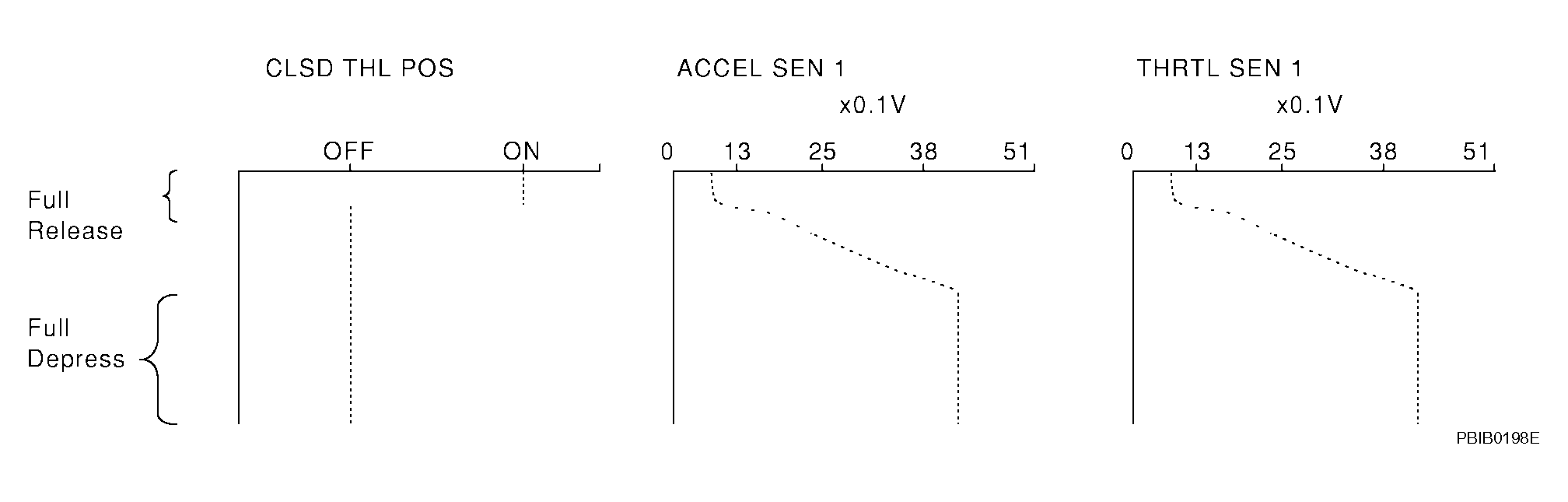

Fig 1: Major Sensor Reference Graph (CLSD THL POS, ACCEL SEN 1, THRTL SEN 1) In Data Monitor Mode
