Disassembly and Assembly: Components

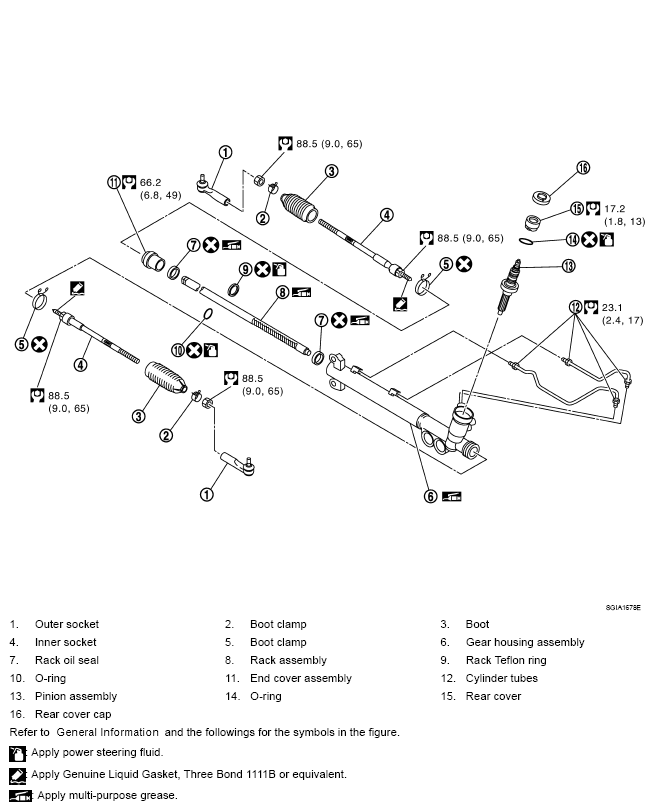

Fig 1: Identifying Power Steering Gear And Linkage Components

CAUTION:

Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.

Fig 2: Caution For Do Not Grip Cylinder With Vise
