Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description
ST27180001 (J-25726-A)		Removing steering wheel
ST3127S000 (J-25765-A) Preload gauge		Inspecting of sliding torque, steering torque, and rotating torque for ball joint

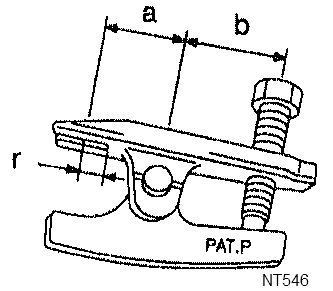

HT72520000 (J-25730-A) Ball joint remover a: 33 mm (1.3 in) b: 50 mm (1.97 in) r: 11.5 mm (0.45 in)		Removing steering outer socket
KV4810 5400 (J-46213) Rear cover wrench a: 21.6 mm (0.85 in) b: 34.9 mm (1.37 in)		Removing rear cover
KV48104400 ( - ) Teflon ring correcting tool a: 50 mm (1.97 in) dia. b: 36 mm (1.42 in) dia. c: 100 mm (3.94 in)		Installing of rack Teflon ring
KV48103400 ( - ) Torque adapter		Inspecting rotating torque
KV48102500-04 ( - ) Washer KV48102500-01 ( - ) Eye joint KV48102500-03 ( - ) Bolt KV48102500-02 ( - ) Flare Joint KV48103500 (J-26357&J-26357-10) Pressure gauge & shut off valve		Measuring oil pump relief pressure (VQ35DE models)
KV48105300-4 and 5295262U10 ( - ) Connector A and O-ring KV48105300-3 and 5295262U00 ( - ) Eye-bolt and O-ring KV48103500 (J-26357 and J-26357-10) Pressure gauge and shut-off valve KV48105300-1 and 5295262U00 ( - ) Connector B and O-ring KV48105300-2 ( - ) Nut		Measuring oil pump relief pressure (VK45DE models)
