Cross-sectional View (2WD Models)

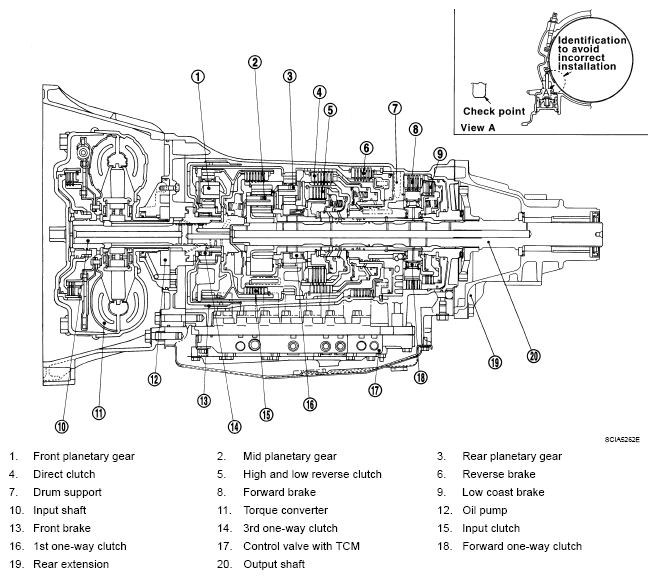

Fig 1: Identifying Cross-Sectional View Of A/T Control System Components (2WD Models)
G05217904Courtesy of NISSAN MOTOR CO., U.S.A.
