Identifying System Components

CAUTION:

Be sure to use genuine Infiniti exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.
Be careful not to cut your hand on the heat insulator edge.

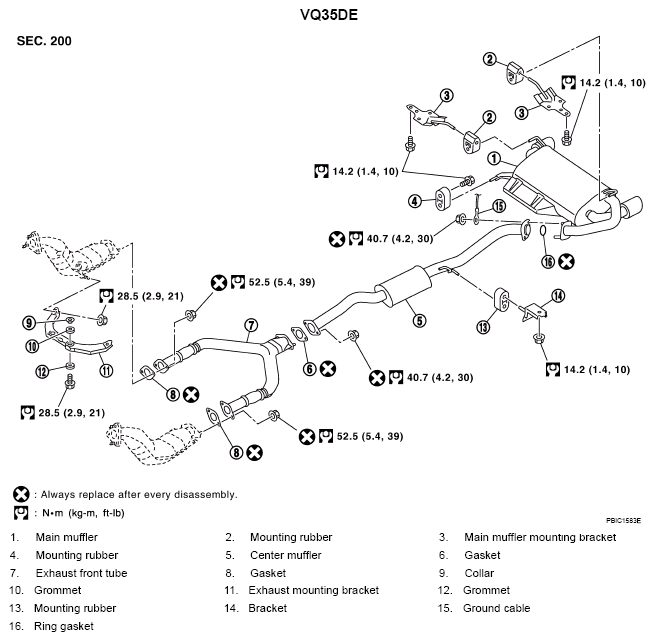

Fig 1: Exhaust System Replacement Components With Torque Specifications (VQ35DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

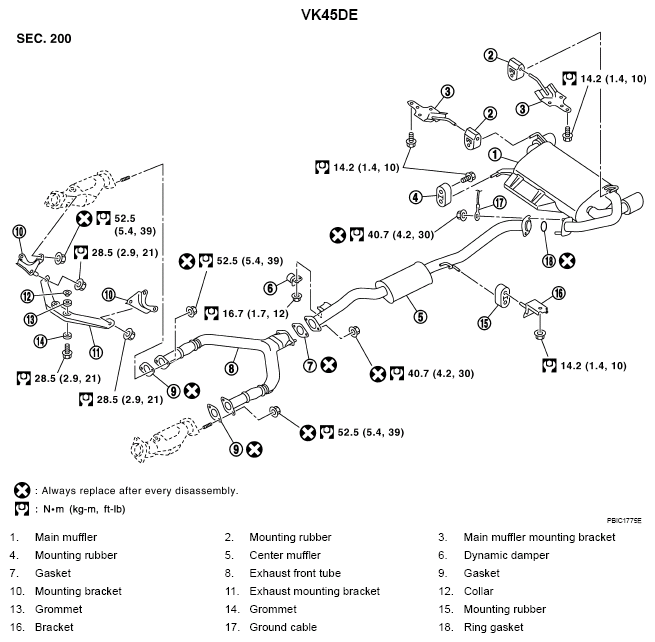

Fig 2: Exhaust System Replacement Components With Torque Specifications (VK45DE)

Courtesy of NISSAN MOTOR CO., U.S.A.
