Removal and Installation: Components

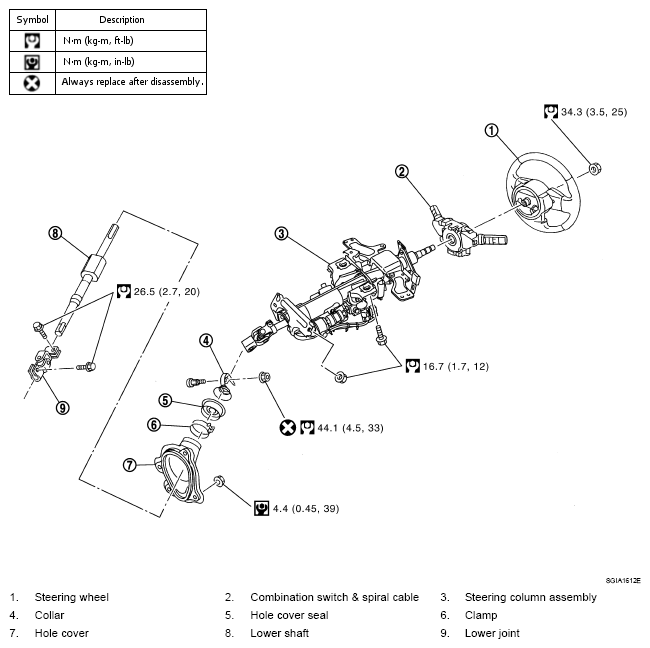

Fig 1: Steering Column Replacement Components With Torque Specifications
G05220584

Refer to "COMPONENTS " for the symbols in the figure.

CAUTION:
  • Care must be taken not to give axial impact to steering column assembly during removal and installation.
  • Care must be taken not to move steering gear during removal of steering column assembly.
