KEYFOB Interlock Operation

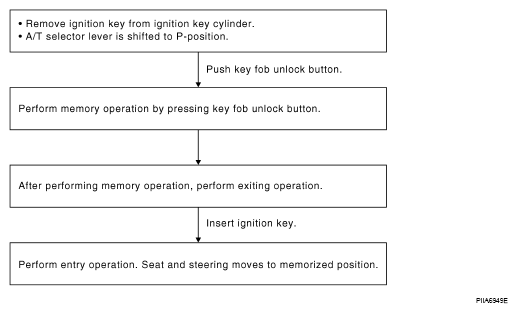

Fig 1: Identifying Keyfob Interlock Operation - Diagnostic Flow Chart
G05221451Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If steering wheel operation is cancelled, the system performs seat and mirror operation only.
  • If Entry/Exiting operation is cancelled, the system performs steering wheel operation and mirror operation only.
  • If ignition switch turns ON in the middle of memory operation, the system does not perform exiting operation after memory operation.
  • If ignition switch turns ON in the middle of exiting operation, entry operation starts at that time.
