Removal and Installation: Notes

CAUTION: Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the figure below.

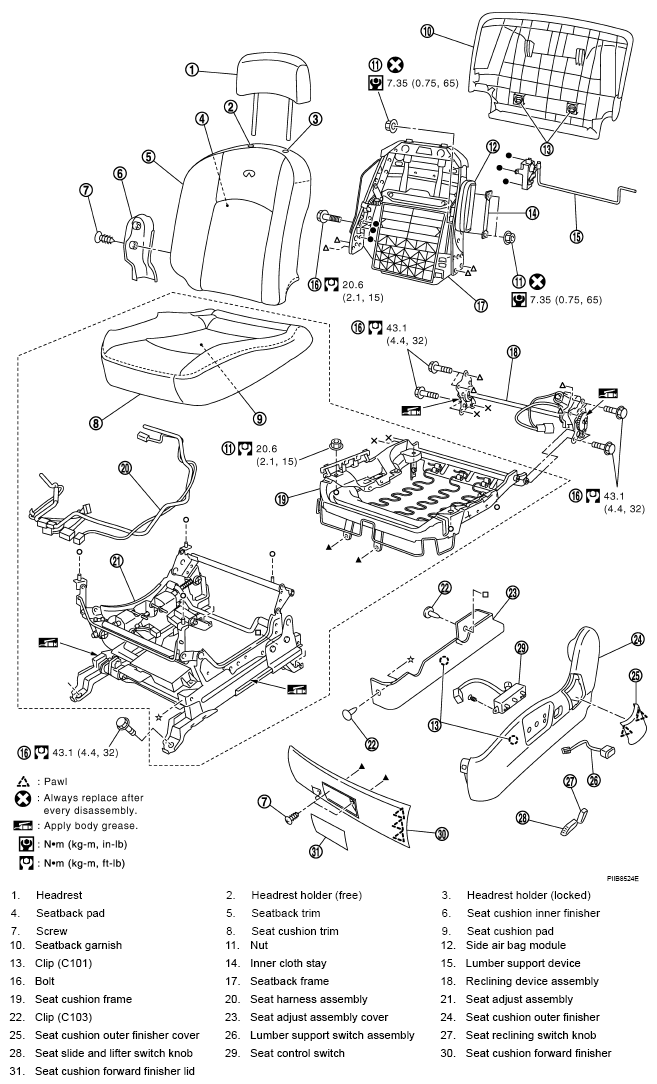

Fig 1: Front Seat Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
