Diagnostic Procedure

Turn ignition switch to START.

Is any cylinder ignited?

Yes or No

Yes (With CONSULT-II)>>GO TO  2.

Yes (Without CONSULT-II)>>GO TO  3.

No: GO TO  3.

With CONSULT-II

1. Start engine.
2. Perform "POWER BALANCE" in "ACTIVE TEST " mode with CONSULT-II.
3. Make sure that each circuit produces a momentary engine speed drop.

OK or NG

OK: INSPECTION END

NG: GO TO  3.

Fig 1: CONSULT-II Display - ACTIVE TEST

Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Disconnect harness connector F21, F201 (Bank 1) and F41, F221 (Bank 2).

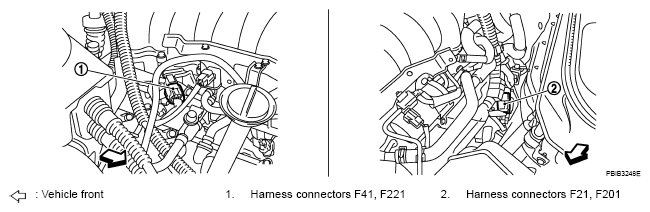

   Fig 2: Identifying Harness Connector F21, F201 (Bank 1) And F41, F221 (Bank 2)

   Courtesy of NISSAN NORTH AMERICA, INC.
3. Turn ignition switch ON.
4. Check voltage between the following;

   harness connector F21 terminal 5 and ground,

   harness connector F41 terminal 5 and ground

   with CONSULT-II or tester.

   Voltage: Battery voltage

5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
   CONTINUITY CONDITIONS



   Cylinder	Harness connector terminal	ECM terminal
   1	F21 terminal 3	23
   3	F21 terminal 2	22
   5	F21 terminal 1	21
   7	F21 terminal 6	44
   2	F41 terminal 3	42
   4	F41 terminal 2	41
   6	F41 terminal 1	40
   8	F41 terminal 6	63

   Continuity should exist.

8. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO  5.

NG: GO TO  4.

Fig 3: Checking Voltage Between Harness Connector F21 Terminal 5 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

Check the following.

• Harness connectors M82, F102
• Harness connectors F21, F201
• Harness connectors F41, F221
• Fuse block (J/B) connector M1
• 15A fuse
• Harness for open or short between harness connector F21 and fuse
• Harness for open or short between harness connector F41 and fuse
• Harness for open or short between harness connector F21 and ECM
• Harness for open or short between harness connector F41 and ECM

  >> Repair open circuit or short to ground or short to power in harness or connectors.

Provide battery voltage between the following terminals, and then interrupt it. Listen to each fuel injector operating sound.

Operating sound should exist.

OK or NG

OK: INSPECTION END

NG: GO TO  6.

Fig 4: Checking Function Of Fuel Injector-II

Courtesy of NISSAN NORTH AMERICA, INC.

1. Disconnect fuel injector harness connectors.

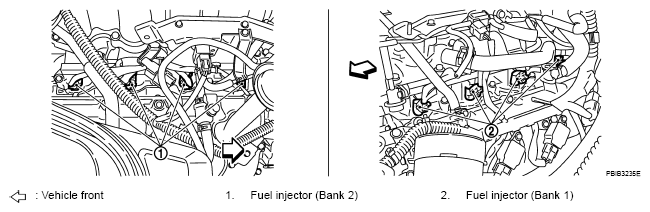

   Fig 5: Identifying Fuel Injector Harness Connectors

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .
   TERMINALS REFERENCE



   Harness connector terminal	Fuel injector terminal
   F201 terminal 1	2
   F201 terminal 2
   F201 terminal 3
   F201 terminal 6
   F201 terminal 5	1
   F221 terminal 1	2
   F221 terminal 2
   F221 terminal 3
   F221 terminal 6
   F221 terminal 5	1

   Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO  7.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO  8.

NG: Replace fuel injector.

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

>> INSPECTION END
