Removal and Installation: Installation

1. Set key interlock cable (2) to key cylinder (1) and install holder (A).

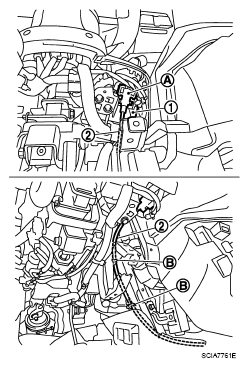

   Fig 1: Identifying Holder And Key Cylinder

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Clamp key interlock cable (2) and fix to key interlock cable (2) with clips (B).
3. Turn ignition key to "LOCK" position.
4. Set selector lever to "P" position.
5. Insert interlock rod into adjuster holder.
Fig 2: Identifying Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install casing cap to bracket.
7. Move slider in order to fix adjuster holder to interlock rod.

Insert slider into key interlock rod straightly.
