Oil Channel

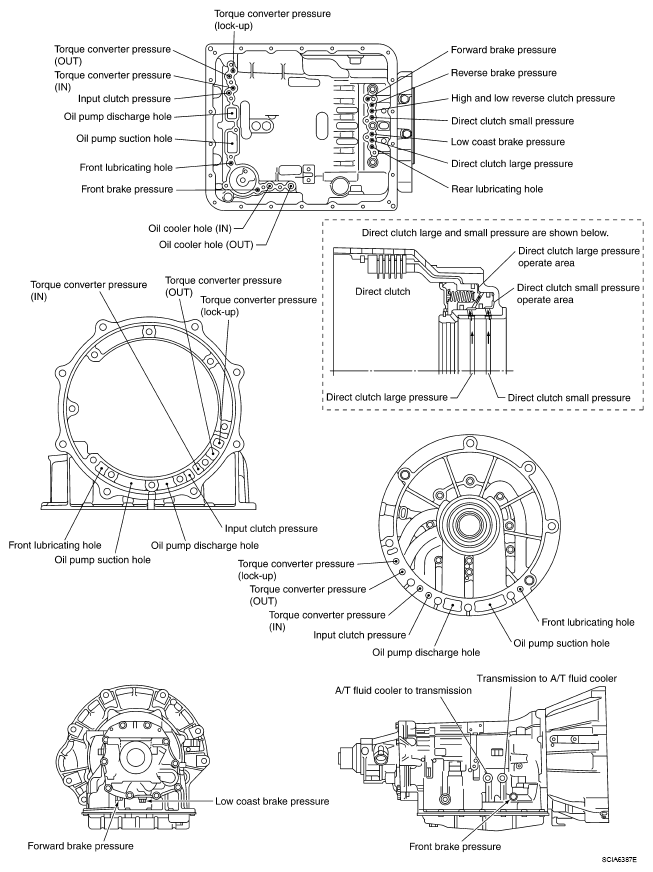

Fig 1: Identifying Oil Channel Location (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

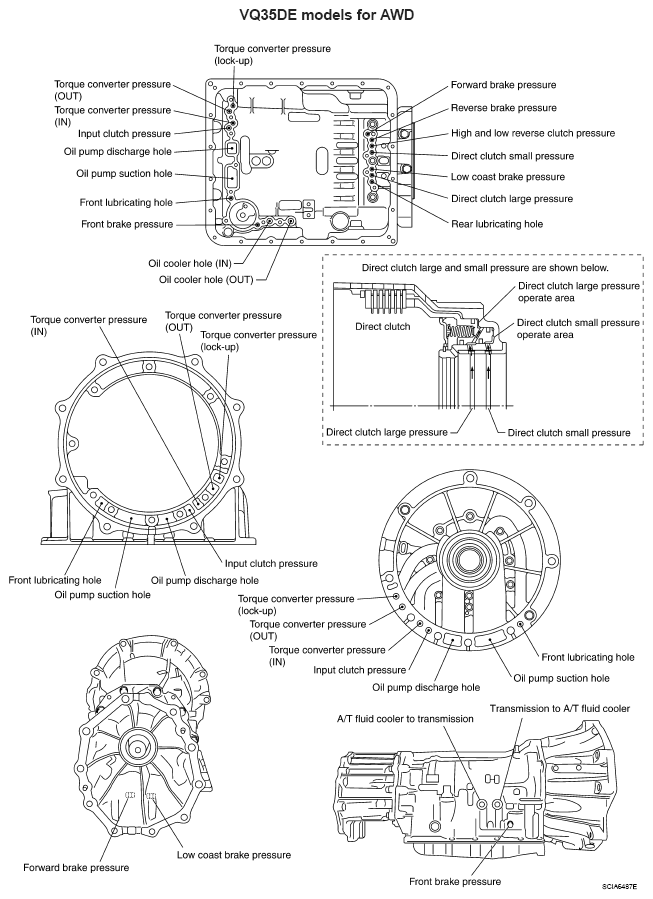

Fig 2: Identifying Oil Channel Location (VQ35DE Models For AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Oil Channel Location (VK45DE Models For AWD)

Courtesy of NISSAN MOTOR CO., U.S.A.
