Removal and Installation (2WD Models): Components

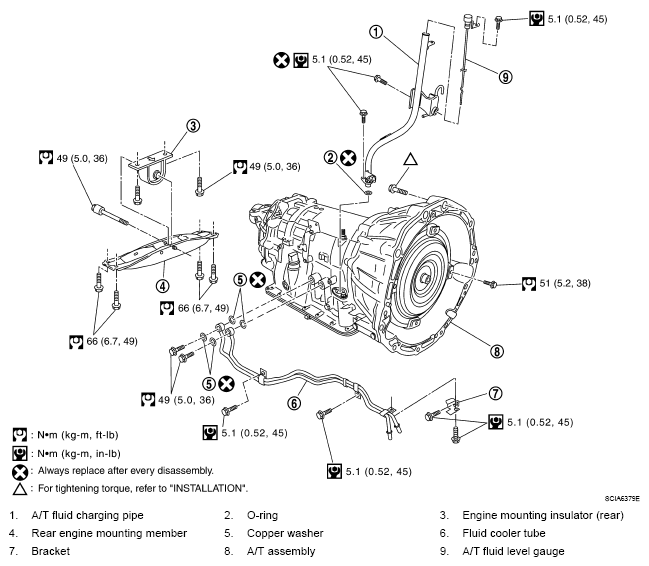

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (2WD Models)
G05218235Courtesy of NISSAN MOTOR CO., U.S.A.
