With CONSULT-II

  1. Start engine and warm it up to normal operation temperature.
  2. Set shift lever in neutral position and confirm that following electrical or mechanical loads are not applied.
    • Headlamp switch is OFF
    • Air conditioner switch is OFF
    • Rear defogger switch is OFF
    • Steering wheel is in the straight-ahead position, etc
  3. Keep the engine speed between 1, 800 and 2, 000 rpm.
  4. Select "EXH V/T CONTROL LEARN" in "WORK SUPPORT" mode with CONSULT-II.

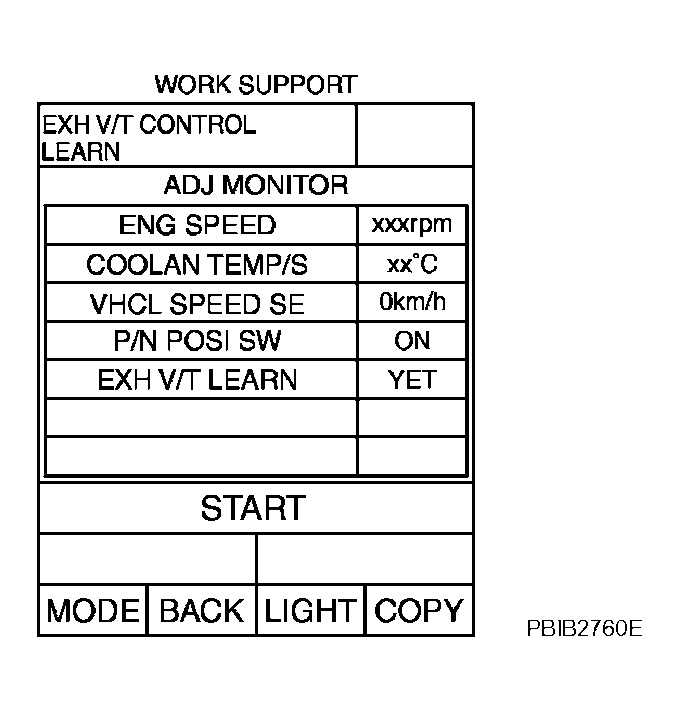

    Fig 1: CONSULT-II Display - WORK SUPPORT
    G04179501Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "START" and wait 20 seconds.
  6. Make sure that "CMPLT" is displayed on CONSULT-II screen.

    Learning completed : CMPLT

    Learning not yet : YET

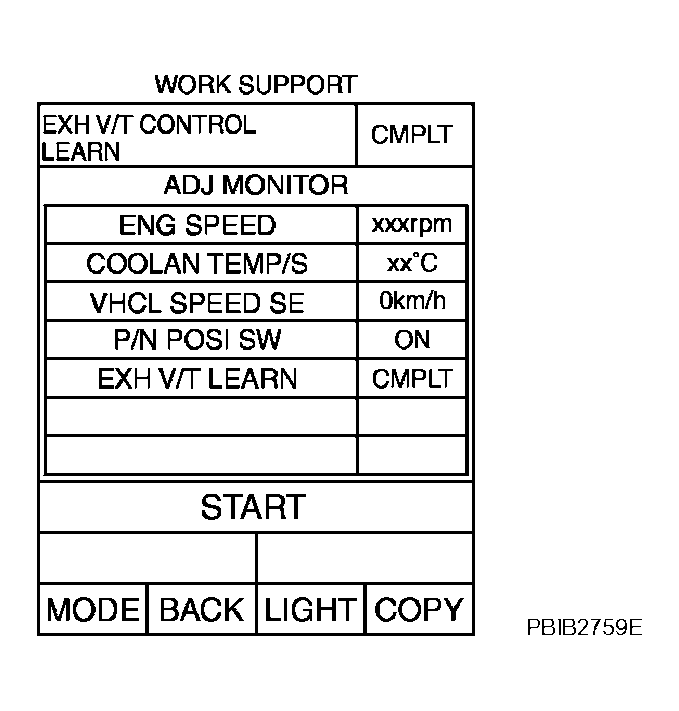

    Fig 2: CONSULT-II Display - WORK SUPPORT
    G04179502Courtesy of NISSAN MOTOR CO., U.S.A.
