Component Parts Location

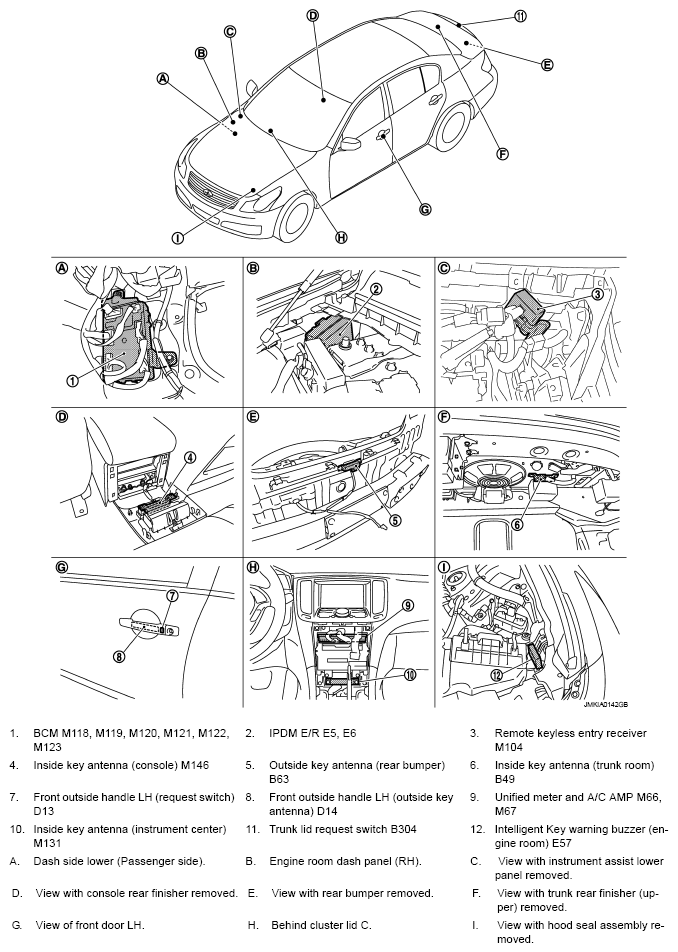

Fig 1: Identifying Vehicle Security System Component Location (1 Of 3)
G05226930

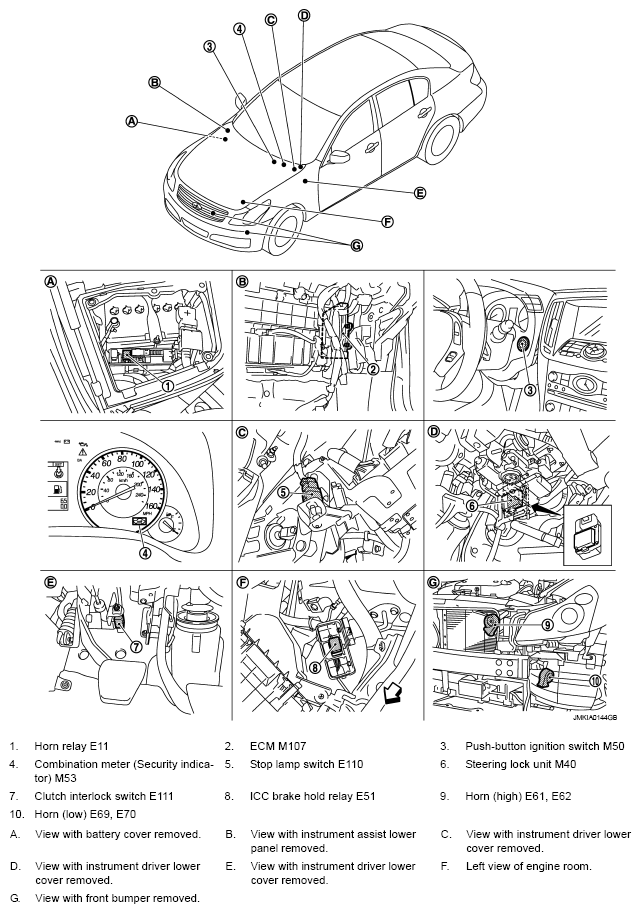

Fig 2: Identifying Vehicle Security System Component Location (2 Of 3)
G05226931

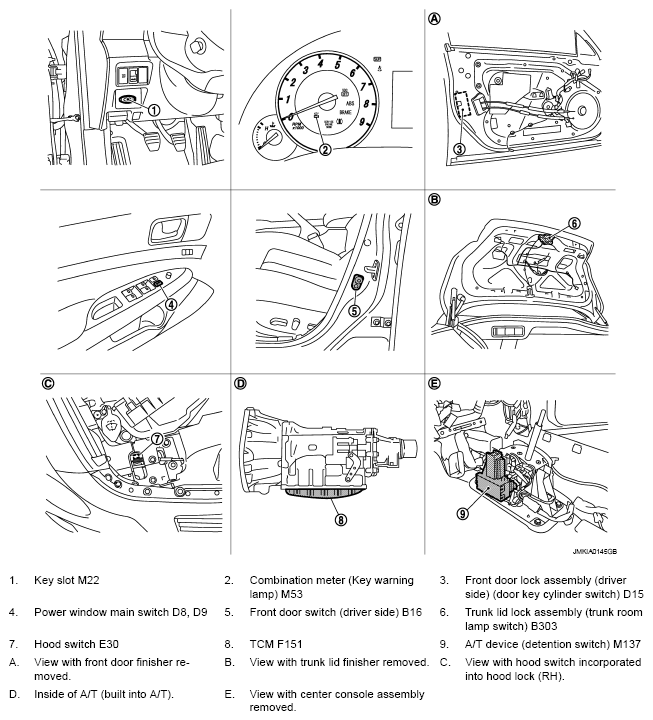

Fig 3: Identifying Vehicle Security System Component Location (3 Of 3)
G05226932
