Quick Connector

CAUTION:
  • After connecting fuel tube quick connectors, make sure quick connectors are secure.
  • Ensure that connector and resin tube do not contact any adjacent parts.

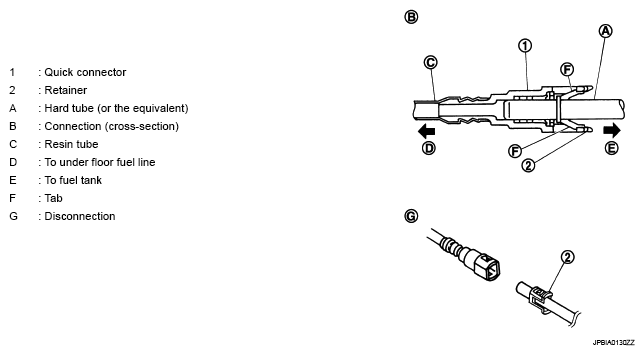

Fig 1: Identifying Quick Connector Fitting
G05224163
