Component Parts and Harness Connector Location

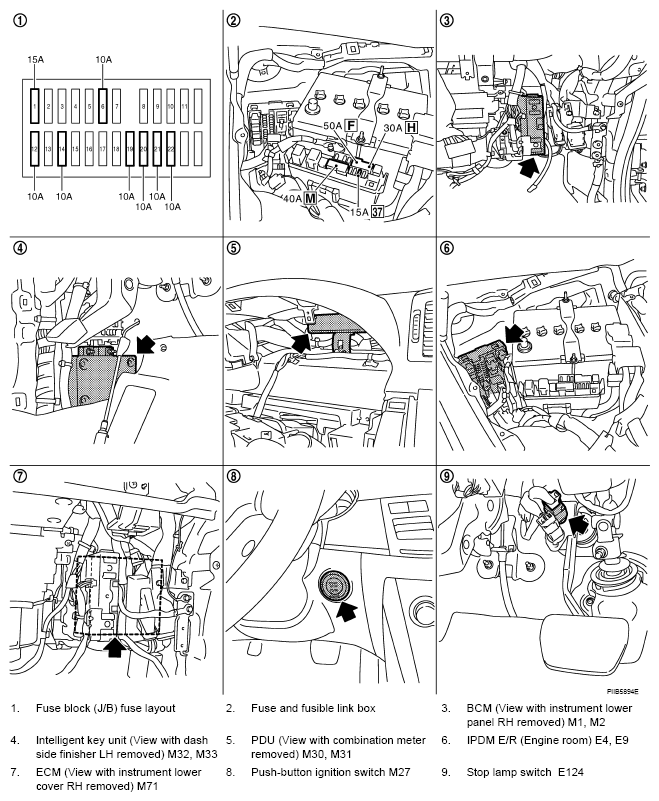

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Parts And Harness Connector Location (1 Of 2)
G05212291

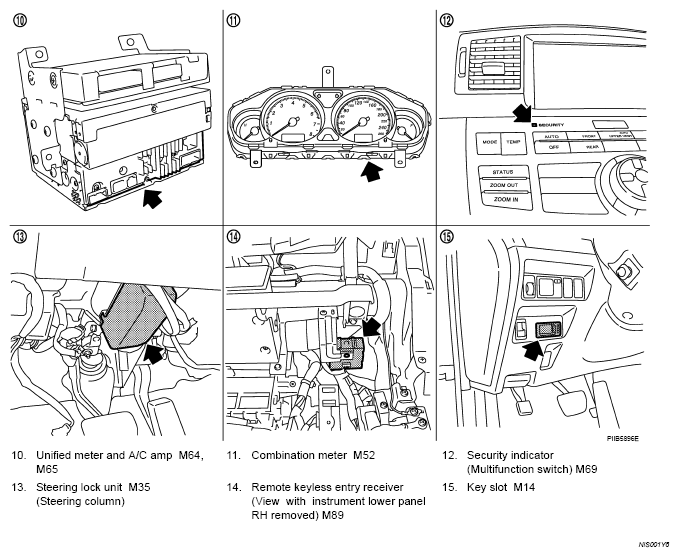

Fig 2: Identifying Intelligent Key System/Engine Start Function Component Parts And Harness Connector Location (2 Of 2)
G05212292
