VK45DE Engine Models: Notes

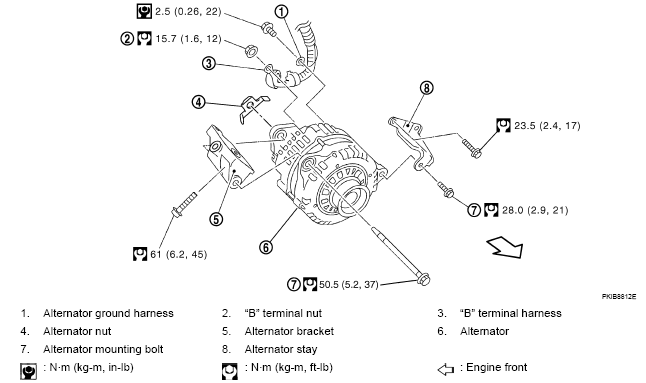

Fig 1: Charging System Replacement Components Engine Models With Torque Specifications (VK45DE)

G05214212
