Component Parts Drawing

SEC. 248.251.280.487.680.685.969

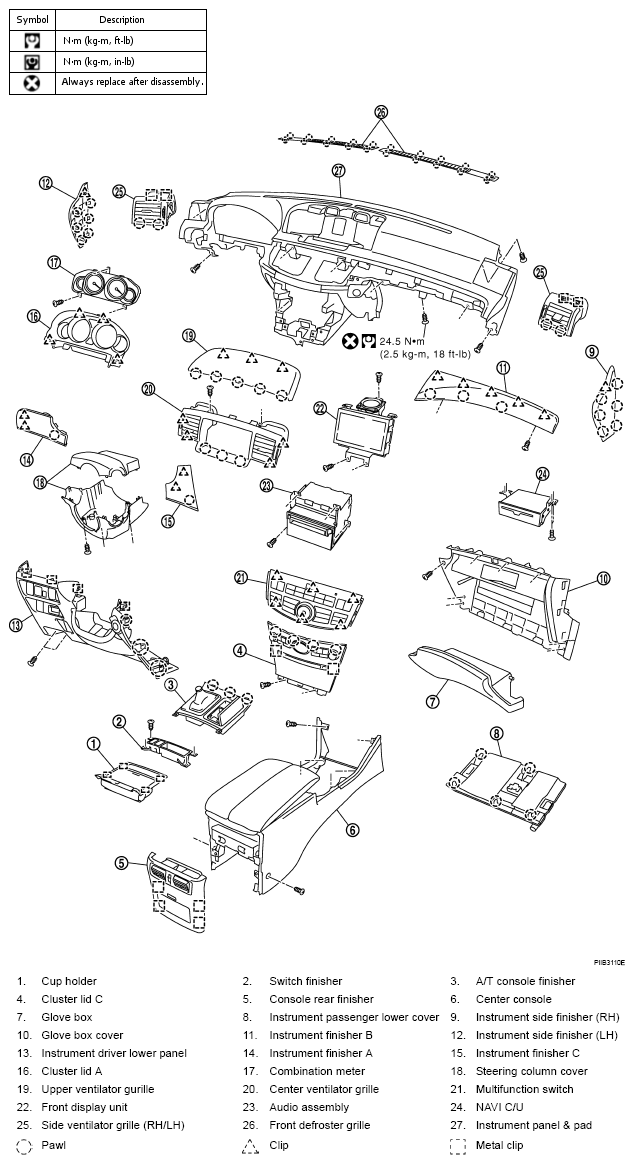

Fig 1: Instrument Panel Replacement Components With Torque Specifications

G05212838
