Components (Models with Rear Active Steer)

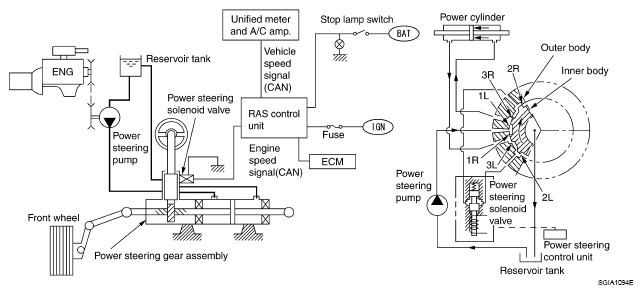

Fig 1: Steering Control System Diagram (Models With Rear Active Steer)

G05211962
