Disassembly and Assembly: Component

Refer to COMPONENTS .

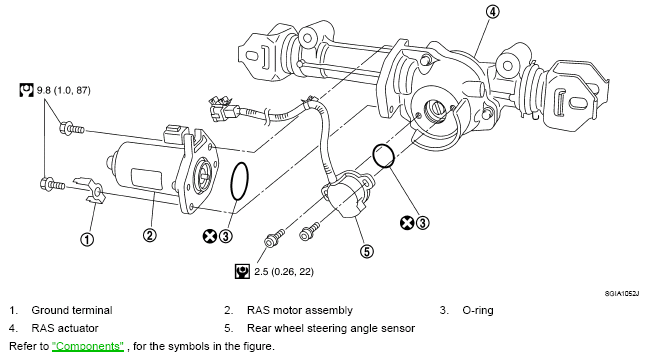

Fig 1: Identifying Rear Active Steer Components

G05211987
