Intelligent Key System/Engine Start Function: Schematic

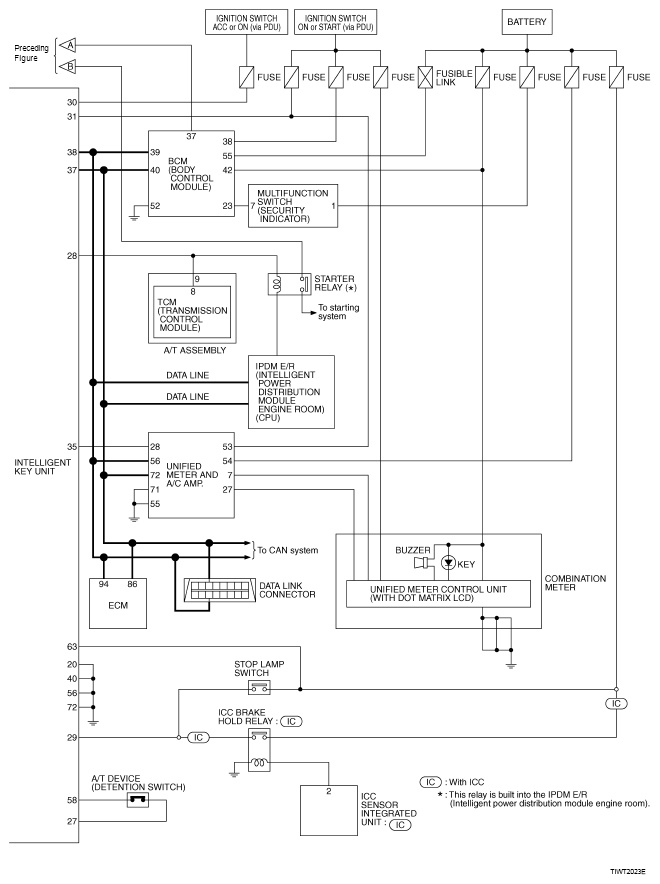

Fig 1: Intelligent Key System/Engine Start Function - Schematic Diagram (1 Of 2)

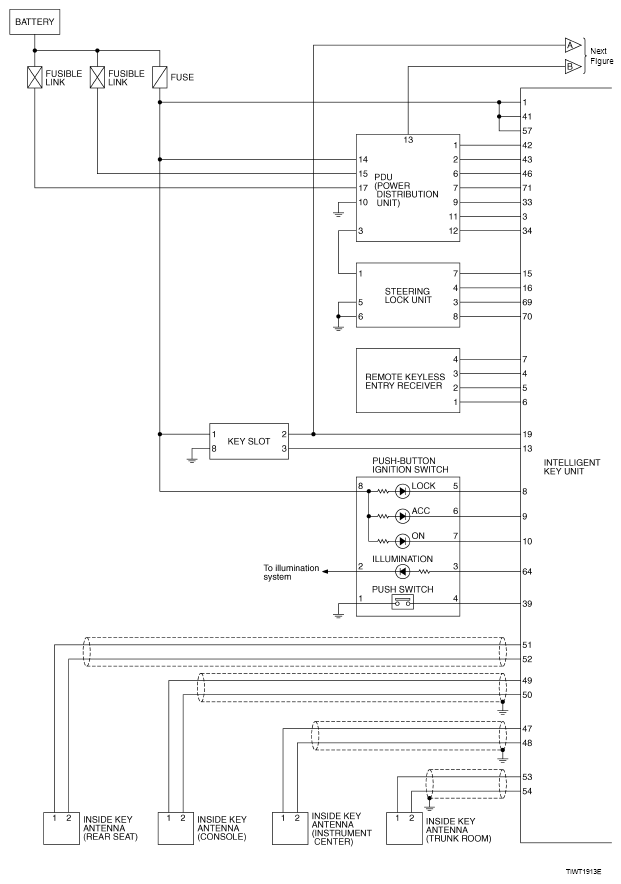

Fig 2: Intelligent Key System/Engine Start Function - Schematic Diagram (2 Of 2)
