Diagnostic Procedure

Check the signal between Intelligent Key unit connector and ground.

Terminals			Condition	Signal (Reference value)
(+)		(-)
Intelligent Key unit connector	Terminal
M32	35	Ground	Speed meter operated [When vehicle speed is Approx. 40 km/h (25MPH)]

Fig 1: Checking Signal Between Intelligent Key Unit Connector Terminal 35 And Ground

OK or NG

OK: Check the condition of harness and connector. If it is OK, check the self-diagnosis results using CONSULT-II again.

NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect Intelligent Key unit and unified meter and A/C amp. Connector.
3. Check continuity between Intelligent Key unit connector and unified meter and A/C amp. Connector.
   TERMINAL CONTINUITY CHART



   A		B		Continuity
   Intelligent Key unit connector	Terminal	Unified meter and A/C amp. connector	Terminal
   M32	35	M64	28	Yes

4. Check continuity between Intelligent Key unit connector and ground.
   TERMINAL CONTINUITY CHART



   A		Ground	Continuity
   Intelligent Key unit connector	Terminal
   M32	35		No

OK or NG

OK:

• If the measured value is not waveform but 0V constant, the harness or connector between the using receiving the vehicle speed signal from unified meter and A/C amp. may be malfunctioning. Check these wirings.
• If the measured value is not waveform but 5V or 12V constant, replace unified meter and A/C amp.

NG: Repair or replace harness.

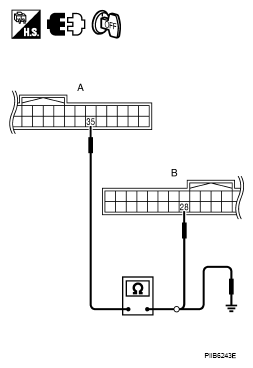

Fig 2: Checking Continuity Between Intelligent Key Unit Connector And Unified Meter And A/C Amp
