Wiring Diagram - ENG/ST -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

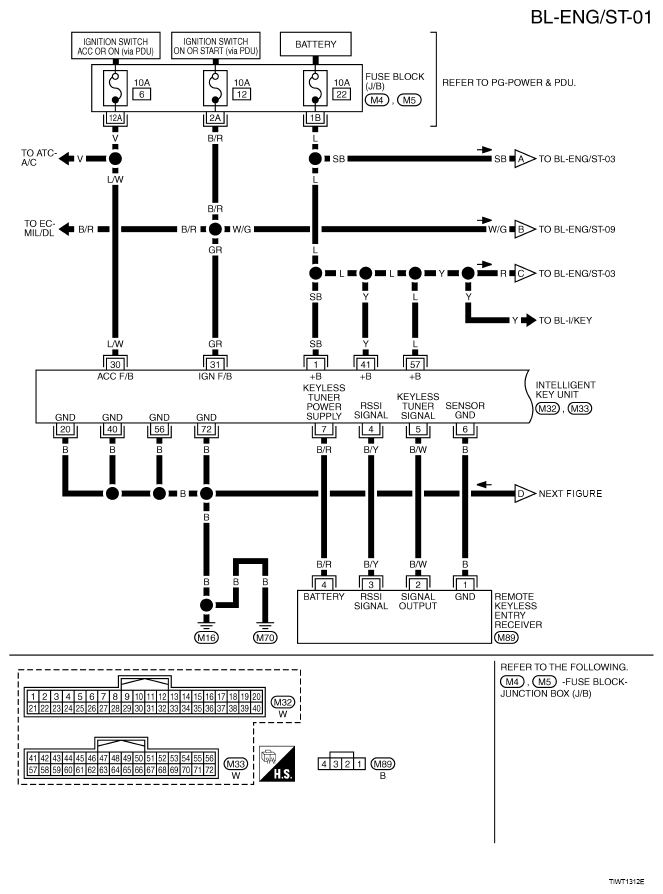

Fig 1: Wiring Diagram - ENG/ST - BL-ENG/ST-01

G05212296

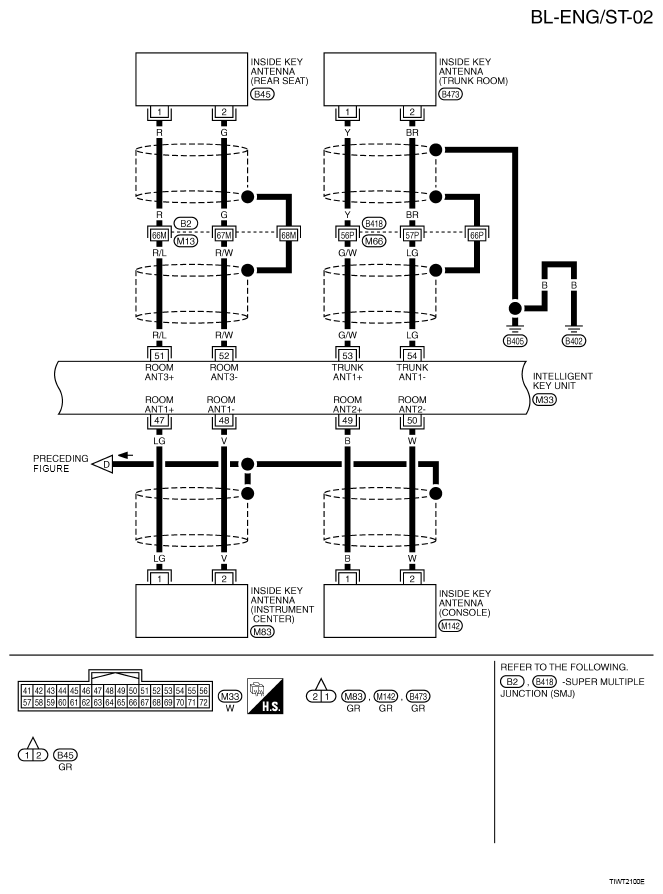

Fig 2: Wiring Diagram - ENG/ST - BL-ENG/ST-02

G05212297

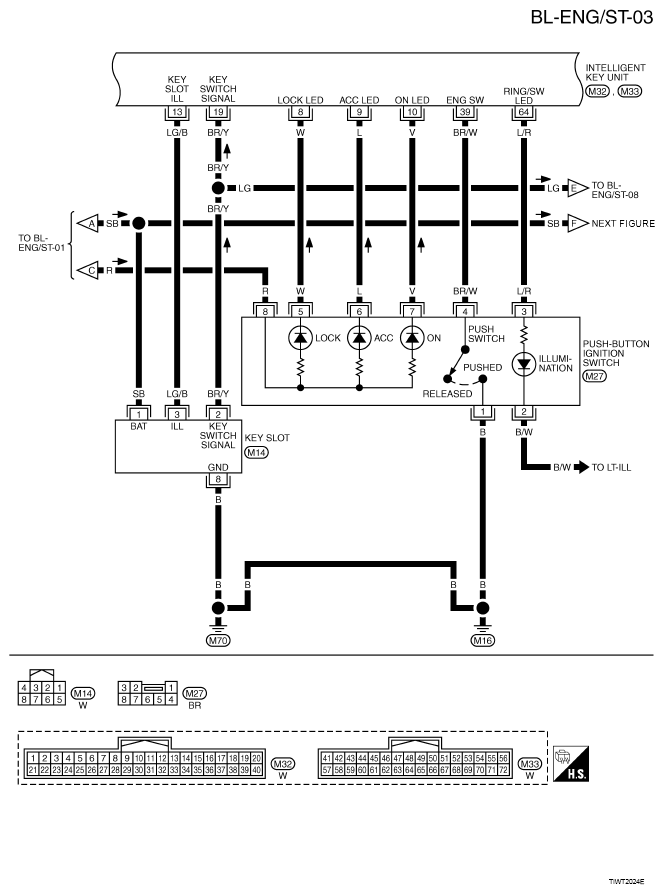

Fig 3: Wiring Diagram - ENG/ST - BL-ENG/ST-03

G05212298

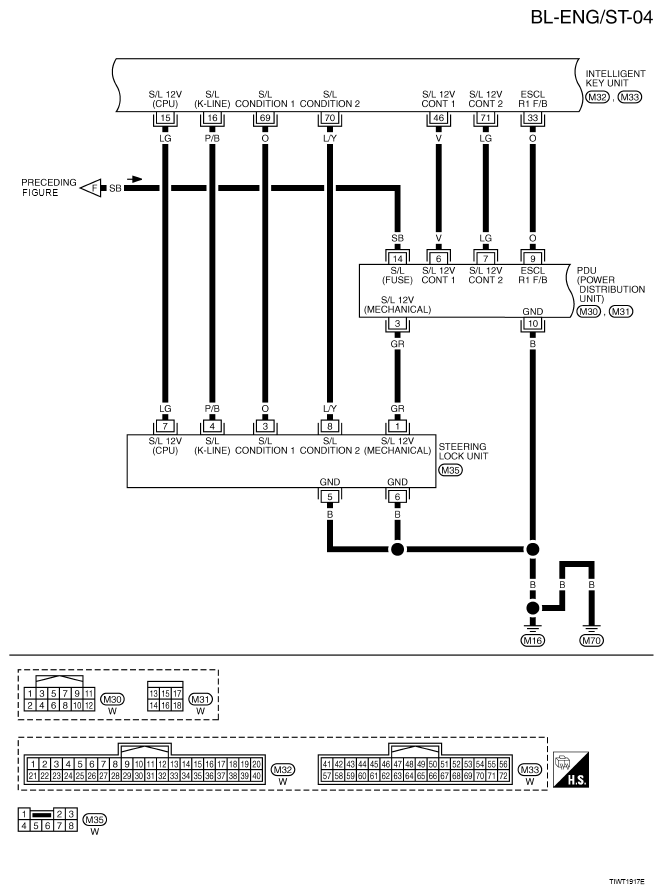

Fig 4: Wiring Diagram - ENG/ST - BL-ENG/ST-04

G05212299

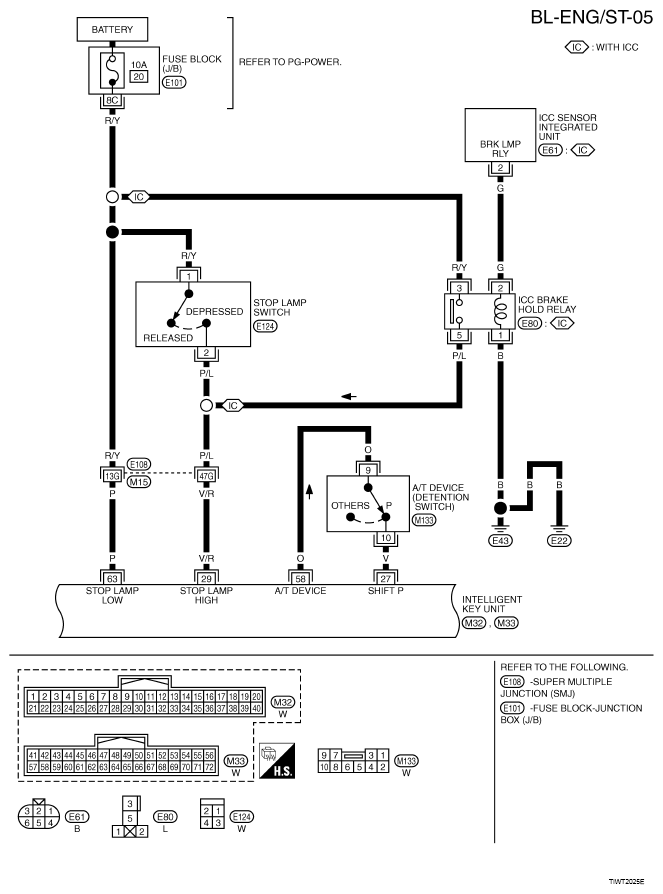

Fig 5: Wiring Diagram - ENG/ST - BL-ENG/ST-05

G05212300

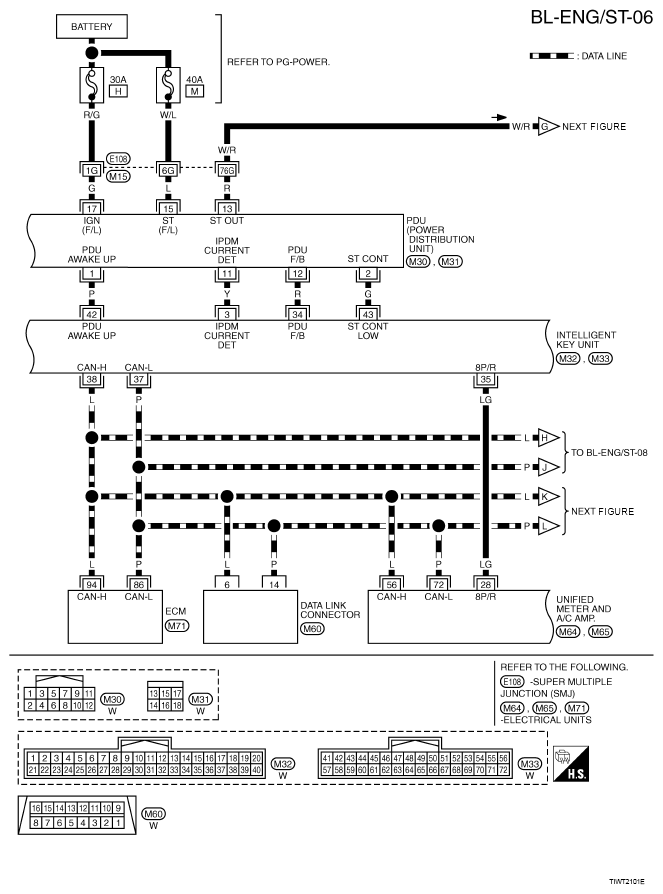

Fig 6: Wiring Diagram - ENG/ST - BL-ENG/ST-06

G05212301

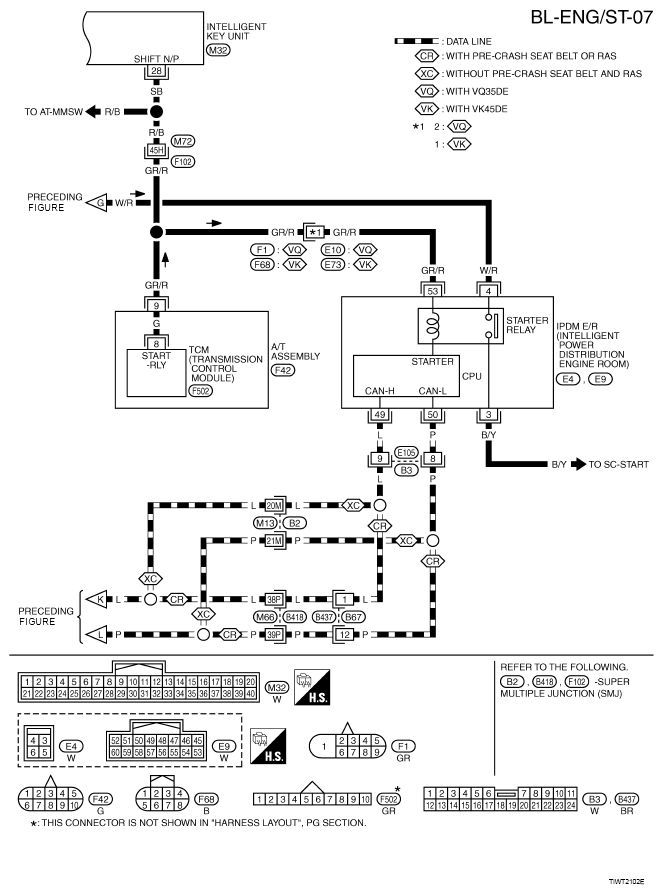

Fig 7: Wiring Diagram - ENG/ST - BL-ENG/ST-07

G05212302

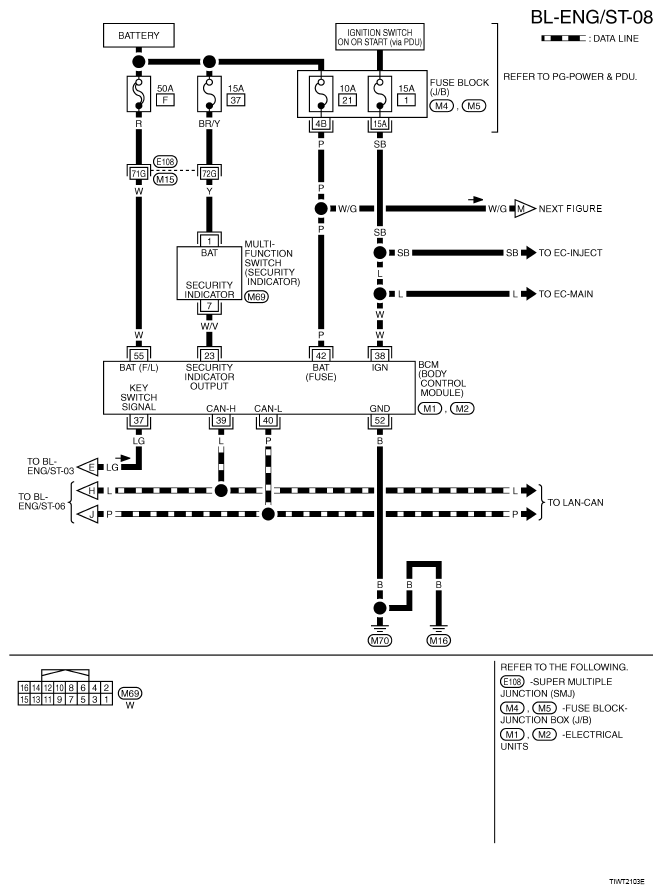

Fig 8: Wiring Diagram - ENG/ST - BL-ENG/ST-08

G05212303

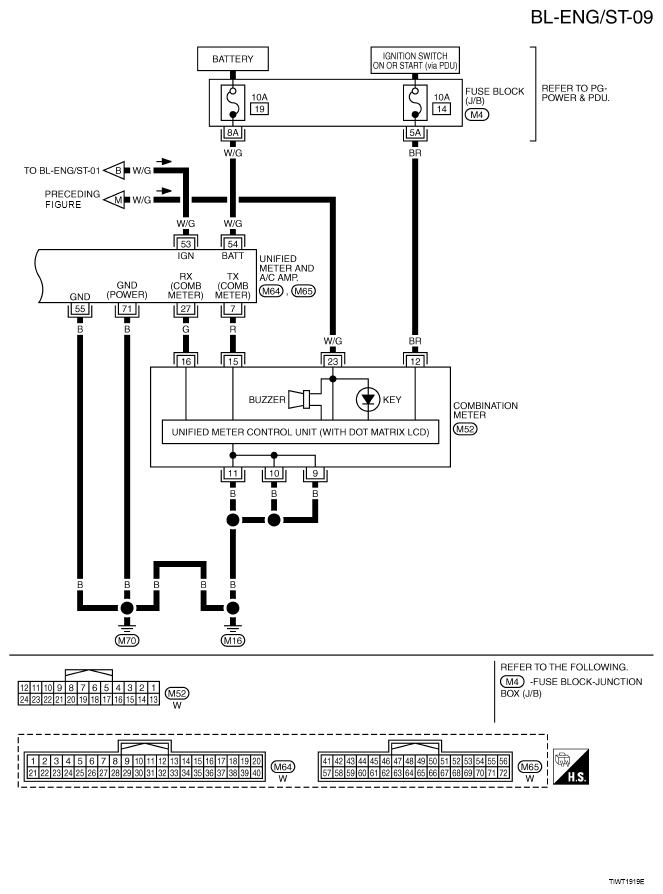

Fig 9: Wiring Diagram - ENG/ST - BL-ENG/ST-09

G05212304
