Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

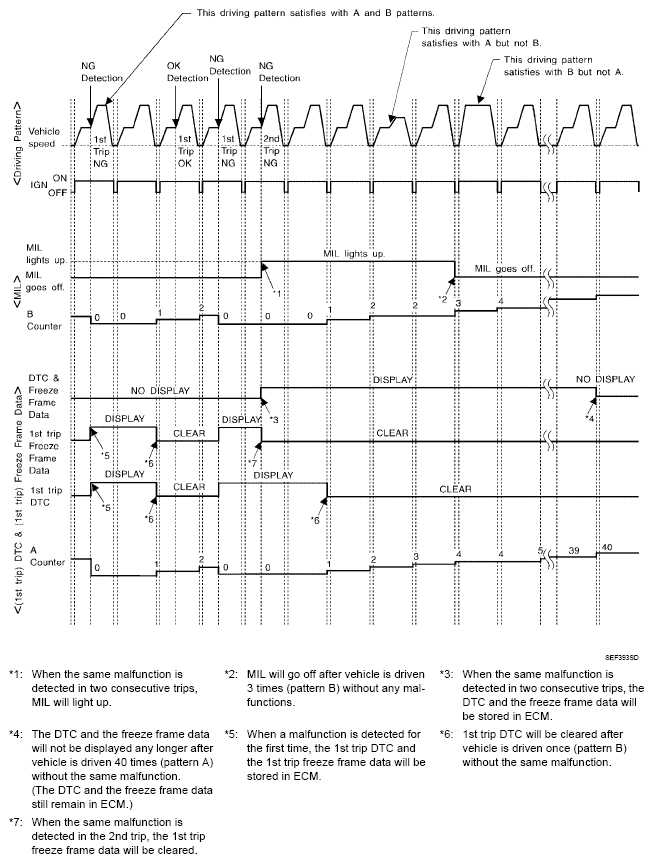

Fig 1: Relationship Graph Between MIL, DTC, 1ST Trip DTC & Driving Patterns - Except Misfire
G05228419Courtesy of NISSAN NORTH AMERICA, INC.
