Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

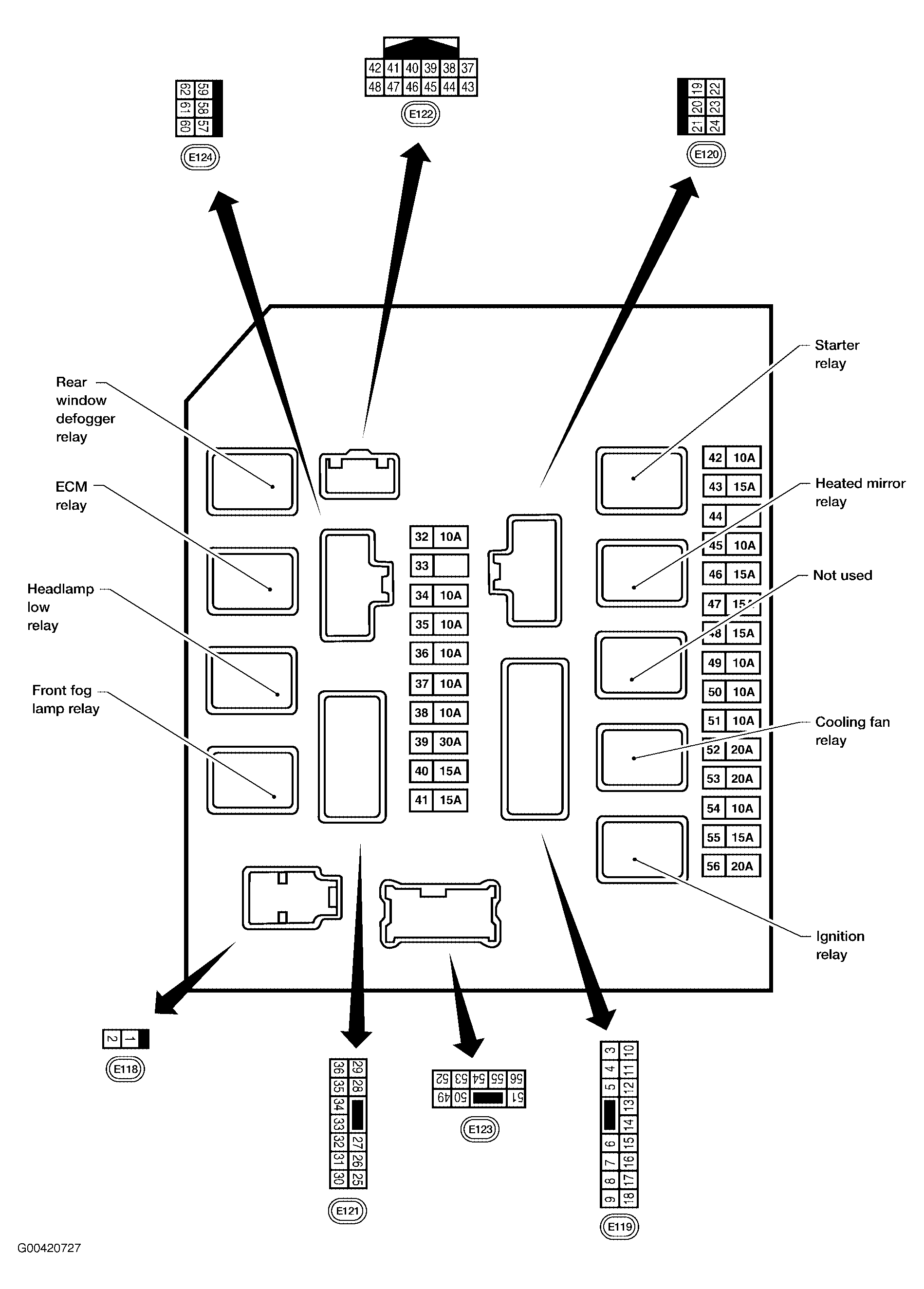

Fig 1: Intelligent Power Distribution Module

G00420727

Courtesy of NISSAN MOTOR CO., U.S.A.

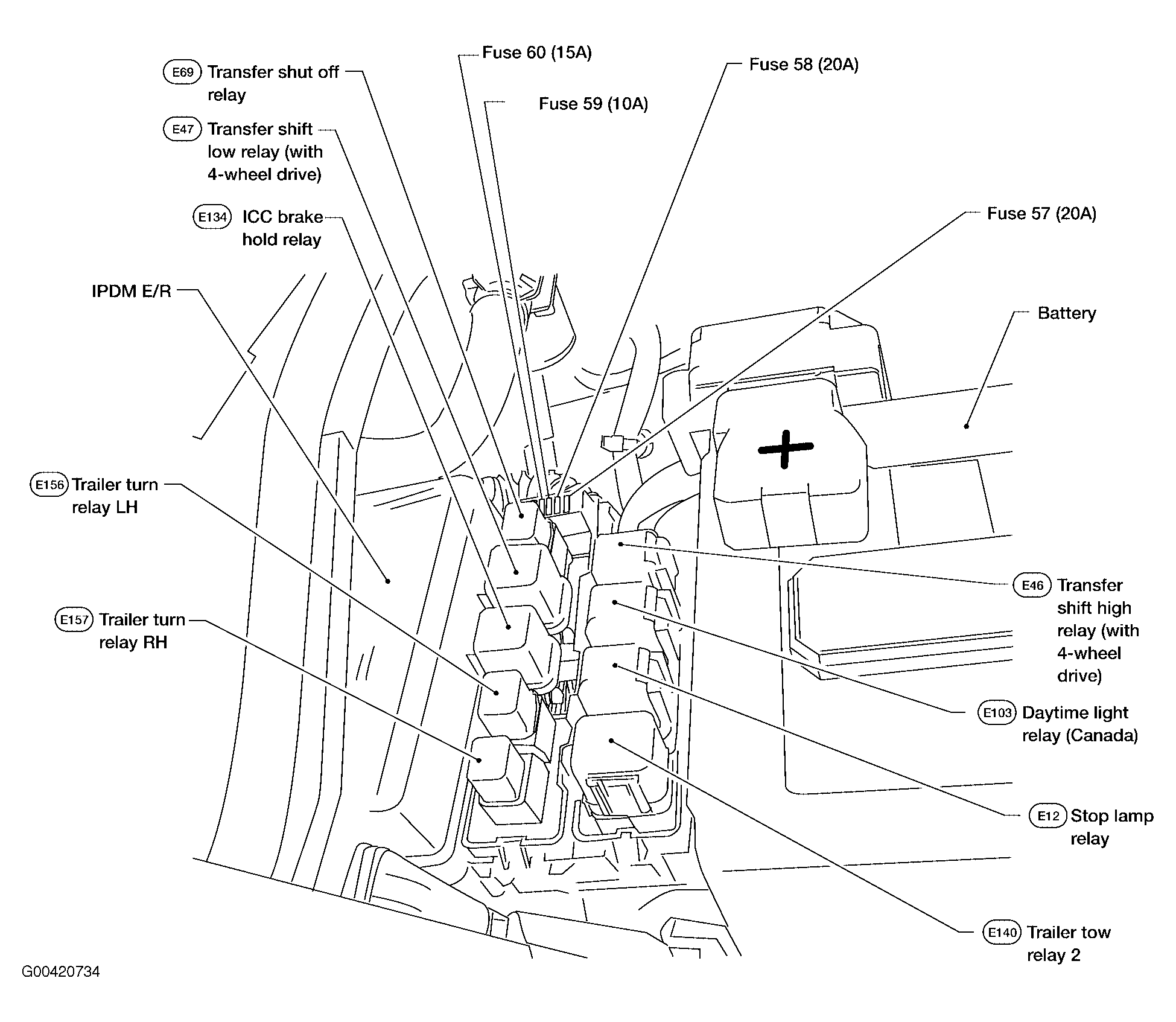

Fig 2: Right Rear Corner Of Engine Compartment

G00420734

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Passenger Compartment Components (1 Of 2)

G00292481

Courtesy of NISSAN MOTOR CO., U.S.A.

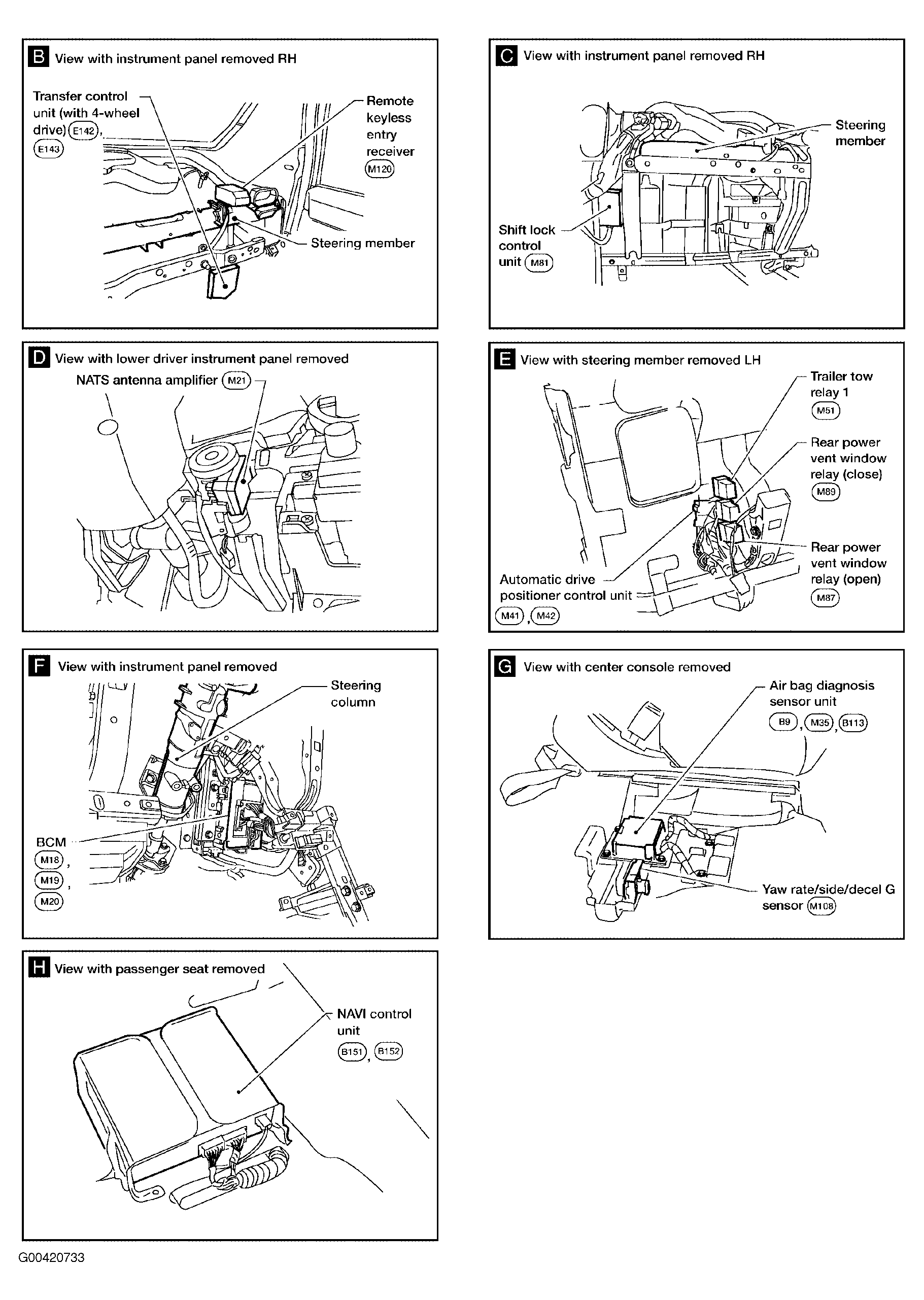

Fig 4: Passenger Compartment Components (2 Of 2)

G00420733

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Compartment

G00292480

Courtesy of NISSAN MOTOR CO., U.S.A.

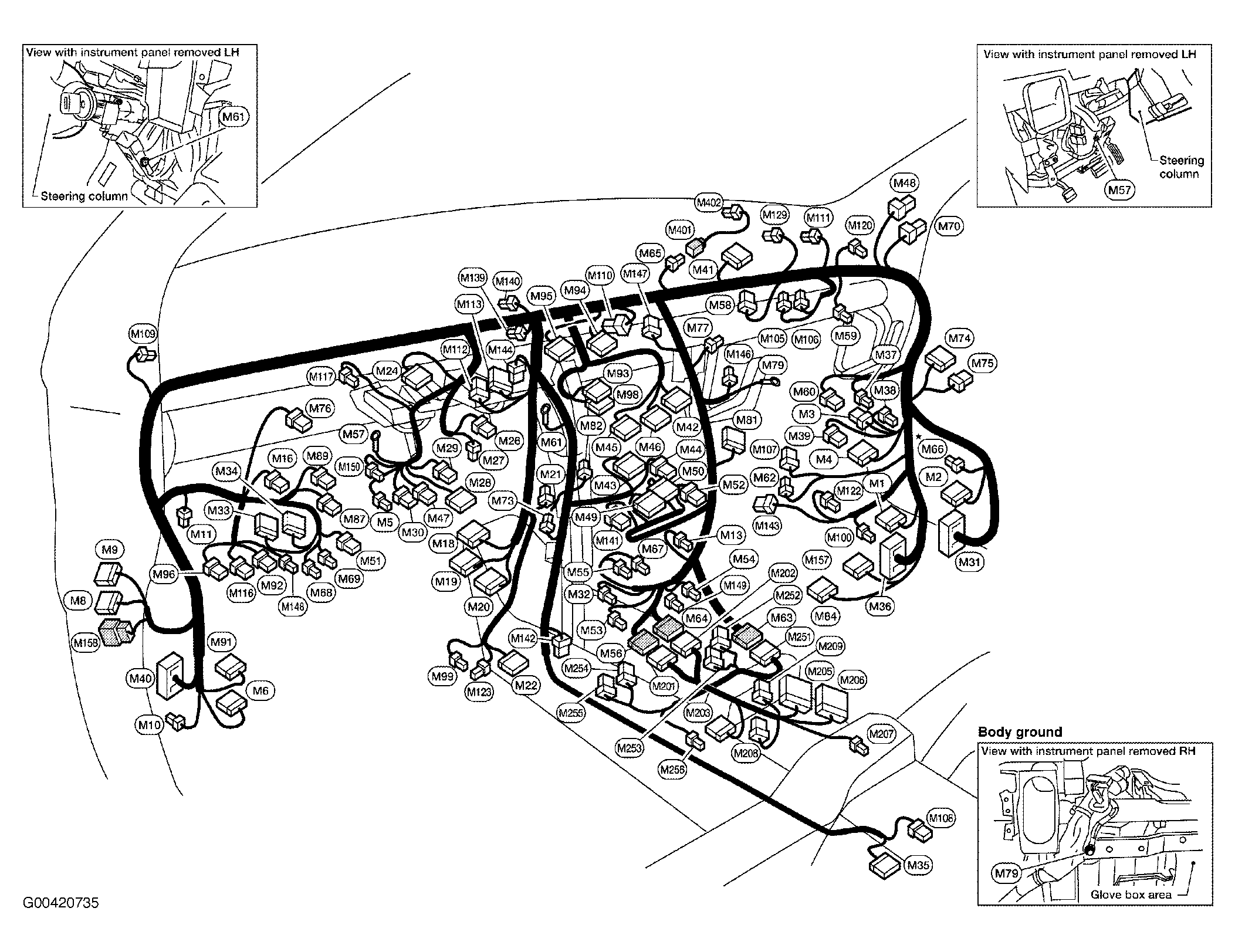

Fig 6: Dash & Center Console

G00420735

Courtesy of NISSAN MOTOR CO., U.S.A.

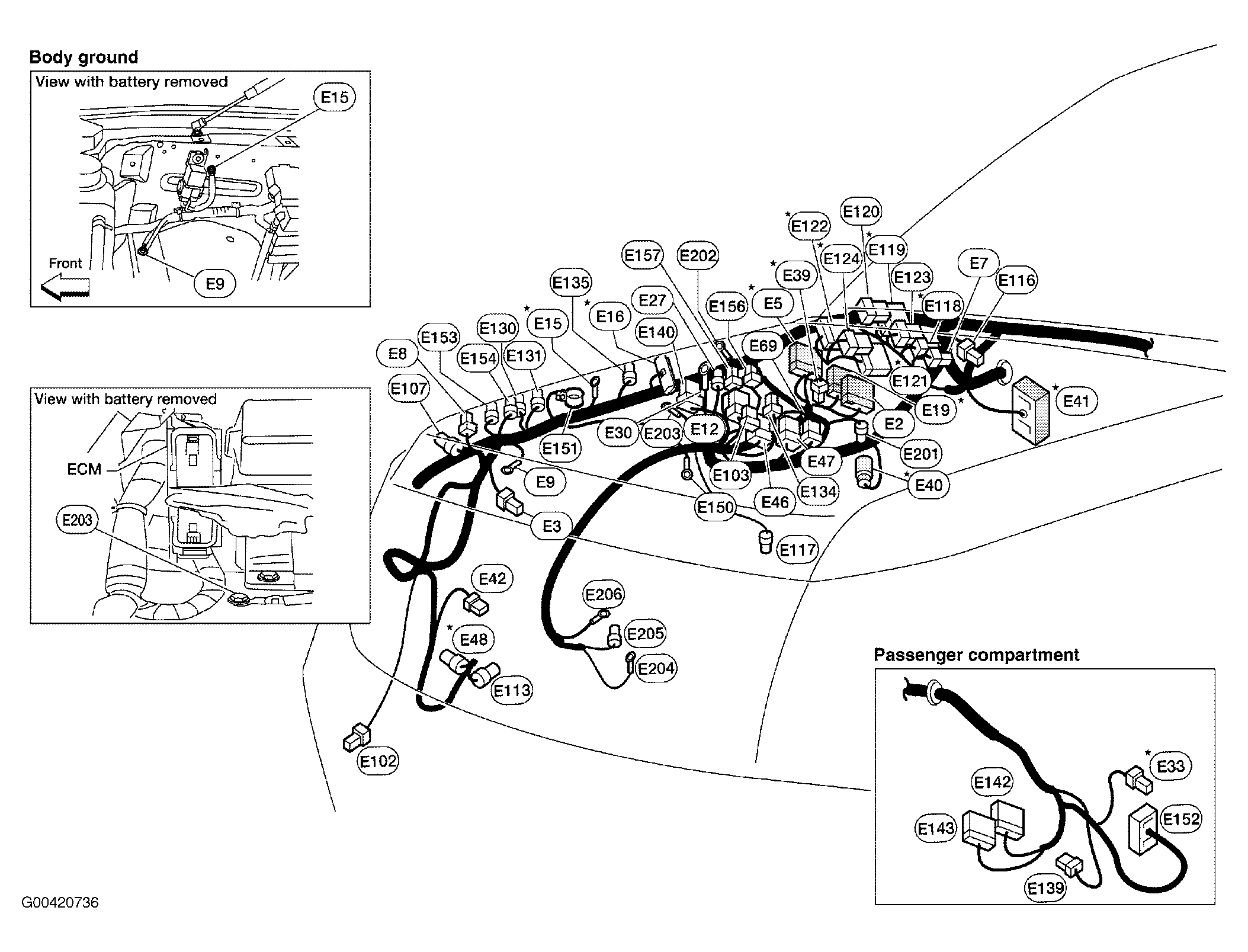

Fig 7: Right Side Of Engine Compartment

G00420736

Courtesy of NISSAN MOTOR CO., U.S.A.

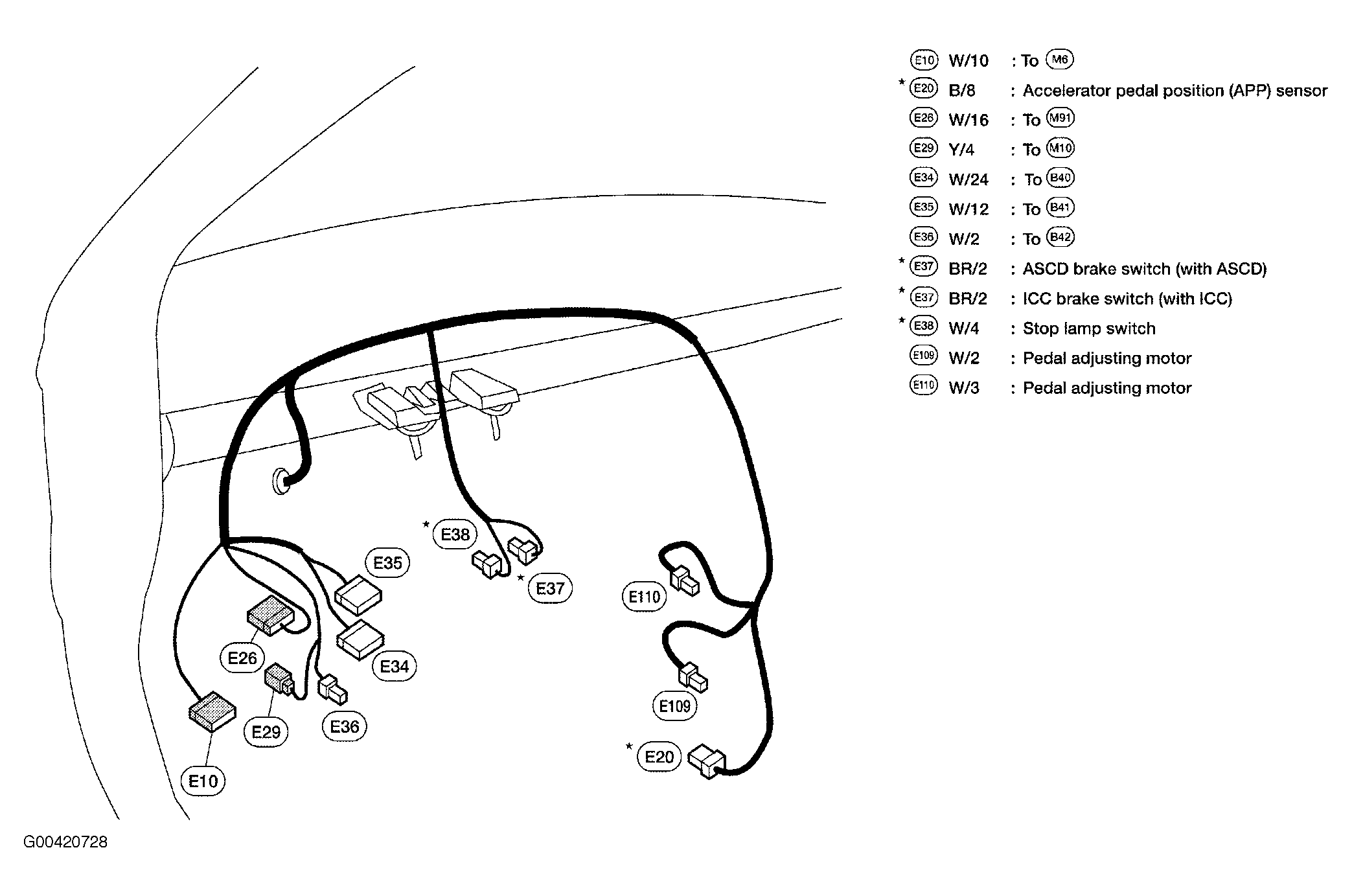

Fig 8: Left Side Of Dash

G00420728

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Left Side Of Engine Compartment

G00292464

Courtesy of NISSAN MOTOR CO., U.S.A.

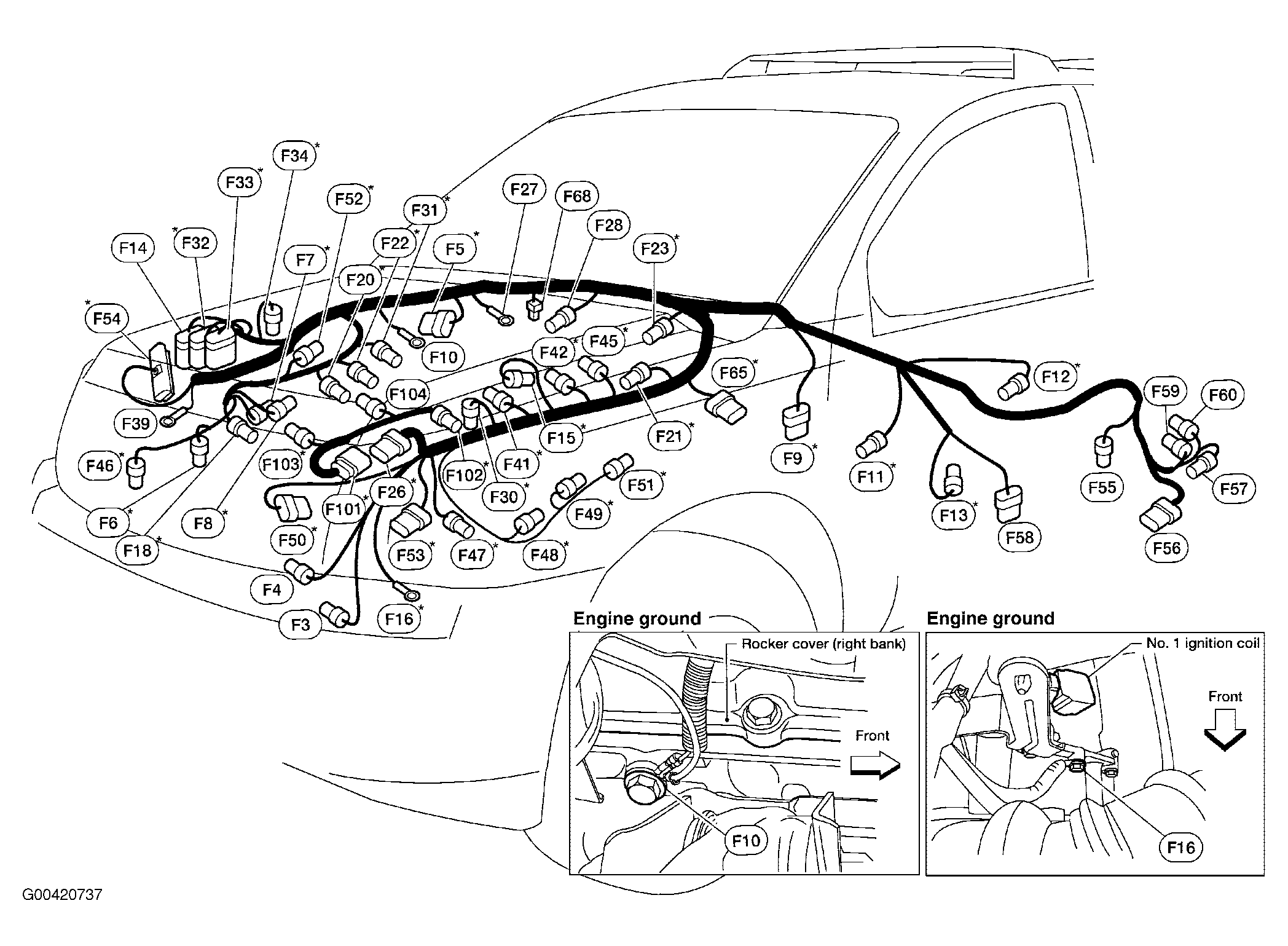

Fig 10: Engine

G00420737

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Rear Of Vehicle

G00292468

Courtesy of NISSAN MOTOR CO., U.S.A.

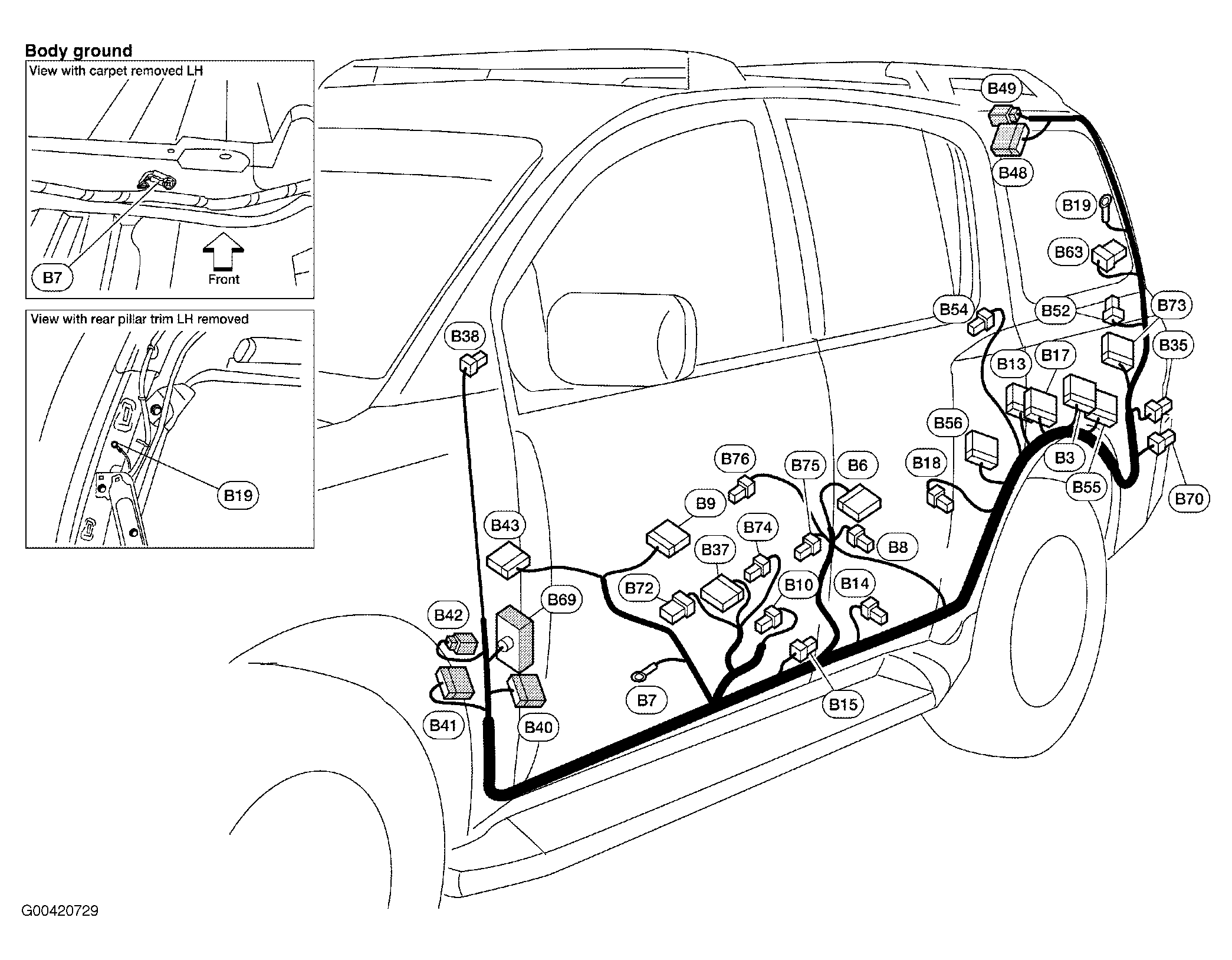

Fig 12: Left Side Of Vehicle

G00420729

Courtesy of NISSAN MOTOR CO., U.S.A.

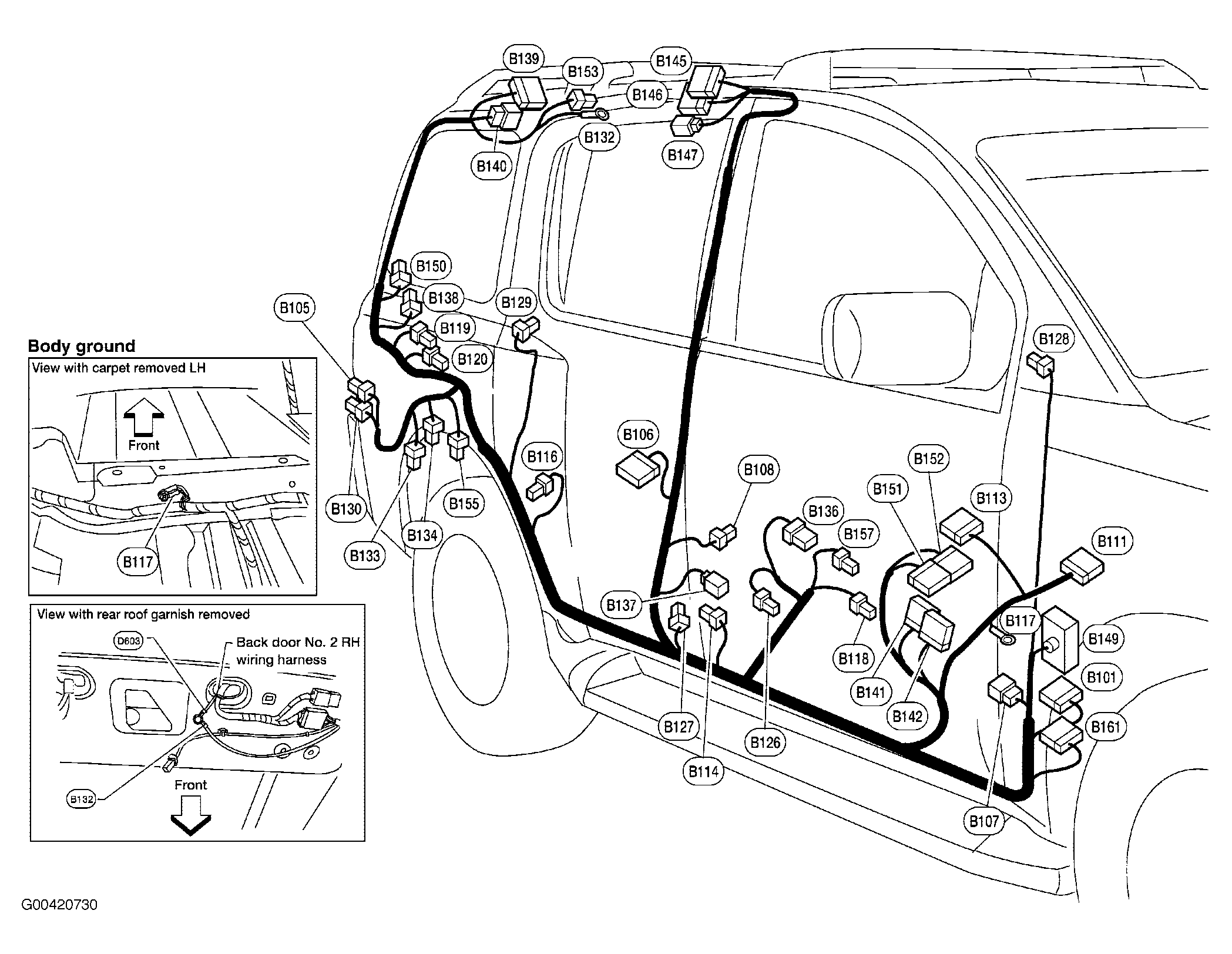

Fig 13: Right Side Of Vehicle

G00420730

Courtesy of NISSAN MOTOR CO., U.S.A.

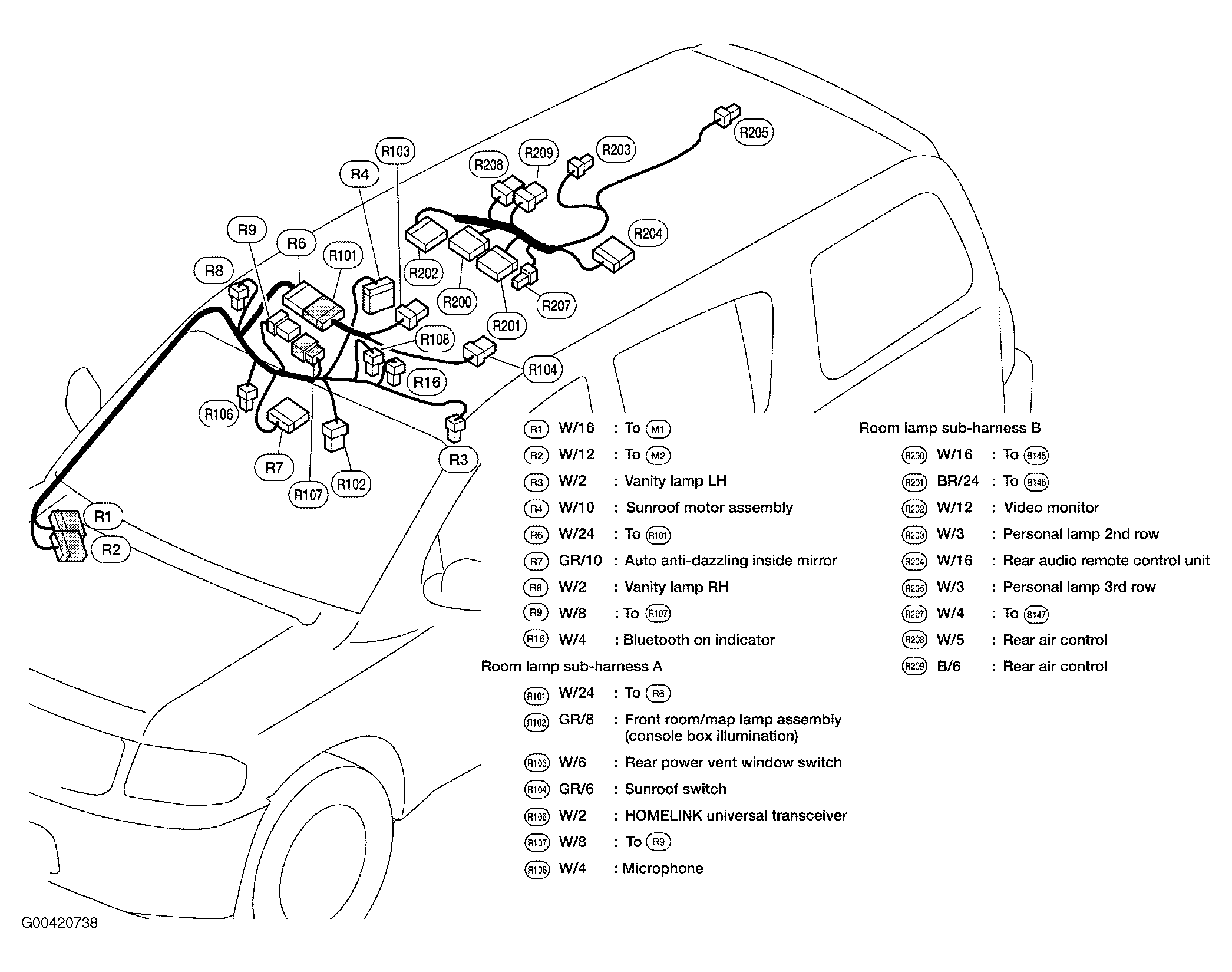

Fig 14: Roof

G00420738

Courtesy of NISSAN MOTOR CO., U.S.A.

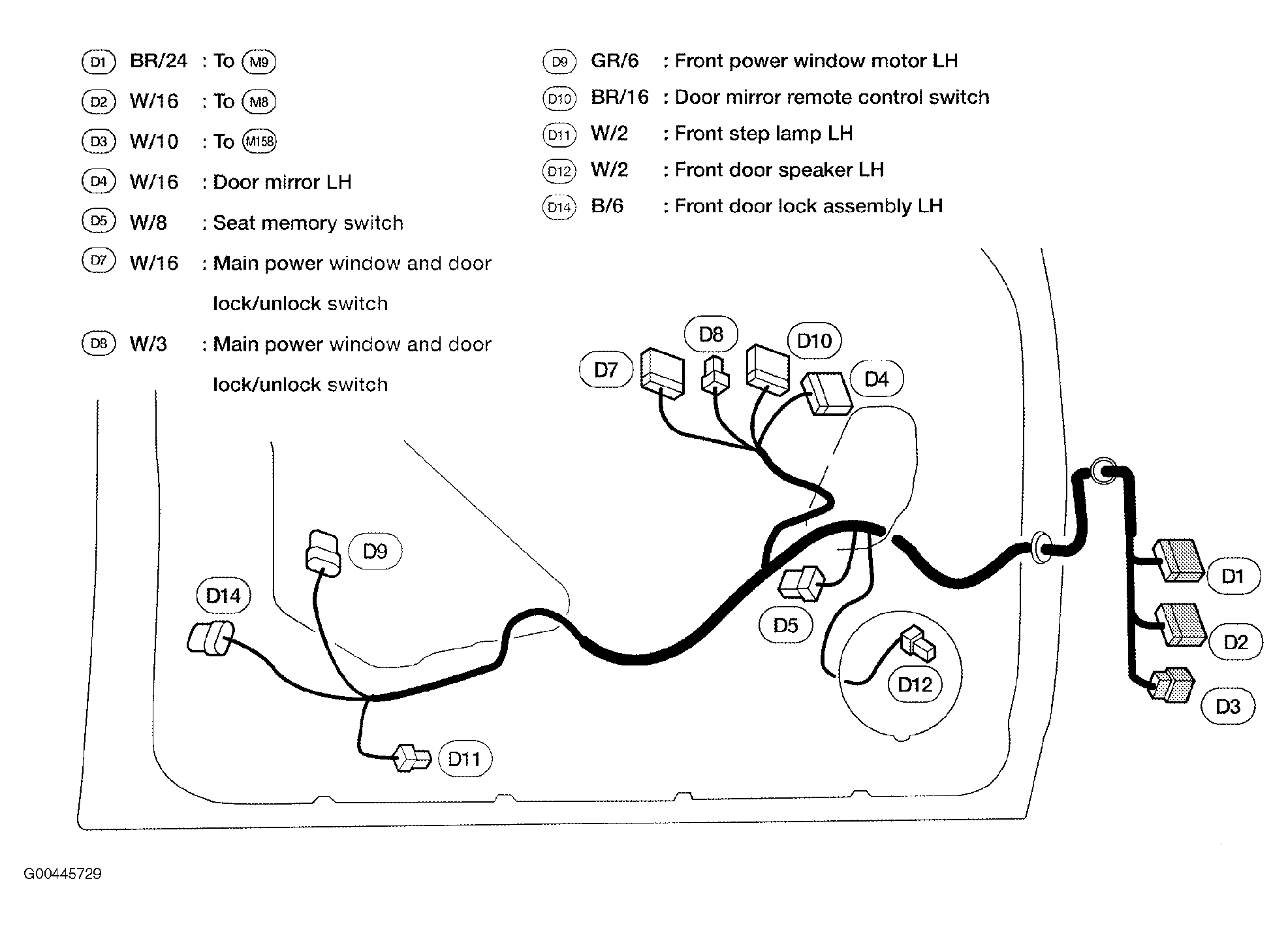

Fig 15: Left Front Door

G00445729

Courtesy of NISSAN MOTOR CO., U.S.A.

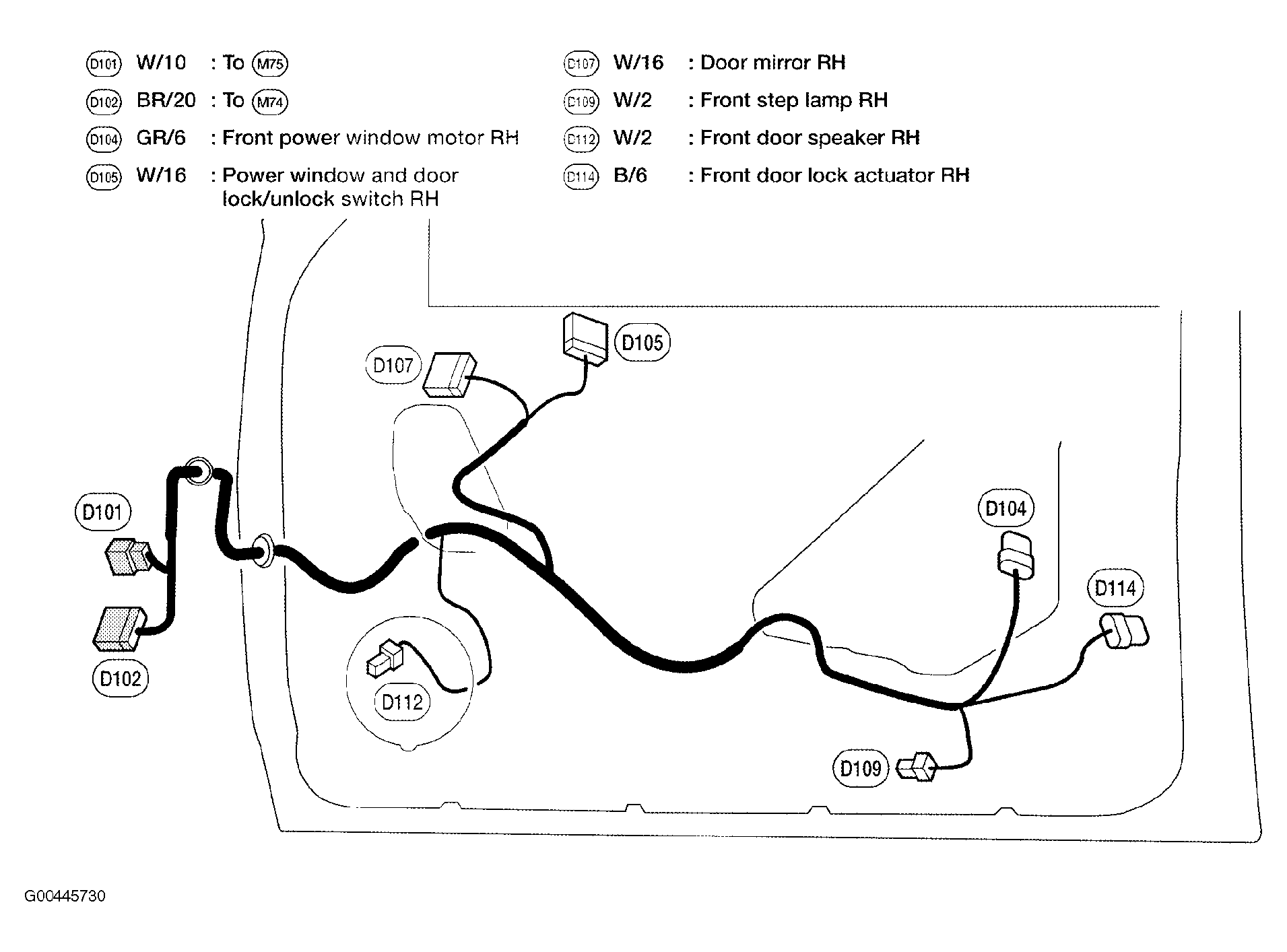

Fig 16: Right Front Door

G00445730

Courtesy of NISSAN MOTOR CO., U.S.A.

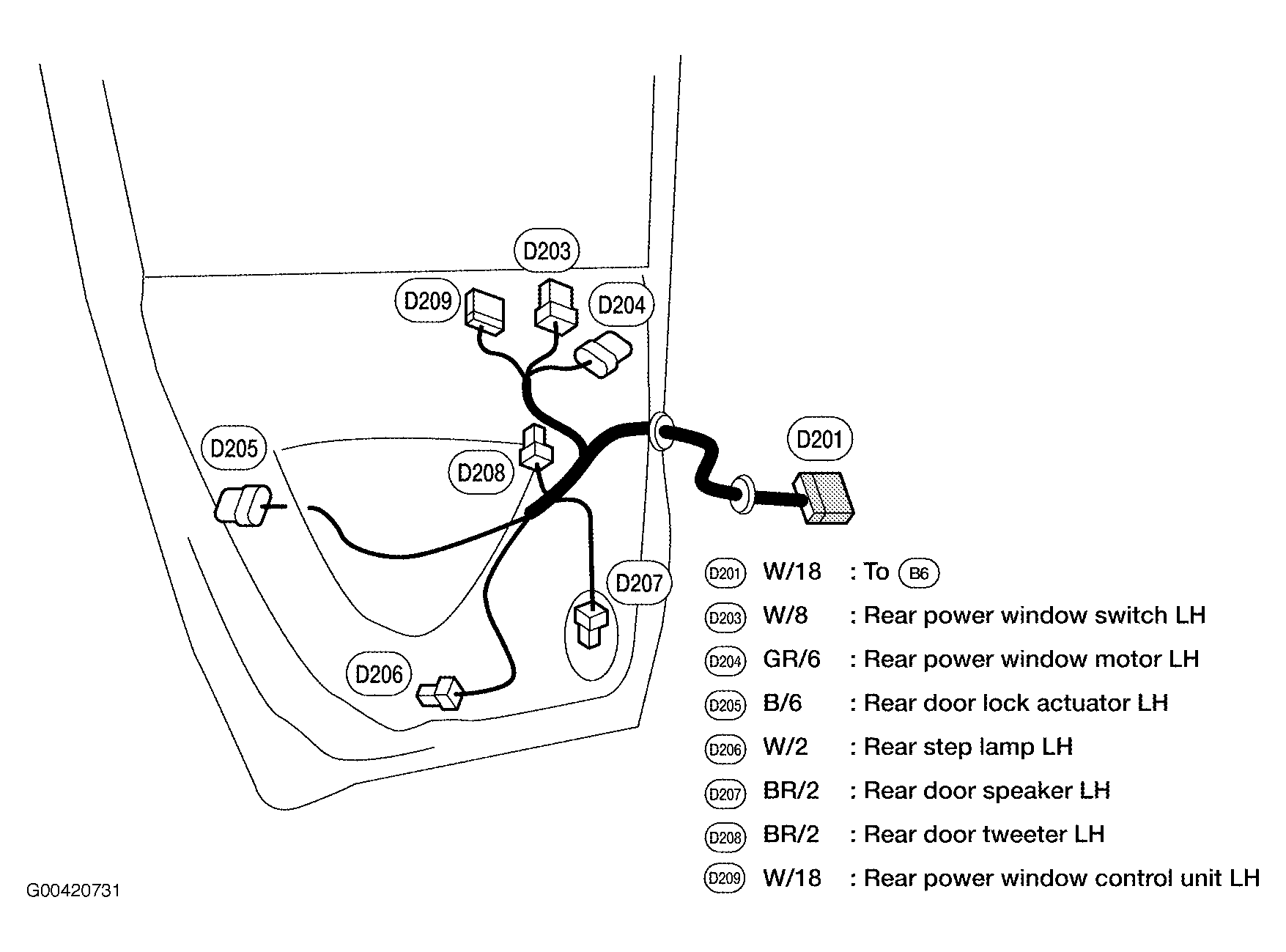

Fig 17: Left Rear Door

G00420731

Courtesy of NISSAN MOTOR CO., U.S.A.

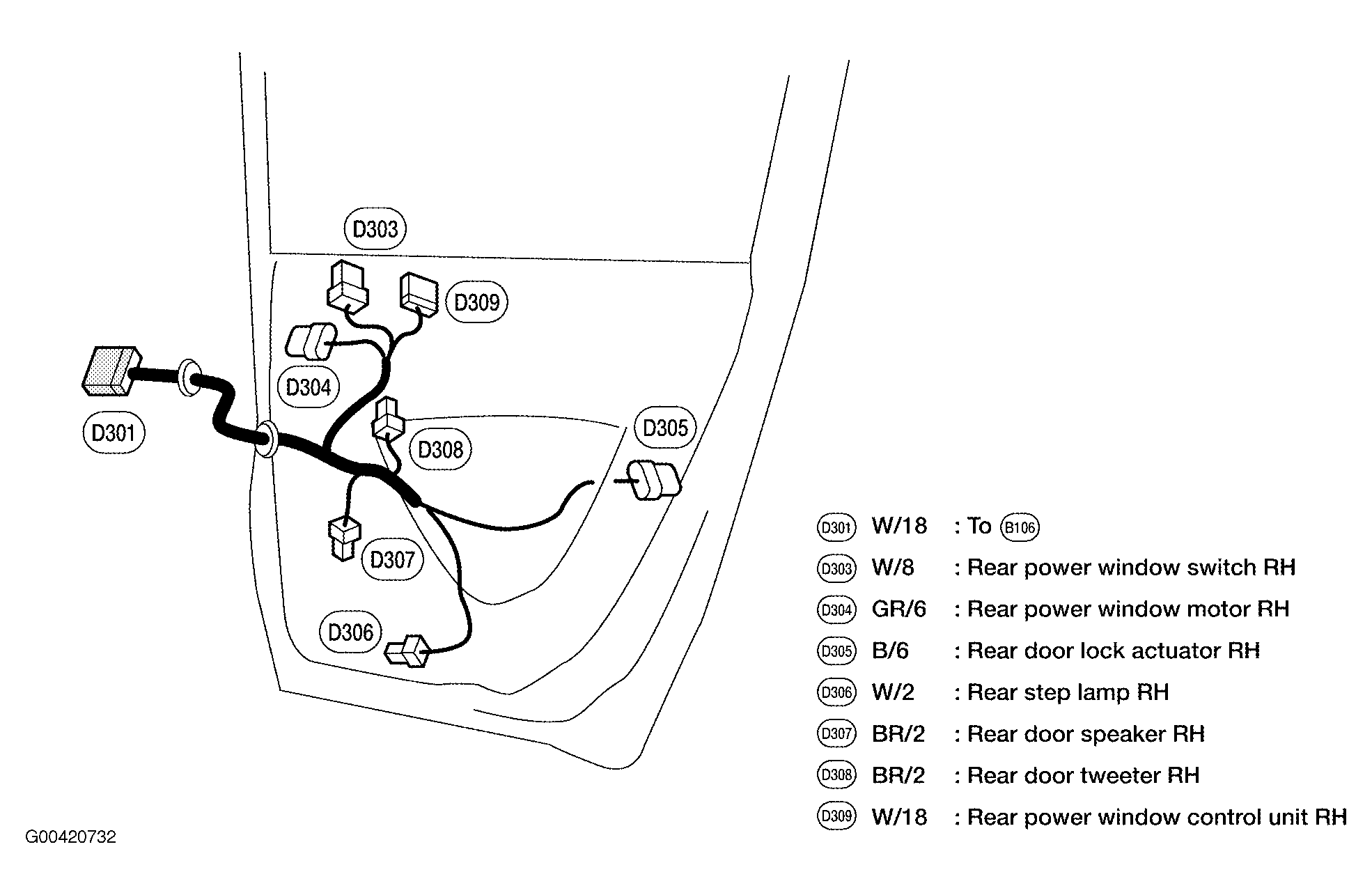

Fig 18: Right Rear Door

G00420732

Courtesy of NISSAN MOTOR CO., U.S.A.

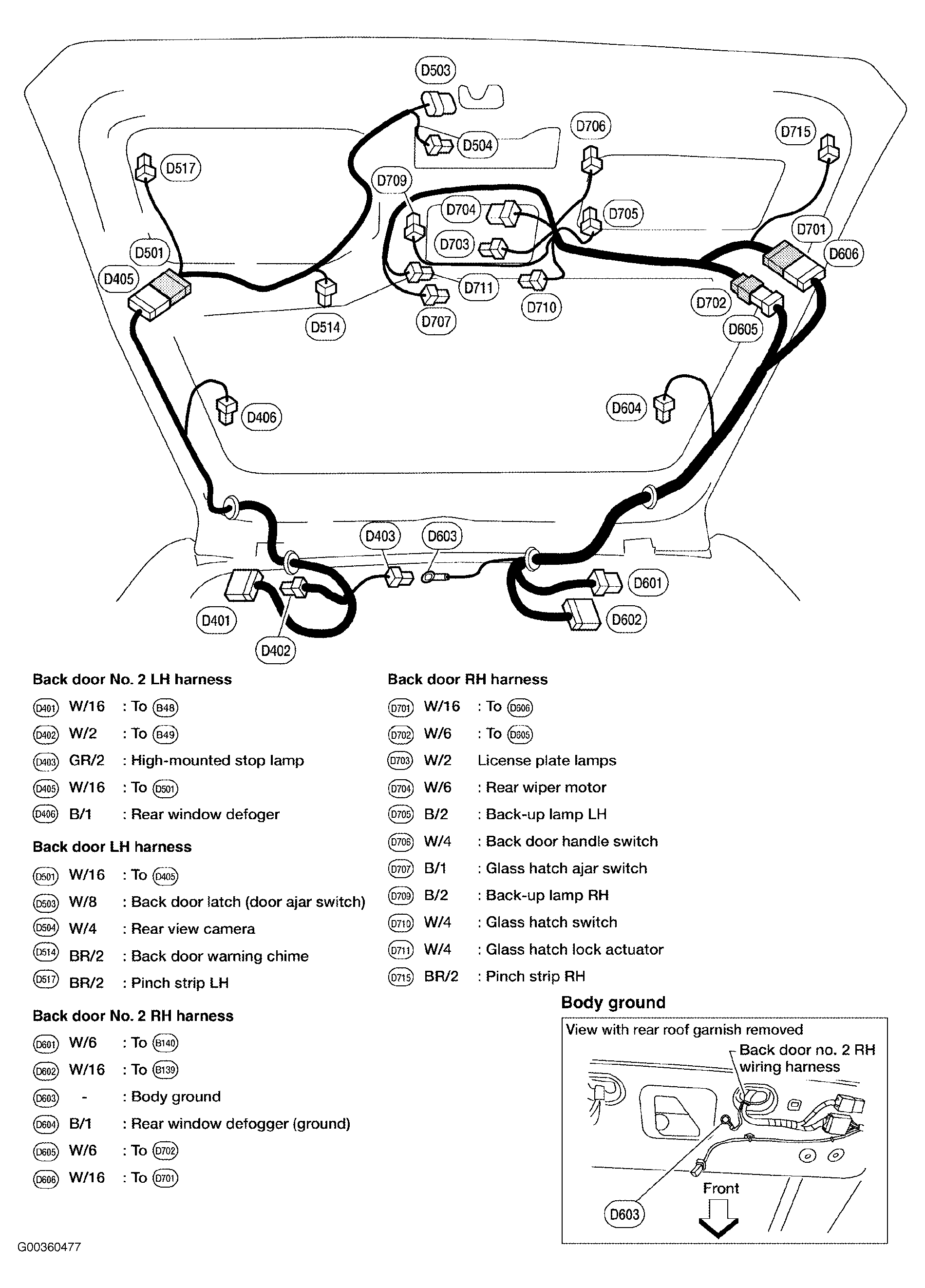

Fig 19: Back Door

G00360477

Courtesy of NISSAN MOTOR CO., U.S.A.
