Diagnostic Procedure

  1. CHECK STARTING SYSTEM

    Turn ignition switch to START position.

    Does the engine turn over?

    Does the starter motor operate?

    Yes or No

    Yes: GO TO 2.

    No: Check starting system. (Refer to "STARTING SYSTEM ".)

  2. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

      Fig 1: Checking Ground Connections
      G04900129Courtesy of NISSAN NORTH AMERICA, INC.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace ground connections.

  3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
    1. Disconnect camshaft position (CMP) sensor (PHASE) (2) harness connector.
      • Radiator hose (1)
    2. Turn ignition switch ON.

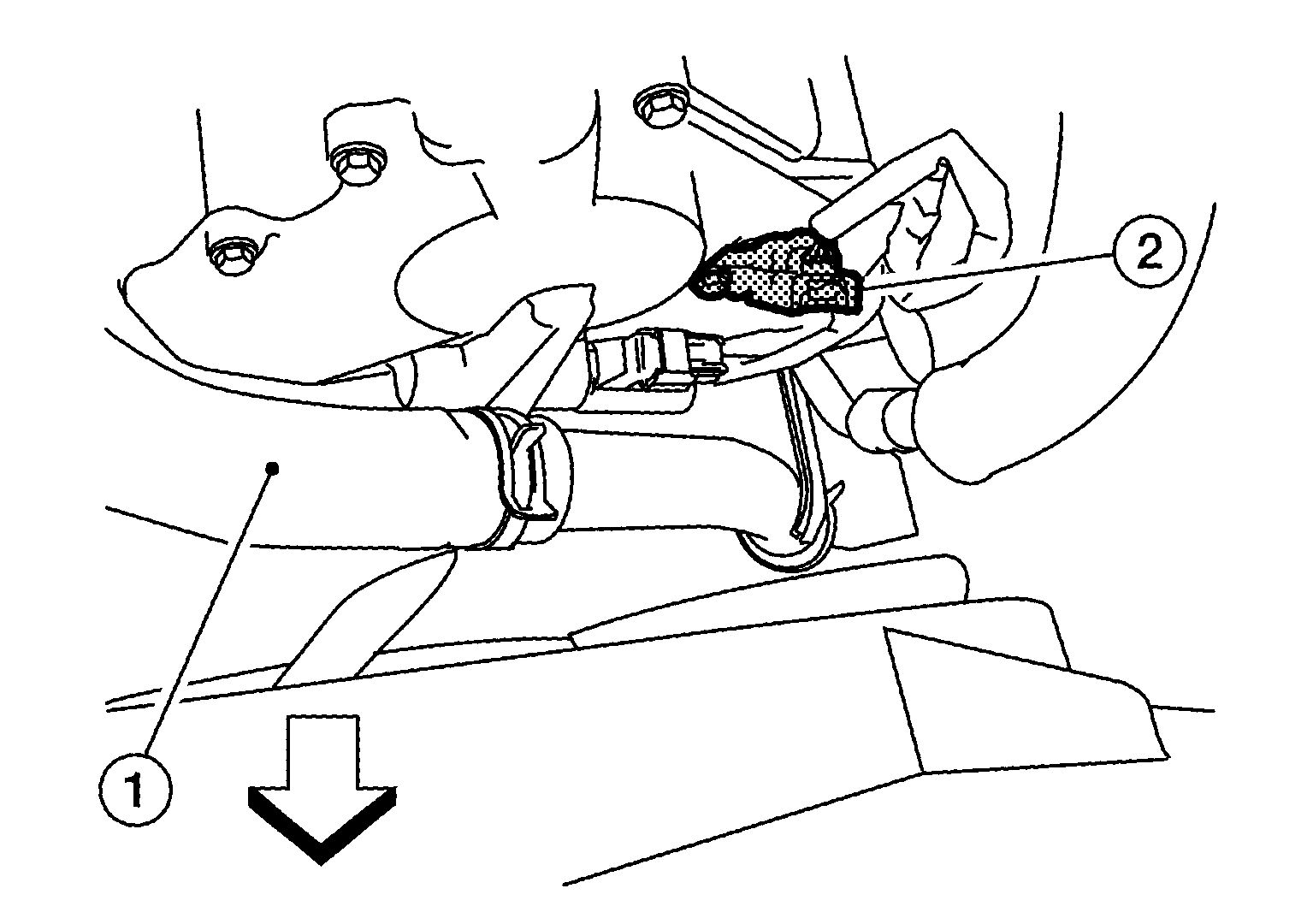

      Fig 2: Identifying Camshaft Position (CMP) Sensor (PHASE) (2) Harness Connector And Radiator Hose
      G04900425Courtesy of NISSAN NORTH AMERICA, INC.
    3. Check voltage between CMP sensor (PHASE) terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  5.

    NG: GO TO 4.

    Fig 3: Checking Voltage Between CKP Sensor (POS) Terminal 3 And Ground
    G04900415Courtesy of NISSAN NORTH AMERICA, INC.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F32, E2
    • Harness for open or short between camshaft position sensor (PHASE) and ECM
    • Harness for open or short between camshaft position sensor (PHASE) and IPDM E/R

      Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between CMP sensor (PHASE) terminal 1 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    OK: GO TO  7.

    NG: GO TO 6.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F32, E2
    • Harness for open or short between CMP sensor (PHASE) and ground

      Repair open circuit or short to power in harness or connectors.

  7. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 14 and CMP sensor (PHASE) terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 8.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK CAMSHAFT POSITION SENSOR (PHASE)

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO 9.

    NG: Replace camshaft position sensor (PHASE).

  9. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    INSPECTION END
