Vacuum Hose Drawing

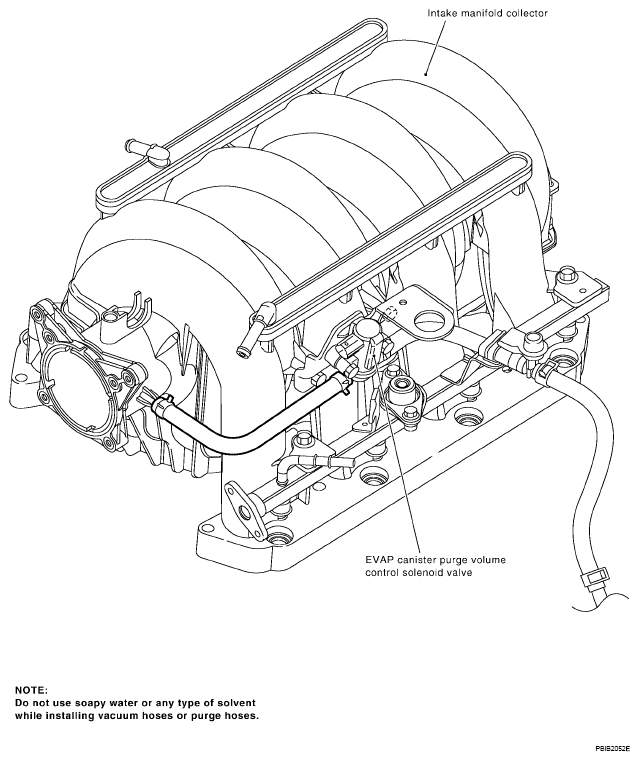

Fig 1: Vacuum Hose Drawing
G04900080Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
