Disassembly and Assembly: Notes

For GI, go to GENERAL INFORMATION .

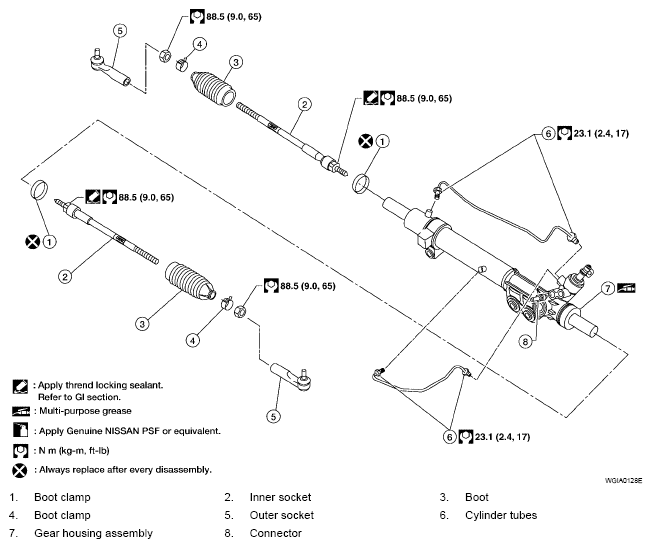

Fig 1: Steering Hydraulic System Replacement Components With Torque Specifications
G05230591
CAUTION:
  • Secure steering gear assembly with a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
  • Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.
