Cross-Sectional View (2WD models)

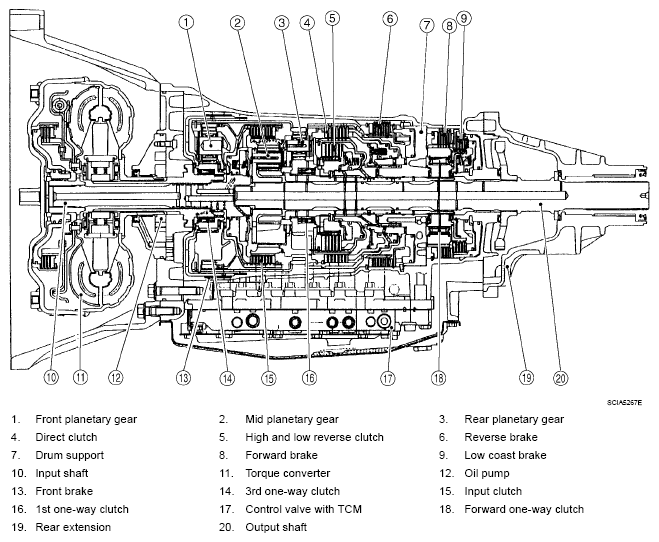

Fig 1: Cross-Sectional View Of A/T Control System (2WD Models)

G05229288
