Automatic Transmission: Overhaul: Components

Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

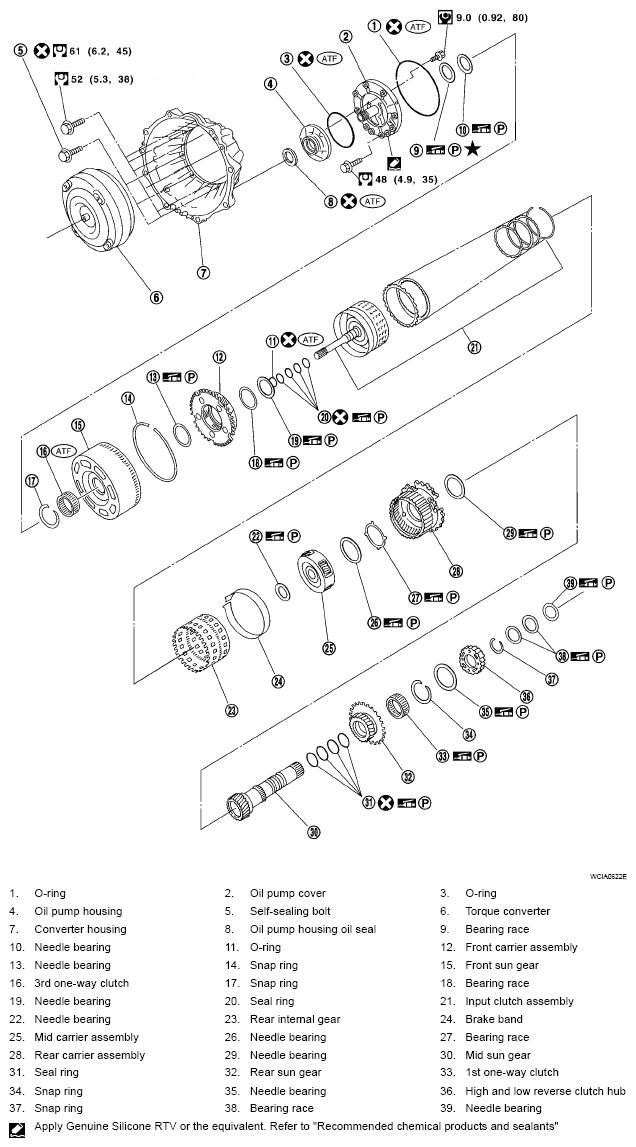

Fig 1: Exploded View Of Transmission Assembly Components With Torque Specifications (1 Of 2)
G05229565

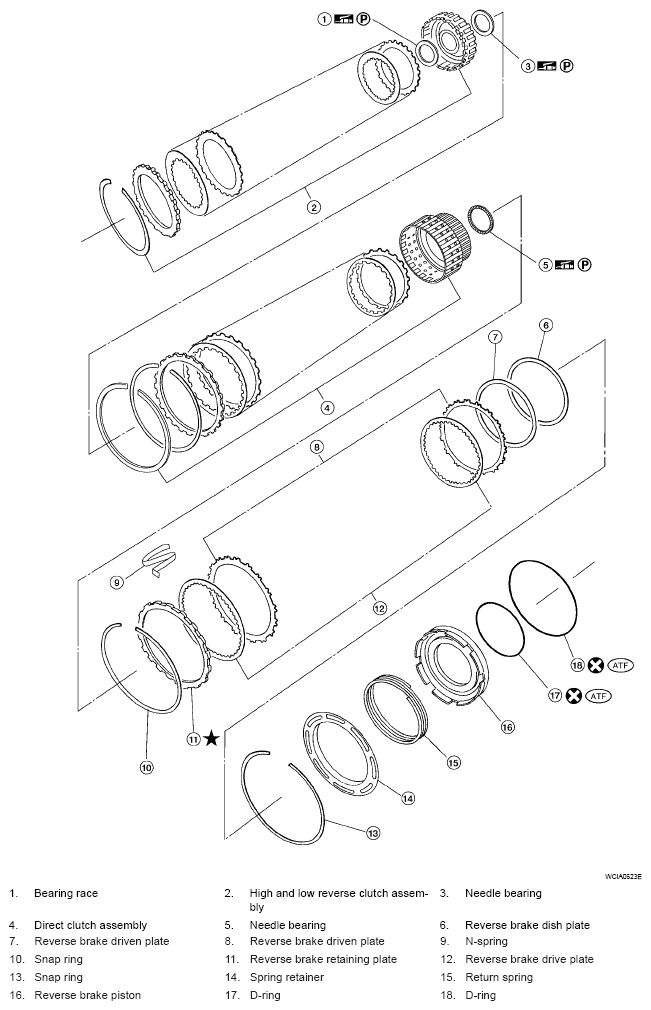

Fig 2: Exploded View Of Transmission Assembly Components (2 Of 2)
G05229566

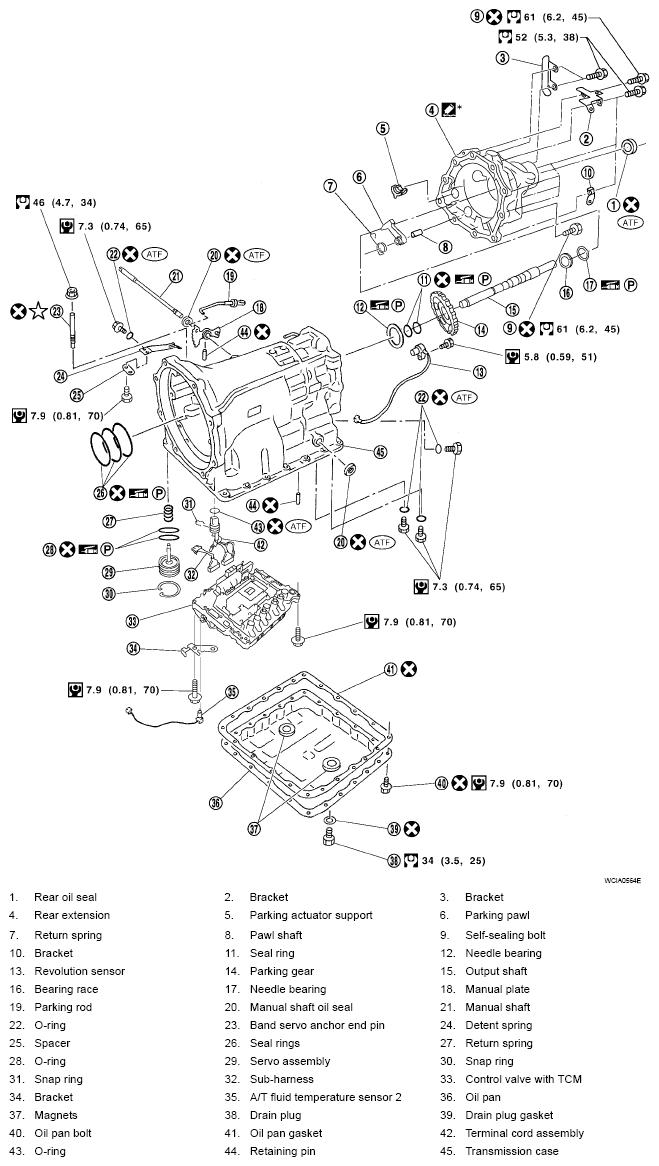

Fig 3: Exploded View Of Transmission Assembly Components - 2WD Models
G05229567

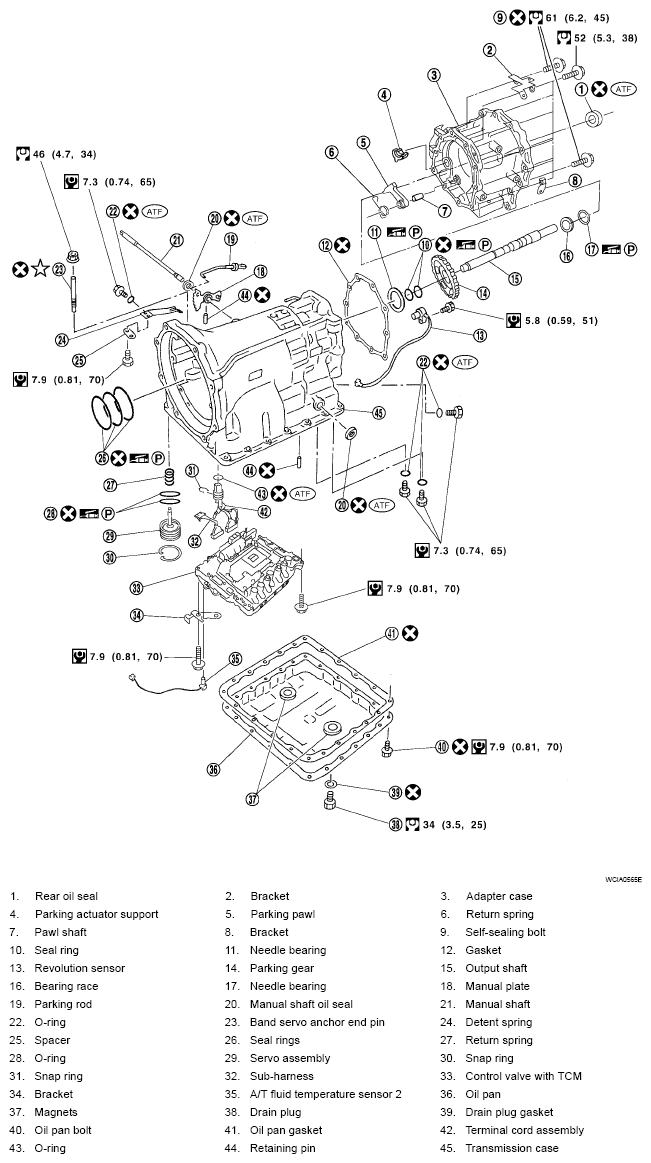

Fig 4: Exploded View Of Transmission Assembly Components - 4WD Models
G05229568
