Oil Pump: Components: Notes

For GI, go to GENERAL INFORMATION .

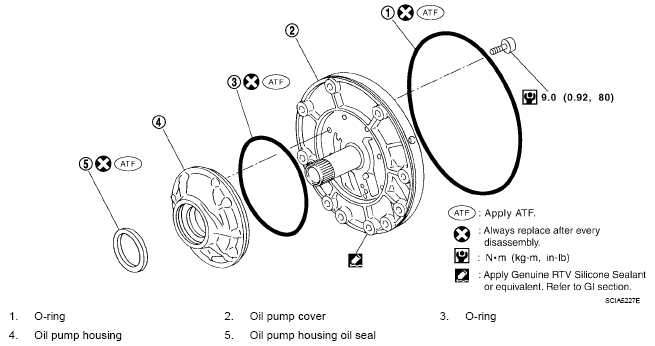

Fig 1: Oil Pump Replacement Components With Torque Specifications

G05229649
