Control Device Removal and Installation: Notes

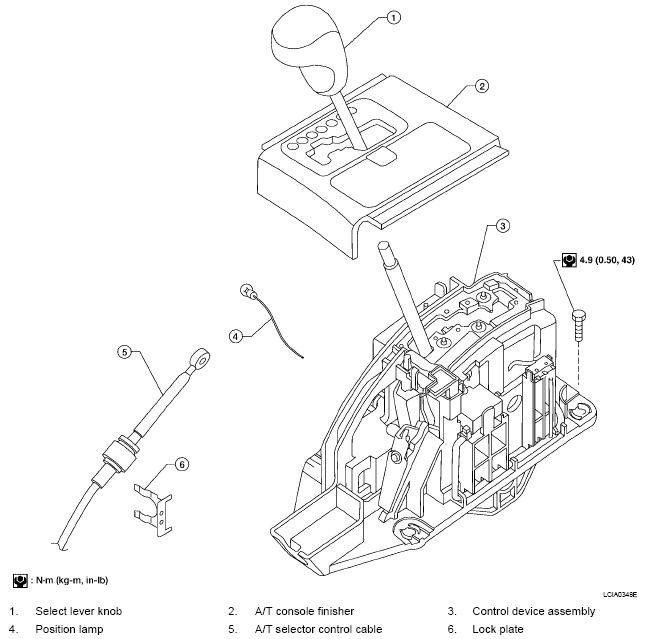

Fig 1: Shift Control System Replacement Components With Torque Specifications
