Removal and Installation (4WD): Components: Notes

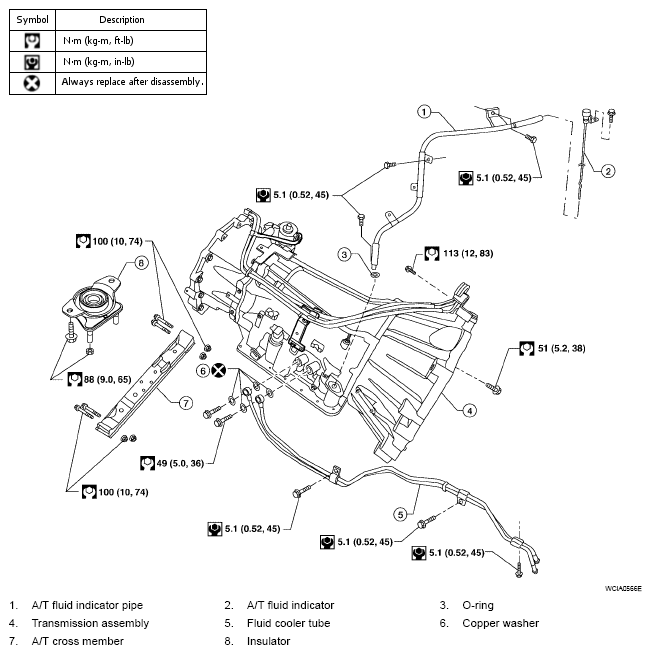

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (4WD)
G05229558
