System - Engine Mechanical & Other

Fig 1: Symptom Matrix Chart (3 Of 4)
G05228452Courtesy of NISSAN NORTH AMERICA, INC.

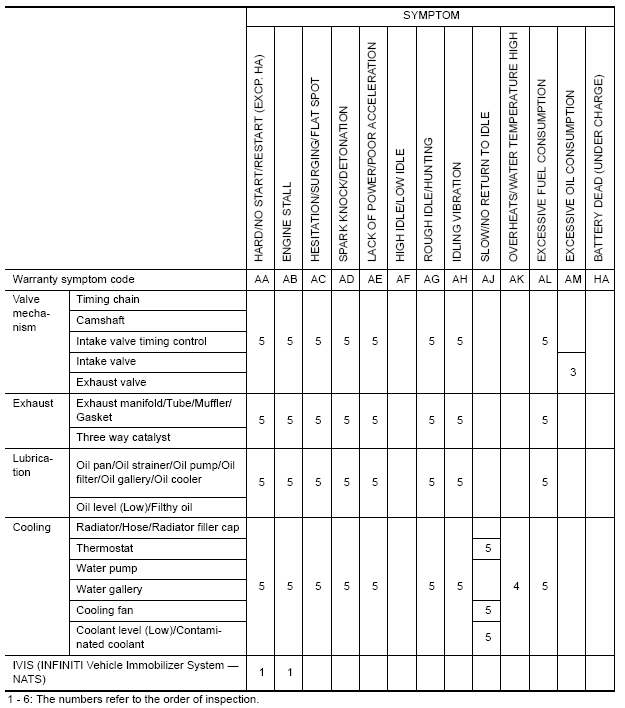

Fig 2: Symptom Matrix Chart (4 Of 4)
G05228453Courtesy of NISSAN NORTH AMERICA, INC.
