Data Monitor

NOTE:
  • The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
  • SIGNAL B, SIGNAL C are displayed, but not used.

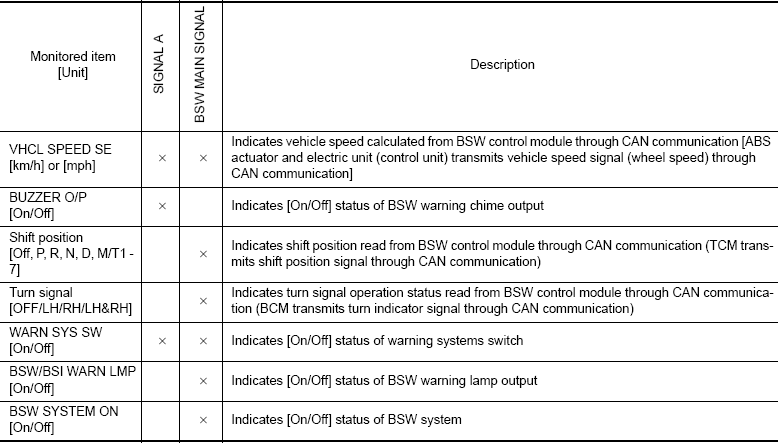

Fig 1: Self Diagnostic Result Data Monitor Item Chart
G08999354Courtesy of NISSAN NORTH AMERICA, INC.
