Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Transmission
>>
Unit Disassembly And Assembly
>>
Direct Clutch
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

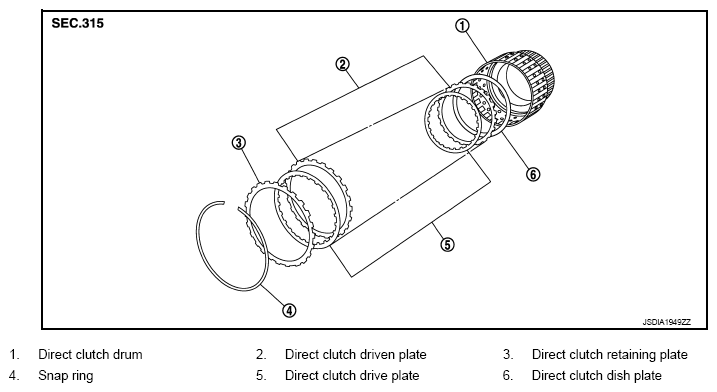

Fig 1: Exploded View Of Direct Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
