AWD Models

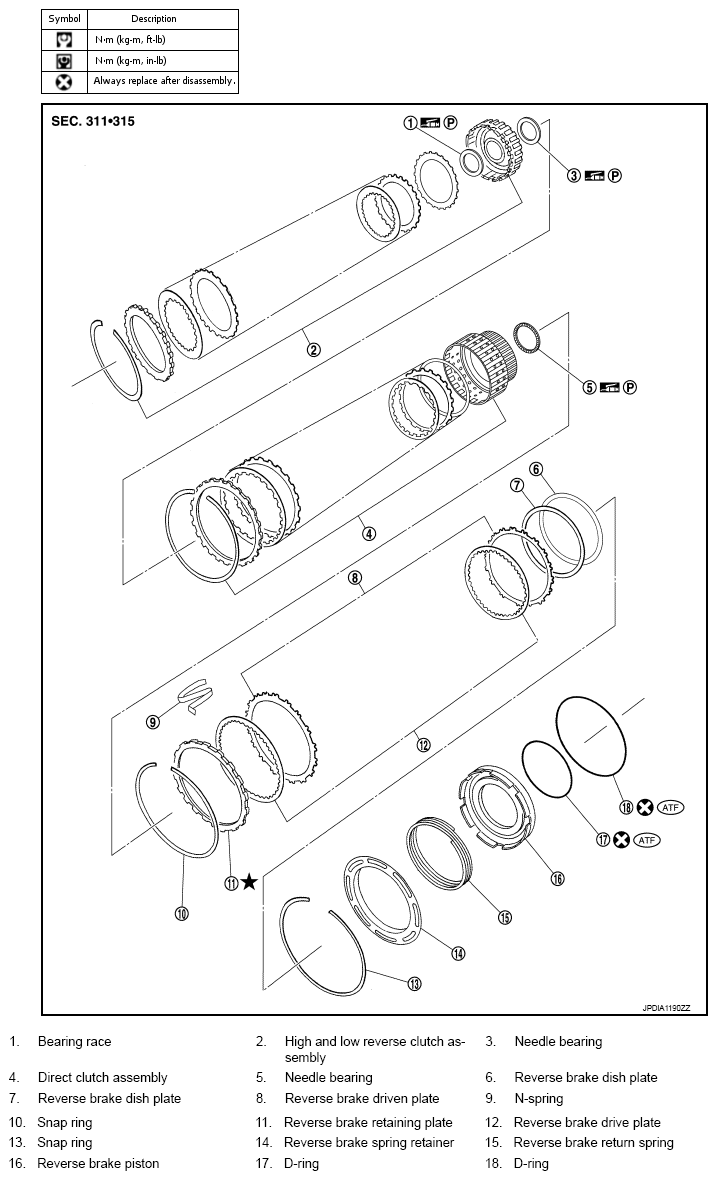

Fig 1: Disassembled View Of Transmission Assembly With Torque Specifications (AWD Models, 1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

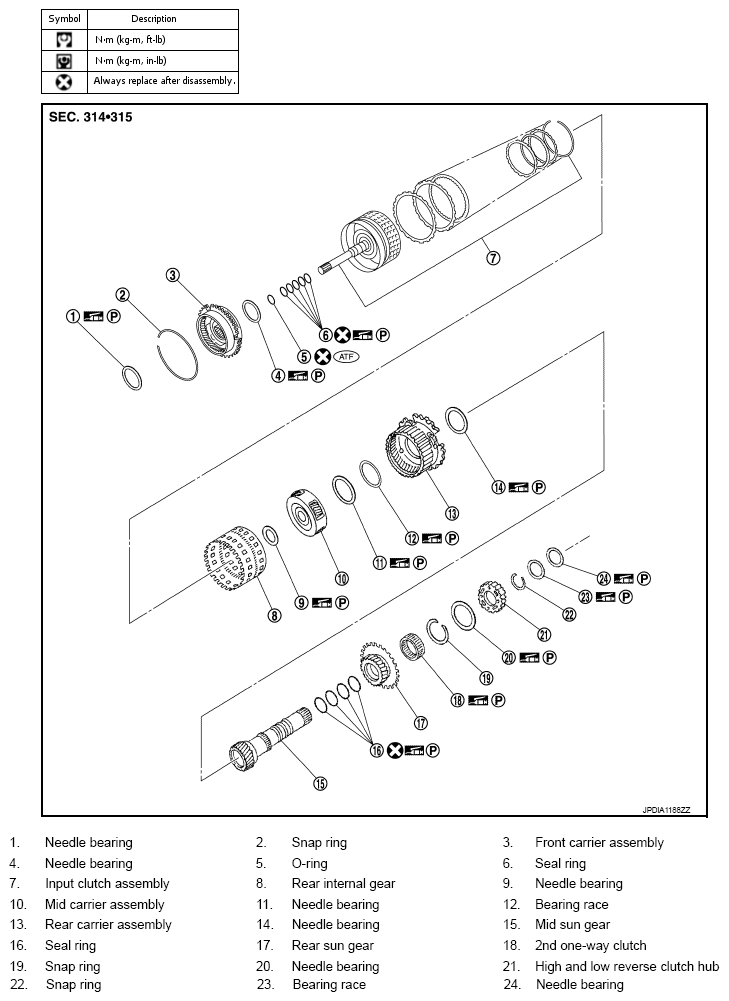

Fig 2: Disassembled View Of Transmission Assembly (AWD Models, 2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

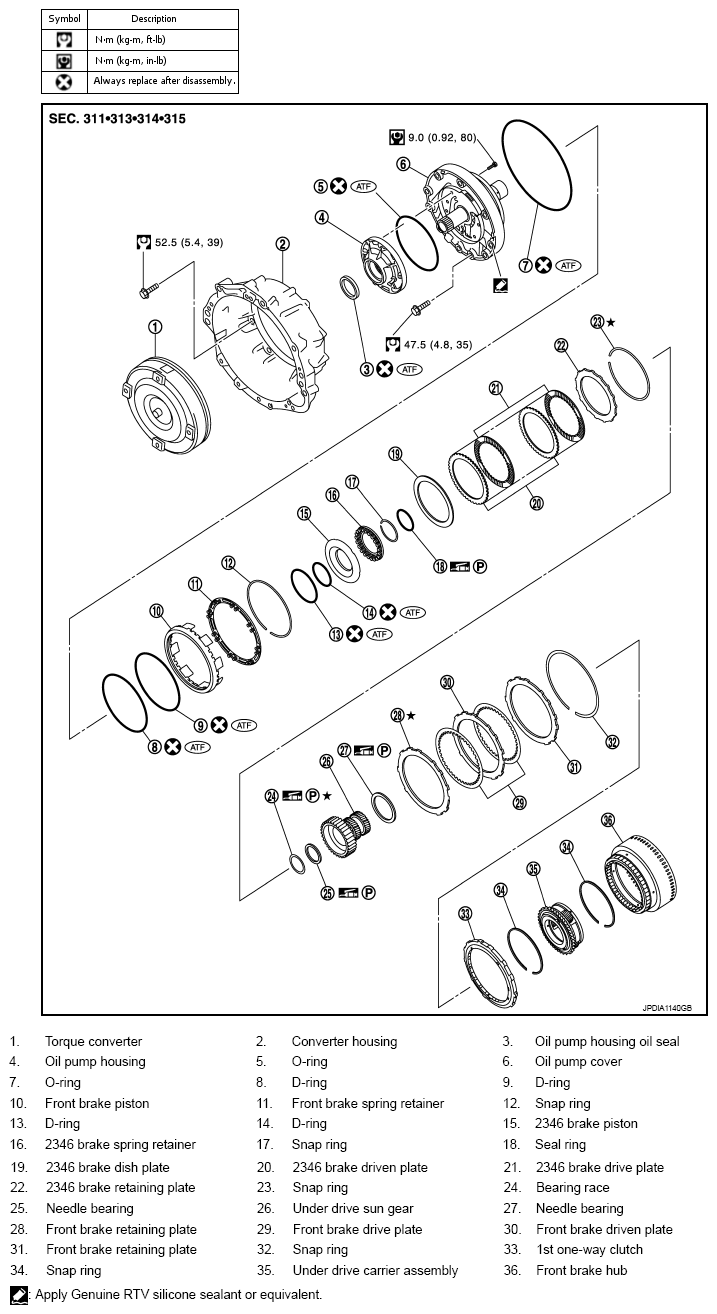

Fig 3: Disassembled View Of Transmission Assembly (AWD Models, 3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

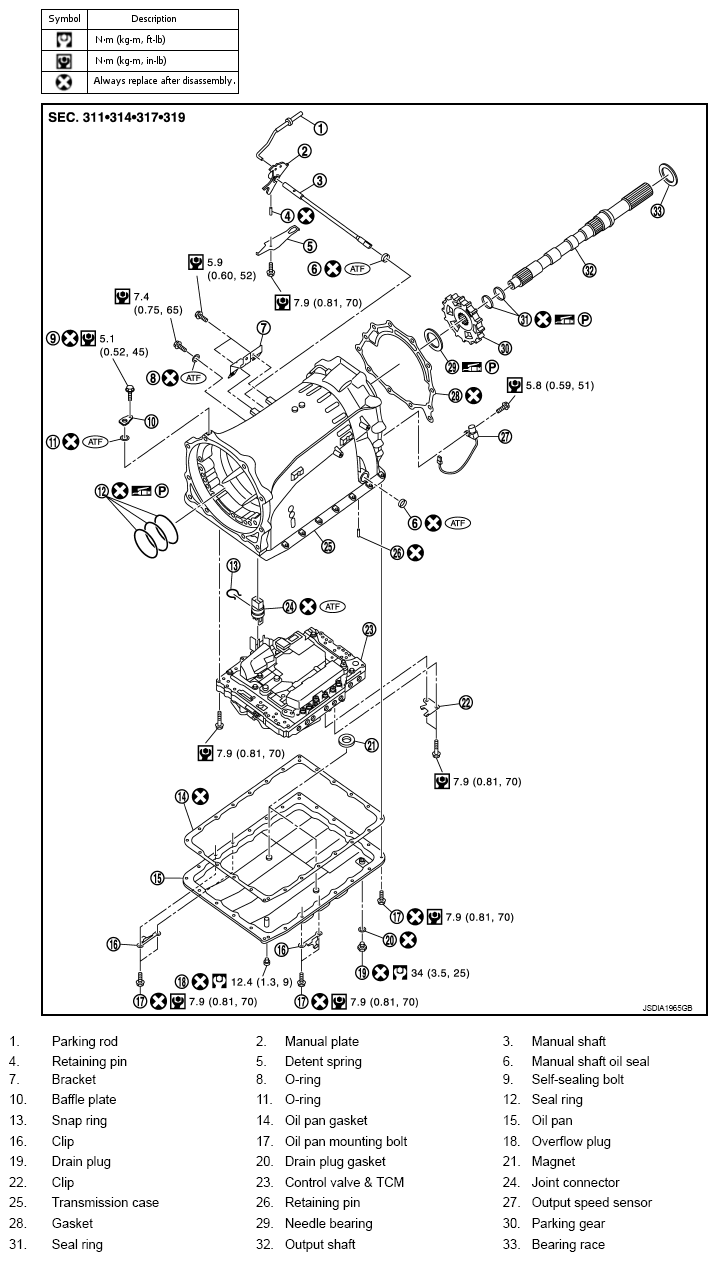

Fig 4: Disassembled View Of Transmission Assembly With Torque Specifications (AWD Models, 4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

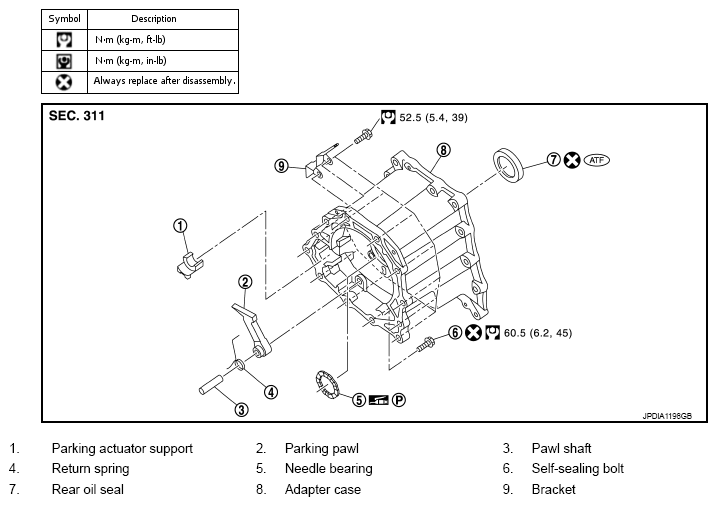

Fig 5: Disassembled View Of Transmission Assembly With Torque Specifications (AWD Models, 5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
